1.5MW Natural Engine Generator Power Plant
High quality
Long usage life
Easy operation
Low maintenance cost
High intelligence with low engine speed
Low fuel consumption
Low gas quality requirement
Tough environmental adaptability
High stability and low fluctuation

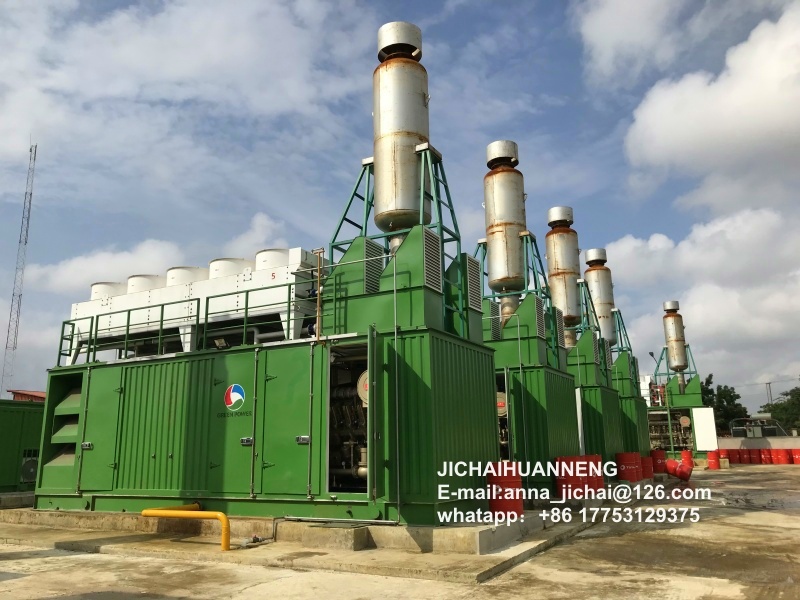

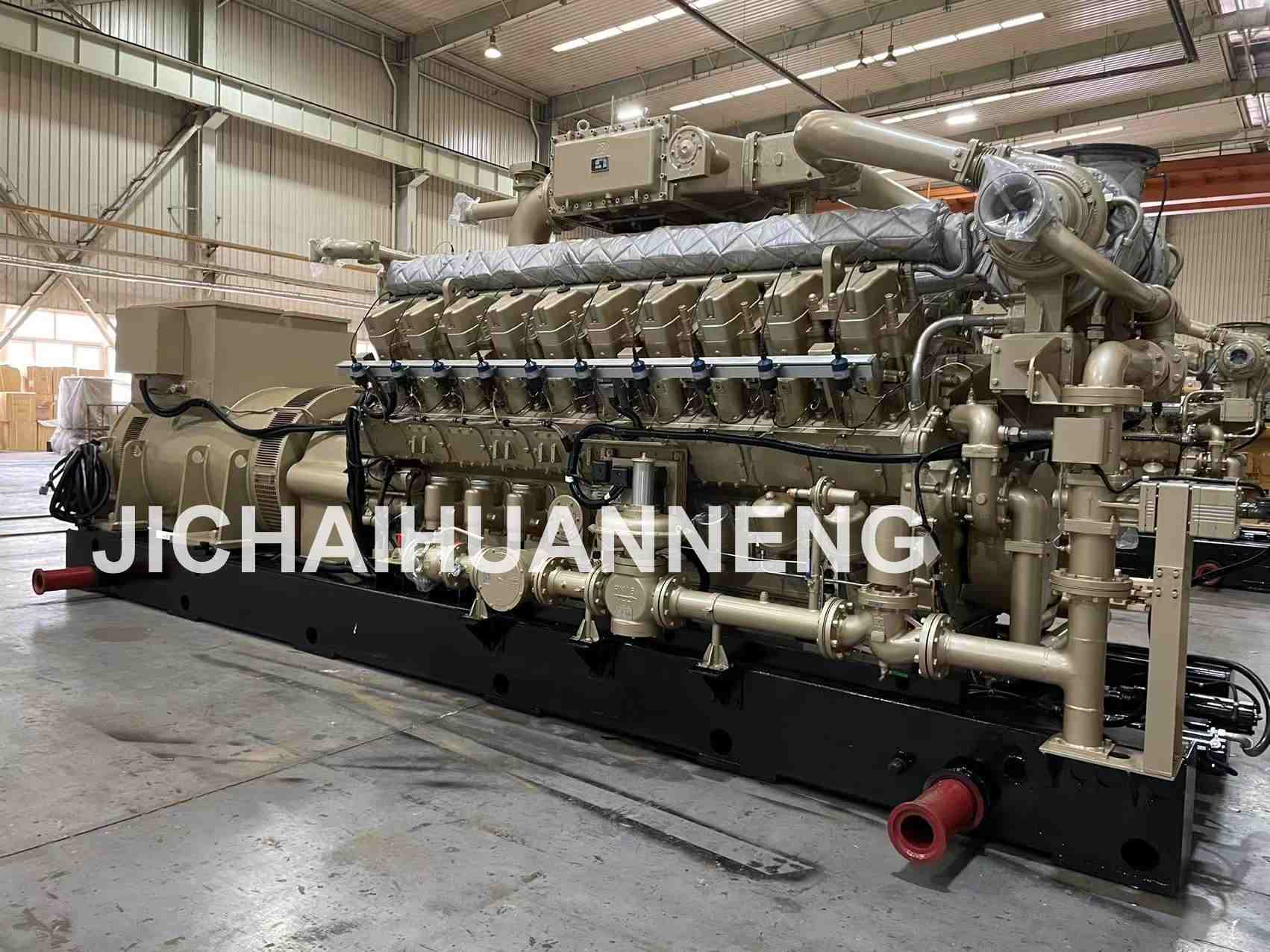

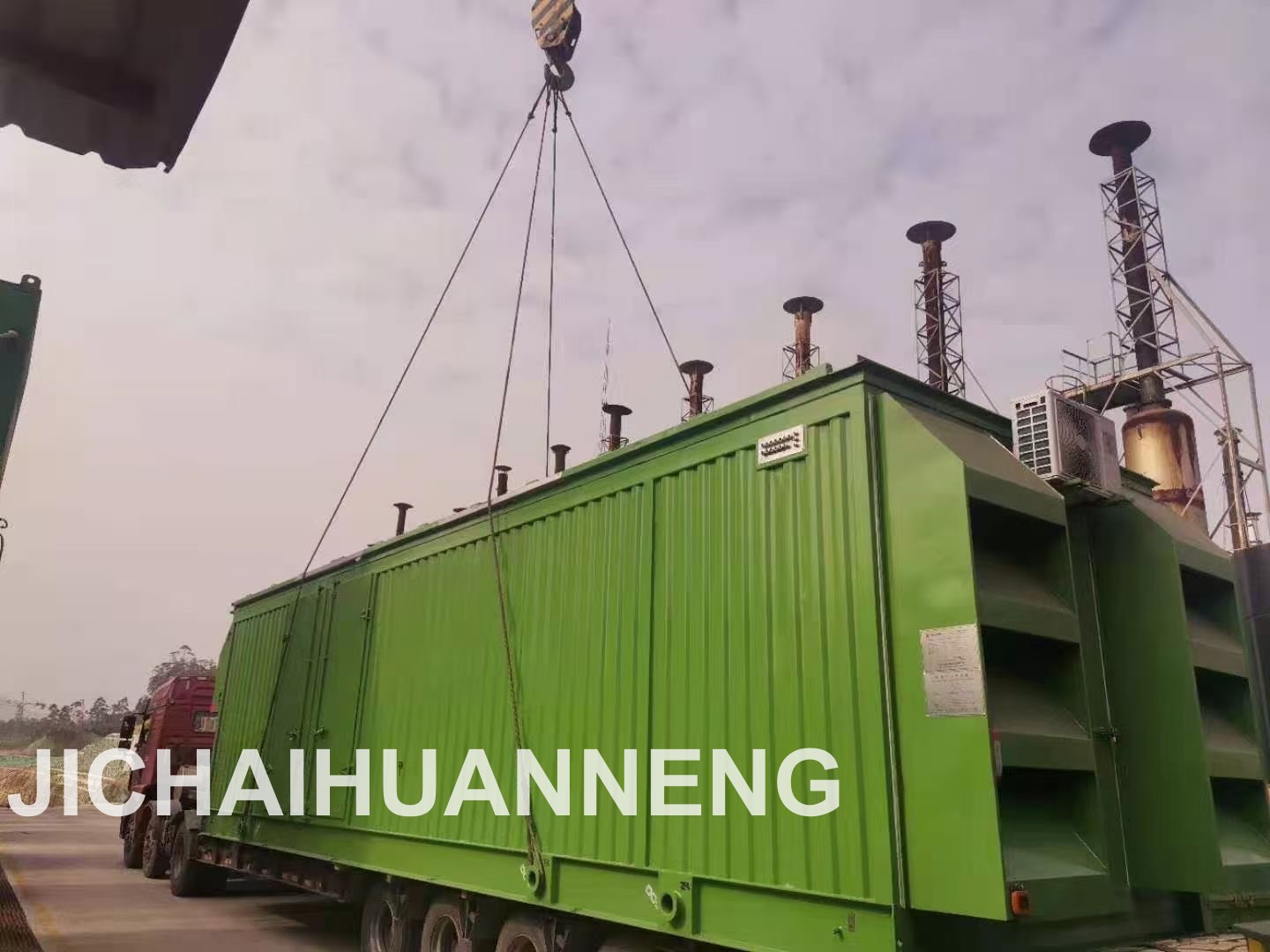

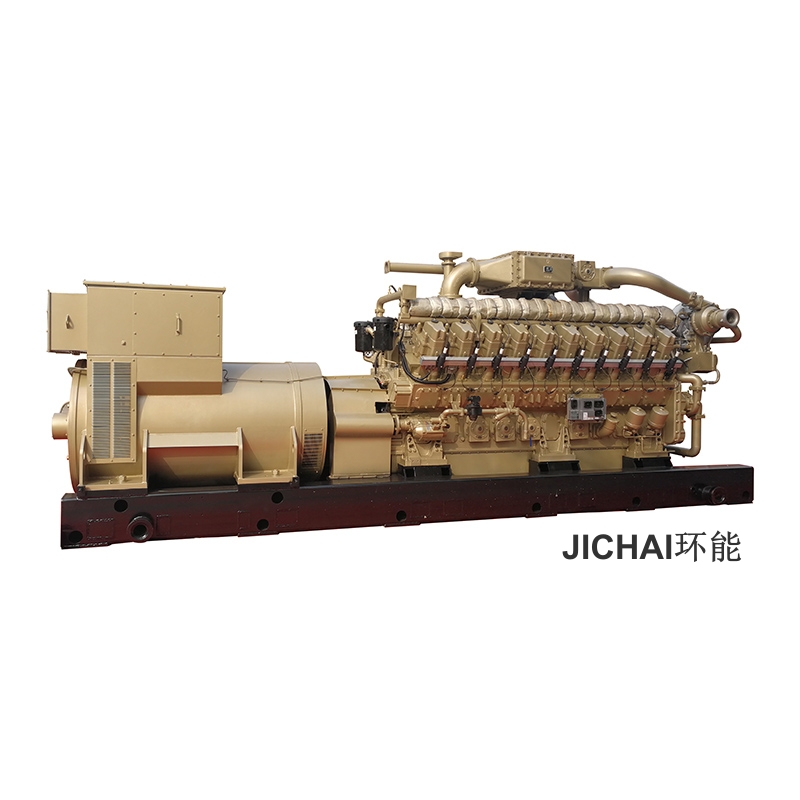

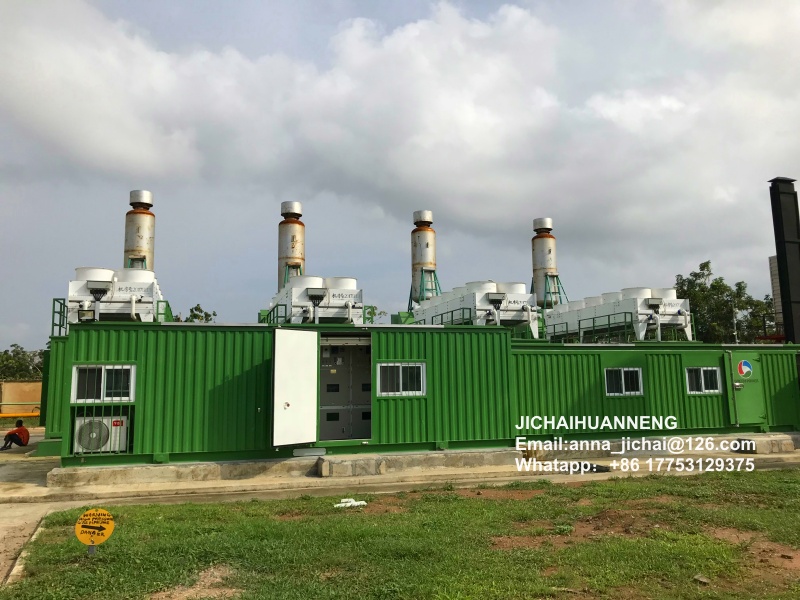

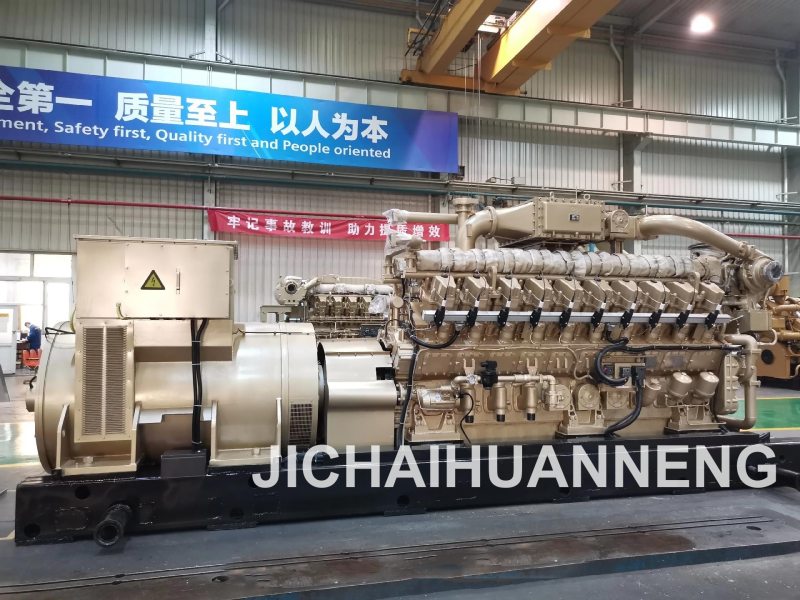

2000GF10-T(2000kW) natural gas generating set are powered by model L20V190ZLT-1 gas engine produced by our company. Complying with National Standard "GB2820 General Specification for Industrial Frequency Diesel Generating Sets(eqv ISO 8528)" and with reference to "IEC34-I" rotary generator standard, the sets are equipped with high quality alternator of both home & abroad and self-made control panel according to customers requirement.Engine Design

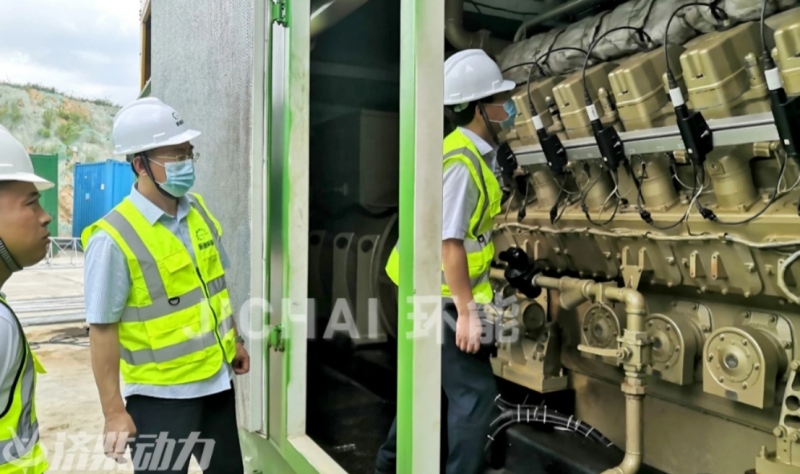

This natural gas generator adopts -L20V190ZLT-1 engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 20V gas engine. L20V190ZLT-1 electrical control and external mix engine owns speed 1000r/min, single unit power 2200kW.
L20V190ZLT-1 natural gas engine is adopted advanced governor of American WOODWARD Company. It is the engine that mixes air and fuel before turbocharger. The power performance, fuel economy and reliability of the gas engine reach world advanced level by adopting world advanced outer mixing mode, electronic control technology and lean-burnt strategy.
This genset have the features of accurate voltage regulating, good dynamic performance, less voltage waveform distortion, high efficiency, compact structure, easy to maintain, low speed, reliable and long-life operation and cost-effective.With large power reverse, the engine can be used to assemble 2000kW natural gas generator set and equipped machinery. It owns 40.4% generation efficiency, low maintenance cost and yearly 8000 running hours.
Jichai Brand generating set is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adoptability, high stability and low fluctuation. The generating set is desirable for industrial power solution. The genset can either transfer electricity directly to load or be combined in a power station with two or more than two sets. They can be used as normal and stand-by power in oil field, factory, resource development base, etc.
2.Technical specifications of 20V190 gas generator set
2.1 Main technical specifications of gas generator set
Model of genset | 2000GF9-T |
Model of engine | L20V190ZLT-1 |
Model of alternator | 1FC6 series |
Connecting method | Flexible connecting |
Rated speed (r/min) | 1000 |
Rated power (kW/kVA) | 2000/2500 |
Rated voltage (V) | 10.5kV |
Rated frequency (Hz) | 50 |
Rated power factor | 0.8(lagging) |
Voltage regulation | AVR |
Supply mode | 3-phase, 4-wire |
Governor | Electrical controller (WOODWARD) |
Control model | Remote electric control, Hand control |
Aspiration | Turbocharged-After cooled |
Speed Control | Electronic Speed governing |
Starting method | 24V DC motor or Pneumatic motor |
Cooling method | Water cooling |
Genset efficiency | ≥40.4% |
Connection model | |
Stabilized voltage regulation | <±2.5% |
Voltage fluctuation | ±0.5% |
Instantaneous voltage regulation | -15%~+20% |
Voltage recovery time | 1.5s |
Stabilized frequency regulation | 0~5%(Adjustable ) |
Frequency fluctuation | 0.5% |
Instantaneous frequency regulation | ±10% |
Frequency recovery time | 7 s |
Overall dimension | 8452×2180×2540 |
Net weight (kg) | 25000 |
2.2 Main technical specifications of engine
Model of engine | L20V190ZLT-1 |
Rated power(kW) | 2200 |
Rated speed (r/min) | 1000 |
No. of cylinder and layout | 20-cylinder, 60°V type |
Type | Four-stroke, water cooled, turbocharged and after-cooled, pre-mixed |
Type of combustion | Lean burn |
Gas pressure(bar) | 1~4 |
Special fuel consumption(kJ/kW.h) | ≤9000 |
Specific oil consumption (g/kW.h) | ≤1 |
Type of lub-oil | KCN 7805 (sulfur content<=200mg/m3) |
Idle speed (r/min) | 700 |
Bore (mm) | 190 |
Stroke (mm) | 255 |
Total displacement (L) | 144.6 |
Exhaust temperature (ºC) | ≤620 |
Direction of rotation | Counter-clockwise(facing to flywheel) |
Lubrication method | Pressure and splash lubrication |
Overhauling (h) | ≥36000 |
Starting method | Air motor starting |
Oil consumption | ≤0.3g/kW·h |
Level of noise on rated power | 105 dB(A) |
Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, Atmospheric pressure at 100kPa and Relative humidity at 30%). Site rating and fuel consumption should amend according to relative standard (The table at right side for reference )
2.3.Main technical specifications of alternator
Type | 1FC6 series |
Rated power (kW/kVA) | 2000/2500 |
Rated voltage (V) | 10.5kV |
Rated currency | 137.45A |
Rated frequency (Hz) | 50 |
Power factor | 0.8 (lagging) |
Excitation model | Brushless |
Wiring method | 3-wire, 4-phase |
Number of pole | 6 |
Rated speed | 1000 r/min |
Connection method | Y |
Insulation grade | H |
Altitude | ≤1000m |
Insulation class | Class F |
Protection class | IP23 |
Cooling | Fan cooling |
Ventilation method | Self-ventilation |
Excitation mode | (AVR) |
Bearing type, No. | Rolling bearing, 2 Pcs |
Main performance index | |
Stable voltage regulating rate | Single running: ±1% |
Instantaneous voltage regulating rate | -15%~+20% UN |
Over load | 1 hour operation time at 110% rated power (6 hours as a cycle) |
Over current multiple | 1.5IN, 2 minutes |
Ability of maintain short-circuit current | The excitation system can provide continuous current of three times of rated current, duration 5s, the alternator must be unloaded. |
3. Required conditions by natural gas generator set
3.1 Requirements for fuel gas
In order to ensure its reliable and stable operation of the generator set, the requirements for the natural gas quality is as follows:
--Natural gas should be dehydrated without any water, crude oil & clean oil
--Natural gas pressure 100~400kPa;
--Natural gas temperature -20~40ºC;
--Total sulfur content less than 200mg/m3
Note: Gas volume is under standard condition with 100kPa atmosphere, 20ºCambient temperature,30% relative moisture.
3.2 Requirements for cooling water
Soften water is required by high temp and low temp engine circulation system. Cooling water should be lightly alkaline clean water without any corrosive compound, such as chloride,sulfate or acid etc. The main index requirements are as follows:
Hardness | 0.7~5.3me/L |
Chloride ion content | <150mg/L |
PH value | 7~8.5 |
3.3 Requirements for lubricant
Engine is equipped with complete lubrication system, with oil consumption≤0.3g/kW·h. Lubricant model: Mobil Pegasus 705 or 15W40CD.
3.4 Requirements for environment
gas generator set can run steadily, reliably, continuously under following condition: ambient temperature between -40ºC~+40ºC,relative moisture<90%,sea level elevation≤2000m. The generator can output rated power under standard environmental conditions:atmosphere pressure 100kPa, ambient temperature25ºC, air relative moisture 30%.
4. Characteristics of Control system
4.1 American WOODWARD E6 control system
The E6 control system consists of hardware and software, including LECM controller,TecJet valve,ProAct valve,oxygen sensor and various other sensors. Software is a program installed in a computer that is connected to the hardware by a data wire. The operator controls the action of the hardware by operating the computer and sending instructions to the hardware.
4.2 Advantages of E6 control system:
E6 control system has perfect uniformity.Previous control systems include air-fuel ratio control system,speed regulation system,instrument monitoring system,ignition system and knock control system,etc. There are many kinds and poor uniformity. E6 control system integrates various independent control modules to realize various functions.
LECM controller is the control unit in E6 control system, which adopts the design method combining modularization and integration.
Modularization: LECM controller consists of three modules: main control module,EID module and auxiliary module. Each module has its own CPU and memory.
Integration: LECM controller can be used by two or three integration between the three modules. After integration, each module can share sensors such as speed and phase, and the data can be Shared through internal bus interconnection.
5. Characteristics of Control panel
5.1 local control panel
Main functions of local control panel: The main configuration of local control screen includes: 15-inch touch screen (HMI), button, switch, indicator light, generator management module, network switch, etc.
HMI is mainly responsible for collecting and displaying the parameters of E6 control system,monitoring instrument,unit management module and generator excitation system. Starting,closing,loading and unloading of the unit can be controlled by HMI. Alternator management module can automatically check the synchronization, meet the requirements of grid-connected control, and can dynamically display the operation of the unit, with the measurement and protection of various electrical parameters of the unit, operation parameter query, alarm information query, historical data query and other functions, to ensure the safe and reliable operation of the generator set.
The local control panel is equipped with imported (COMAP, Heinz or Denver) automatic paralleling /grid module and paralleling/grid selective button, which is easy for users to adjust the power supply flexibly. If the paralleling function is selected, five sets may realize the automatic paralleling and automatic load sharing; if parallel function is selected, the automatic paralleling of single unit and the setting of system power can be realized. The automatic module is equipped with the LED display, with Chinese operation interface. The running status of whole system may be displayed realtime, with the functions of measurement and protection for various electrical parameters of unit and varies of running parameters, alarming information and historical data to ensure the safety and reliable running of generator set. The module has telecommunication interface.
The revolving speed and voltage of genset can be adjusted automatically by electronic speed control system and excitation system, and can also adjust the RPM potentiometers and voltage knob. The control panel is equipped with a float charging device, which can utilize the self-generation of the generator set to charge the battery that supplies power to the control panel.
The control panel may monitor the following parameters:
Three-phase AC voltmeter |
|
|
|
|
|
|
|
|
|
|
|
|
|
3. Required conditions by natural gas generator set
3.1 Requirements for fuel gas
In order to ensure its reliable and stable operation of the generator set, the requirements for the natural gas quality is as follows:
--Natural gas should be dehydrated without any water, crude oil & clean oil
--Natural gas pressure 100~400kPa;
--Natural gas temperature -20~40ºC;
--Total sulfur content less than 200mg/m3
Note: Gas volume is under standard condition with 100kPa atmosphere, 20ºCambient temperature,30% relative moisture.
3.2 Requirements for cooling water
Soften water is required by high temp and low temp engine circulation system. Cooling water should be lightly alkaline clean water without any corrosive compound, such as chloride,sulfate or acid etc. The main index requirements are as follows:
Hardness | 0.7~5.3me/L |
Chloride ion content | <150mg/L |
PH value | 7~8.5 |
3.3 Requirements for lubricant
Engine is equipped with complete lubrication system, with oil consumption≤0.3g/kW·h. Lubricant model: Mobil Pegasus 705 or 15W40CD.
3.4 Requirements for environment
gas generator set can run steadily, reliably, continuously under following condition: ambient temperature between -40ºC~+40ºC,relative moisture<90%,sea level elevation≤2000m. The generator can output rated power under standard environmental conditions:atmosphere pressure 100kPa, ambient temperature25ºC, air relative moisture 30%.
4. Characteristics of Control system
4.1 American WOODWARD E6 control system
The E6 control system consists of hardware and software, including LECM controller,TecJet valve,ProAct valve,oxygen sensor and various other sensors. Software is a program installed in a computer that is connected to the hardware by a data wire. The operator controls the action of the hardware by operating the computer and sending instructions to the hardware.
4.2 Advantages of E6 control system:
E6 control system has perfect uniformity.Previous control systems include air-fuel ratio control system,speed regulation system,instrument monitoring system,ignition system and knock control system,etc. There are many kinds and poor uniformity. E6 control system integrates various independent control modules to realize various functions.
LECM controller is the control unit in E6 control system, which adopts the design method combining modularization and integration.
Modularization: LECM controller consists of three modules: main control module,EID module and auxiliary module. Each module has its own CPU and memory.
Integration: LECM controller can be used by two or three integration between the three modules. After integration, each module can share sensors such as speed and phase, and the data can be Shared through internal bus interconnection.
5. Characteristics of Control panel
5.1 local control panel
Main functions of local control panel: The main configuration of local control screen includes: 15-inch touch screen (HMI), button, switch, indicator light, generator management module, network switch, etc.
HMI is mainly responsible for collecting and displaying the parameters of E6 control system,monitoring instrument,unit management module and generator excitation system. Starting,closing,loading and unloading of the unit can be controlled by HMI. Alternator management module can automatically check the synchronization, meet the requirements of grid-connected control, and can dynamically display the operation of the unit, with the measurement and protection of various electrical parameters of the unit, operation parameter query, alarm information query, historical data query and other functions, to ensure the safe and reliable operation of the generator set.
The local control panel is equipped with imported (COMAP, Heinz or Denver) automatic paralleling /grid module and paralleling/grid selective button, which is easy for users to adjust the power supply flexibly. If the paralleling function is selected, five sets may realize the automatic paralleling and automatic load sharing; if parallel function is selected, the automatic paralleling of single unit and the setting of system power can be realized. The automatic module is equipped with the LED display, with Chinese operation interface. The running status of whole system may be displayed realtime, with the functions of measurement and protection for various electrical parameters of unit and varies of running parameters, alarming information and historical data to ensure the safety and reliable running of generator set. The module has telecommunication interface.
The revolving speed and voltage of genset can be adjusted automatically by electronic speed control system and excitation system, and can also adjust the RPM potentiometers and voltage knob. The control panel is equipped with a float charging device, which can utilize the self-generation of the generator set to charge the battery that supplies power to the control panel.
The control panel may monitor the following parameters:
Three-phase AC voltmeter |
|
|
|
|
|
|
|
|
|
|
|
|
|
5.2 Local PLC and background monitor & control system (Optional)
Remote control console is consisted by 15 "touch screen (HMI) ,it has the same function as the local control panel. The remote control panel communicates with the local panel through RJ45, and RS485 communication interface is reserved for the user.
5.2.1 PLC centralized control panel:
Local PLC centralized control panel is set in the container to control radiator, ventilation and power distribution of the container. Moreover, PCL centralized control panel can collect, display and store the operating parameters and status of the engine thermal parameters, generator electrical parameters, unit auxiliary equipment, etc.
The air switches, relays, thermal relay protectors, buttons, indicator lights, and terminals in the centralized control cabinet are selected from domestic and foreign first-line brand products.
5.2.2 Background monitoring unit:
Main configuration and functions of background monitoring: it is composed of monitoring computer, monitor, mouse, keyboard, printer, communication equipment and uninterruptible power supply UPS. It provides a full-station computer monitoring system for the operation, operation and protection of the entire power plant. Engines, generators, cooling systems, machine room ventilation fans, gas fire alarm devices and other systems realize real-time digital monitoring and control operations, historical data storage, query, printing, and abnormal alarms.
The operation platform of the background monitoring system is placed in the user monitoring duty room, which is convenient for monitoring the operation of the unit. The monitoring interface can realize bilingual switching between Russian and English. The liquid crystal display, industrial control computer, and the industrial control computer and liquid crystal display are all installed in domestic or international well-known brands, such as Siemens, Heli, Advantech, Advantech, etc. The industrial computer is equipped with CPU no less than i5, 1TG hard disk, 4G memory, and is equipped with keyboard, mouse, printer, etc.
The background monitoring system collects the operating data and status of the units and auxiliary equipment in the centralized control cabinet of each unit in each machine room through network communication. The Ethernet communication interface is reserved for remote transmission of power plant local data to the GPP DCS system.
The background monitoring system supports the ability of simultaneous monitoring of generator sets and their auxiliary equipment, and can record and store the collected data, and store and record historical data of not less than 2 years, and the historical data supports the functions of querying, printing, and exporting by time.
The background monitoring system is configured with an AC UPS system. When the normal AC power supply is interrupted, the UPS will supply power to the background monitoring power supply that requires continuous power supply. The UPS shall continue to supply the rated capacity for not less than 60 minutes, which requires reliable quality.
Monitor each GE to collect thermal and electrical parameters, and distinguish them by numbers, curves, histograms, and different colors to form a friendly human-machine interface.
5.2.3 Genset abnormal alarm:
When the important operating parameters of the generator set exceed the safe operating limits, the system will automatically send out sound and light alarm prompts, and automatically mute the sound after the fault is removed. At the same time, it supports manual mute function. The content of the alarm uses color change, pop-up, sound, flashing lights, etc. to remind the staff on duty.
6. Characteristics of Cooling System

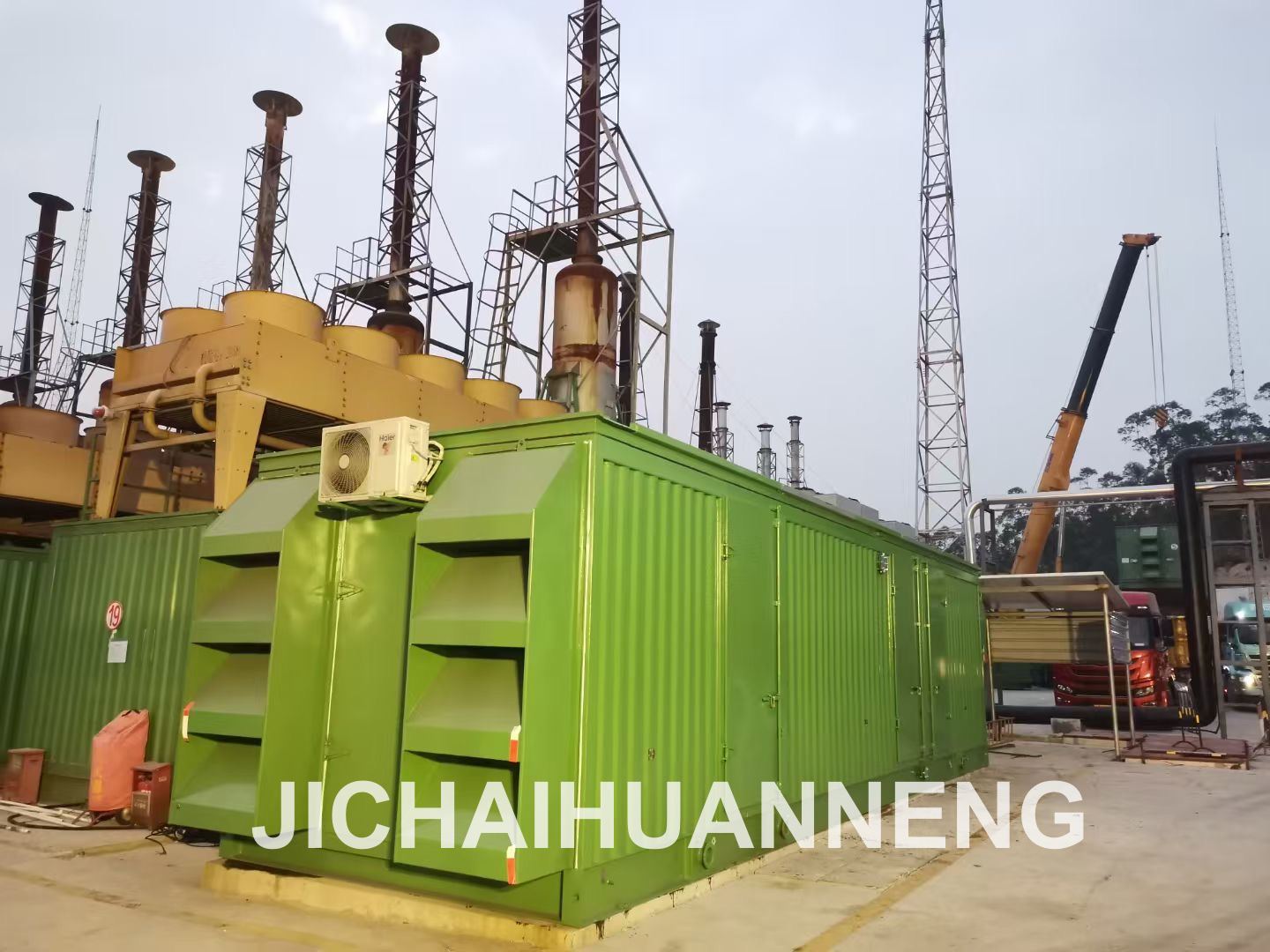

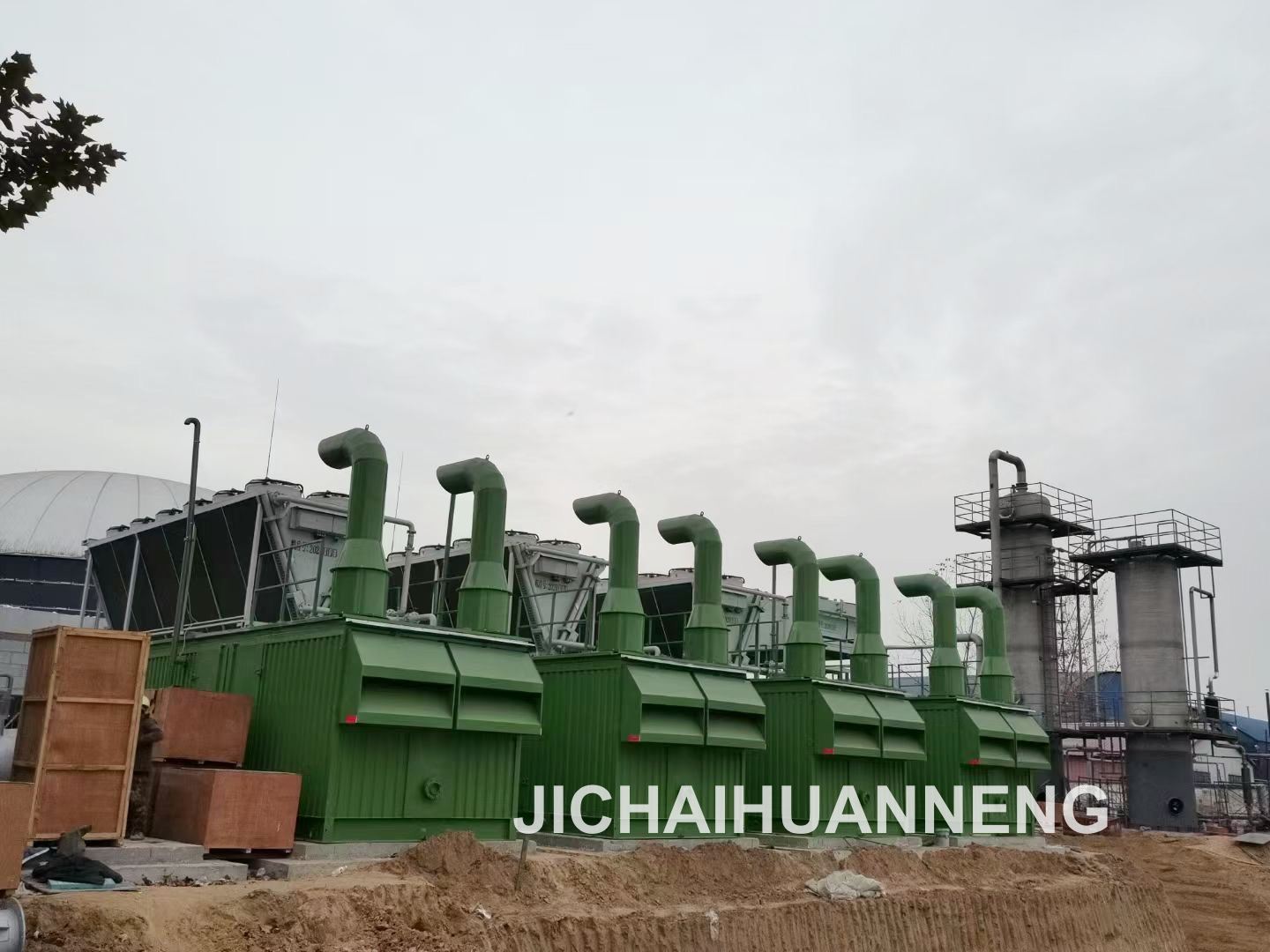

2000kW Gas generator set adopts closed circulation flat bed radiator. This radiator owns low consumption and high efficiency characteristics. Shown as the above picture, this flat bed radiator is equipped with 10 fans and independent motors and consists of control system, motor driving device, electric fan, radiator and base. This control system owns air blower automatic start and stop function.
Reference Flow Diagram of Cooling System
Generator set is equipped with a set of horizontal radiators which are used for cooling of high temperature system (cylinder liner and primary inter-cooling of the inter-cooler) and low temperature system(secondary inter-cooling of the inter-cooler and lubricating oil cooler) of the engine.
The cooling water pipeline between the horizontal radiator and the GE is produced and installed on site, and each GE is equipped with a high-temperature water temperature control valve at the factory to meet the high-temperature water cooling temperature requirements.
The horizontal radiator is equipped with a terminal box. The complete wiring of the cable from the terminal box to the cooling fan, temperature sensor and expansion water tank liquid level sensor is complete.
If you having cooling tower in your project as above,there is no needed for horizontal radiator.
7. Characteristics of Lubrication system Ensure reasonable and low oil consumption.The lubricating method is pressure and splash lubrication, the pressure in the main oil pipe is 500 to 800 KPa. The oil pump is outer type which is convenient to maintenance and the manual oil pump and electric pre-oiling pump is also equipped. Oil cooler and oil pressure low alarm and shutdown equipment is installed to protect the operation of genset.
With a automatic recharging oil device to realize manual/automatic switch.
The oil pump is installed on the oil inlet of the oil pan of each set. Electric control is used for the pump. There is an oil level gauge on the oil pan of each set. It outputs a switching value signal respectively when oil level of the oil pan is low or high. When control system monitors low oil level, oil supply pump will automatically run and fill oil to the oil pan; when control system monitors high oil level, it can stop filling oil automatically. If the oil pump is not closed, it gives alarm prompt and starts oil returning pump. Meanwhile, when oil level of oil storage tank is lower than set value, it gives sound and light alarm signal to warn the user to fill oil to oil storage tank.
7.1 Reference Flow Diagram of Lubrication system
7.2 Lubricating tank(optional):
Fresh oil tank 10 m3;
Used oil tank 10 m3;
The oil tank can realize manual filling oil. In addition, electric filling oil joint is reserved;
The oil tank is requested to send oil level alarm signal;
It can display oil level in normal condition;
Make sure to consider oil discharge and cleaning of oil tank during design.
Oil charging pipe: It provides all pipelines from lubricating can to oil pan of the unit.
Oil pump: Every unit is equipped with two oil pumps. One set is gasoline pump and the other set is oil returning pump.
7.3 Control box:
PLC controller is assembled in the control box. Thus, it can realize logical relation between refueling and oil expulsion accurately and realize manual/automatic refueling; it has the function of oil level alarm (including oil pan and lubricating can).
