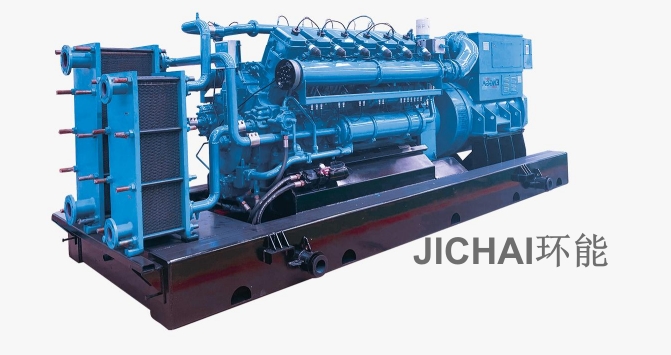

700kW Syngas Generator Set
In terms of gas transportation,the inlet pipe is equipped with explosion-proof door to ensure the safety of gas transportation；unit protection，overspeed，low oil pressure,over current，over pressure，high cylinder temperature，high discharge temperature，reverse power protection is perfect.
700kW SYNGAS GENERATOR SET TECHNICAL SPECIFICATION
Rated power | 700kw |
Rated voltage | 400/6300/10500 |
Rated speed | 1000rpm |
Rated frequency | 50Hz |
Type | Four stroke,water cooled,turbocharged and intercooled,spark plug ignition |
Cylinder arrangement | V style 60°included angle |
Number of cylinders | 12 |
Bore（mm） | 190 |
Rated power factor | 0.8 lagging |
Voltage regulation | Automatic |
Supply connecting | 3 phase 4 wire |
Control model | Remote electric control,Hand control |
Starting method | 24V DC electric starting motor |
Cooling method | Flat bed radiator or cooling tower |
After-Sale Service
1. Professional engineers provide pre-sales technical consultation for users
2. Cooperate with users to install and debug the unit
3. Maintenance engineers are available to provide technical assistance
