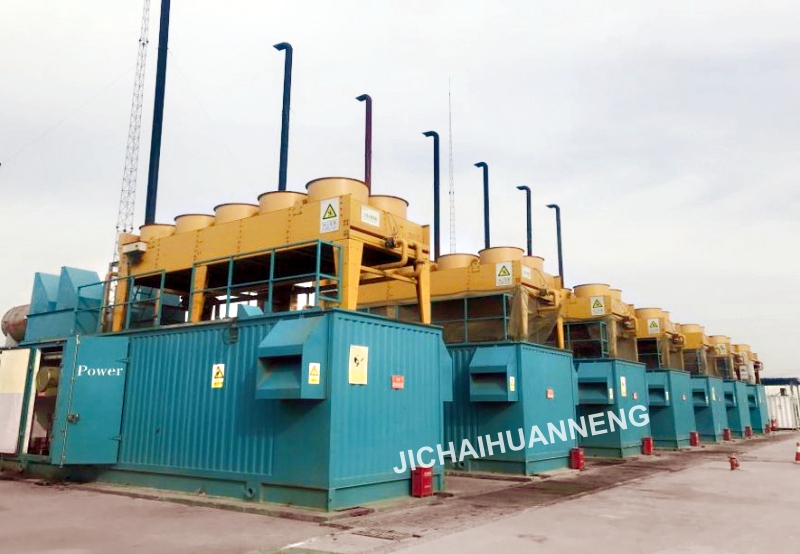

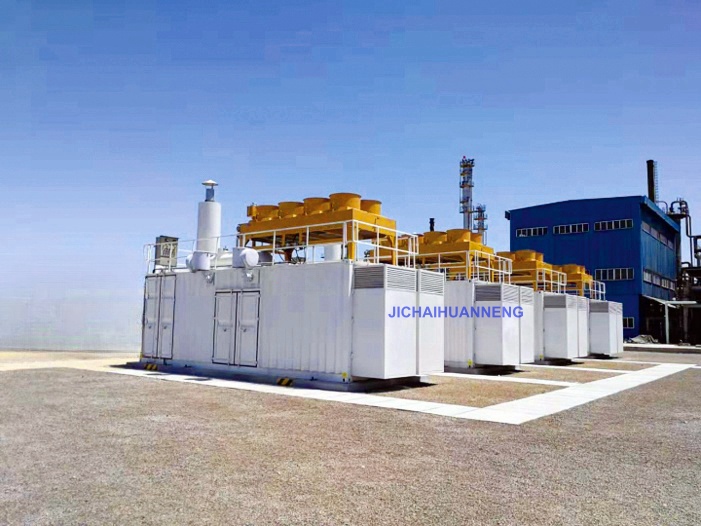

1MW Gas Piston Power Plant
Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.
Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.
Detail

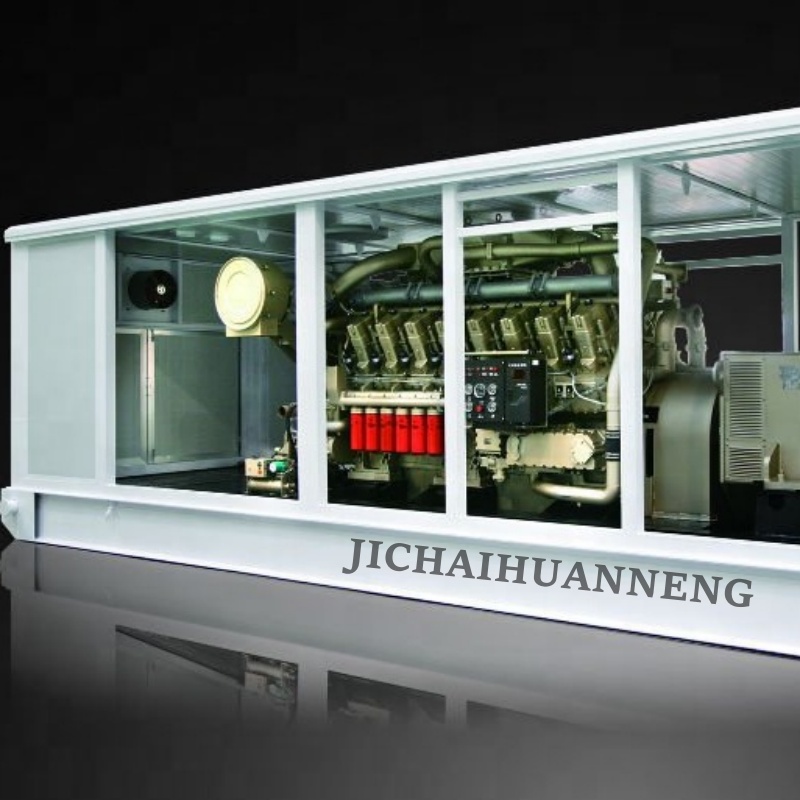

Main specification of gas generator
Generator Set Model | 1000GF-T |
Rated Power | 1000 kW |
Rated Voltage | 400 /6300/10500V |
Rated Speed | 1000 /1200rpm |
Rated Frequency | 50/60 Hz |
Oil Consumption | ≤0.3 g/kW·h |
Heat Consumption | ≤9500 kJ/kW·h |
Rated Power Factor | 0.8 (Lag) |
Alternator Model | Siemens JFG series |
Starting Method | Electrical starting |
Operation Mode | Remote electrical control |
Voltage Adjustment Method | Automatic |
Governor Mode | Electric governor |
Cooling Method of Genset | Forced water cooling |

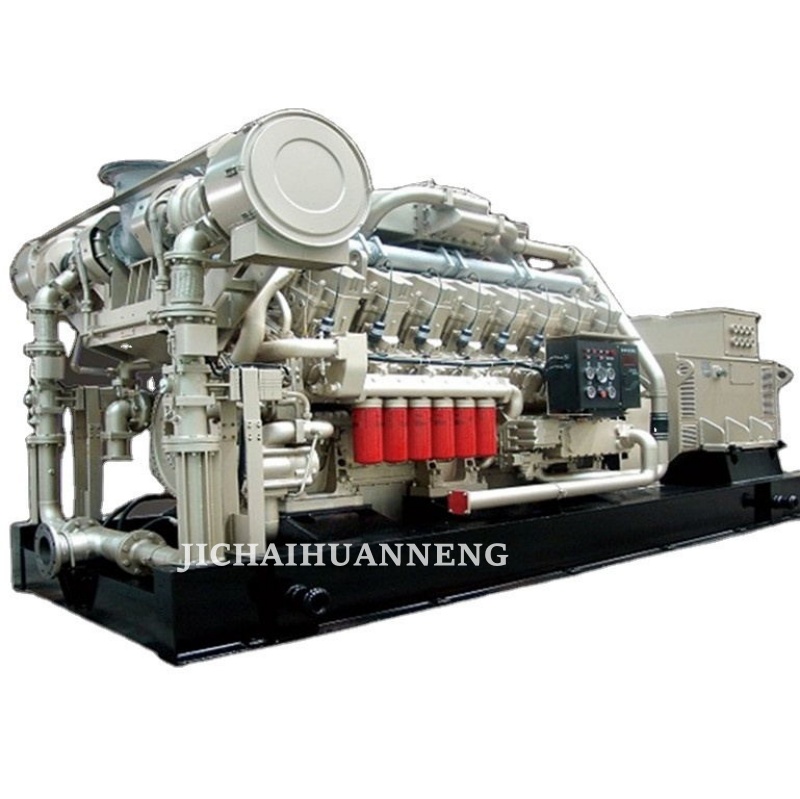

Technical Specification of Engine
Name | H16V190ZLT-2 |
Type | Four stroke, water cool, turbocharger inter-cooler, air-fuel ratio control,spark plug ignition, electrical control, external mix. |
Cylinder Arrangement | V type, 60°angle |
Number of Cylinder | 16 |
Cylinder Diameter | 190 mm |
Piston Stroke | 215 mm |
Total Displacement | 97.53 L |
Rated Speed | 1000 r/min |
Idle Speed | 700 r/min |
Rated Power | 1320 kW |
Piston Average Speed | 7.17 m/s |
Natural Gas Pressure | 7～9 kPa |
Exhaust Temperature before Turbo | ≤680 ℃ |
Output Water Temperature | ≤90 ℃ |
Intercooler Input Water temp | ≤45 ℃ |
Lube Oil Temperature | ≤90 ℃ |
Stable Regulating Speed Rate | 0～5% Adjustable |
Lube Oil Model | Mobil Pegasus 705 |
Cooling System | Forced water cooling |
Lubrication Method | Pressure lubrication and splash lubrication |
Starting Method | Electrical motor starting |
Crane-shaft Direction | Anti-clockwise (see from flywheel side) |
Technical Specification of Alternator
Model | Siemens series |
Rated Power | 1000 kW |
Rated Voltage | 400/6300/10500V |
Rated Frequency | 50/60 Hz |
Power Factor | 0.8（Lag） |
Rated Speed | 1000/1200 r/min |
Efficiency | 93.9％ |
Connection Method | Three phases and three lines（Y ） |
Excitation Method | Brushless excitation |
Insulation Level | F |
Protection | IP23 |
Cooling Method | Fan cooling（IC01） |
Working System | Continuous working （S1） |
Bearing Structure | Double bearing |
Total Weight | 8700 kg |
88 kgm2 | |
Environment Temperature | ≤40 ℃ |
Altitude | ≤1000 m |
Direction of Rotation | Clockwise (see from alternator side) |
Alternator Leading Line Direction | Left side (See from alternator shaft side) |
After-sale Services
We have a professional engineer service team and well-built network of services for customers across the world. We have also established repair centers and overhaul workshops with CNPC oversea branches. In our major oversea market like Iraq, Iran, Thailand, Bangladesh, Russia, and Nigeria, we have successfully set up sales and service centers, products showrooms, spare parts storage, repair centers and overhaul workshops.
Certification

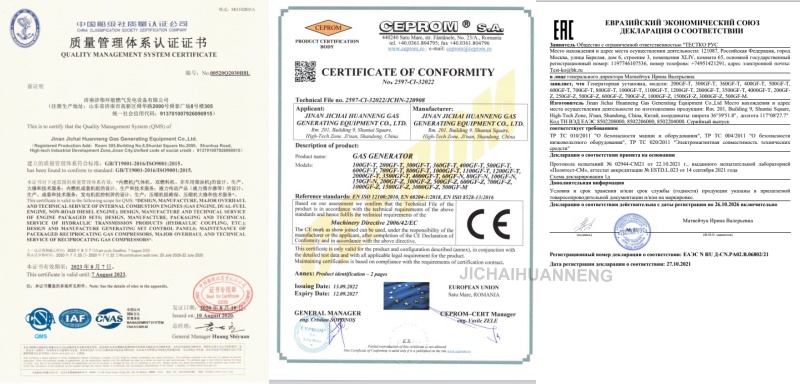

All our generator sets are manufactured, assembled, tested, under strict quality control procedure. The generator set is desirable for industrial power solution. Here are some certificates we have got.
Delivery
