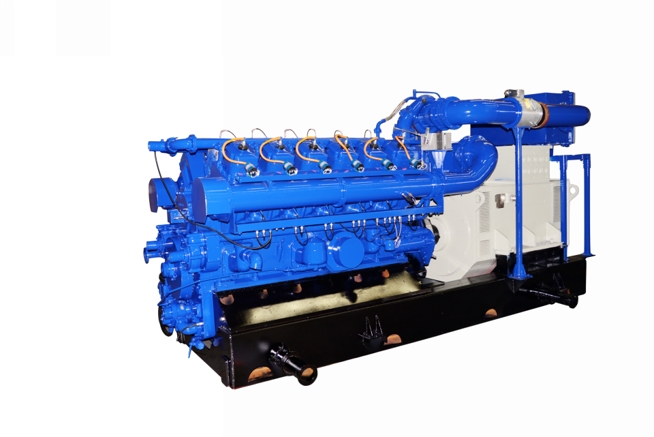

500GF-M Gas Engine Generator
A) The output voltage can be 400V, 6300V, 10500V, reducing the initial investment and running cost.
B) Big bore of 190mm ensures its continuous constant power output.
C) Middle speed of 1000rpm ensures the service life.
D) Easy maintenance and low noise.
We have a deep understanding of China's gas generator, more professional in gas generator selecting, provide professional advice and assistance for the client.
To analysis the project background, choose more suitable and guaranteed products to the customer, enabling a smoother project implementation and the power plant’s reliable operation.
MAIN SPECIFICATIONS OF GAS GENERATOR SET
Model | 500GFM | Gas Engine Model | M12V190ZL | |
Rated power | 500kw | Alternator | synchronous brushless generator | |
Rated voltage | 400 V | Insulation class | F | |
Rated speed | 1000rpm | Voltage regulation | Automatic | |
Rated frequency | 50Hz | Class of protection | IP23 | |
Rated current | 1281A | Cooling method | Water cooling with radiator and fan | |
Power factor | 0.8 Lagging | Dimension (mm) | 5750×2650×2500mm | |
Control mode | Electric control | Net Weight (kg) | 14500 Kg |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
Voltage | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
±2.5% | +20% | 2 S | 1% |
Frequency | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
0-5% adjustable | ≤±10% | < 7 S | 1% |
MAIN SPECIFICATIONS OF GAS ENGINE
Type | M12V190ZL |
Number of cylinders | 12 |
Cylinder Arrangement | Vee,60° |
Cylinder diameter x stroke | 190×210 mm |
Total Displacement | 71.5 L |
Intake Type | Turbocharged and inter-cooled |
Rated Power,kW | 750 |
Rated Speed,r/min | 1000 |
Biogas input pressure,kPa | 5-10 |
Exhaust Temperature before turbocharger,ºC | ≤650 |
SAFETY AND PROTECTION DEVICE OF THE GENSETS
Output voltage too low/too high alarm and stop | Single phase connection trouble alarm and stop |
Frequency too high/too low alarm and stop | Cooling water temp high alarm |
Reverse power alarm and break brake | Lubrication oil temp too high alarm |
Overload alarm and break brake | Lubrication oil pressure too low alarm and stop |
Over speed alarm and stop | Battery voltage too low alarm |
Blast prevention of air inlet and crankcase | Gas leaking protection |
OPTIONAL DEVICE
Steel Soundproof Container (sound attenuated canopy)
CHP/ Cogeneration/CCHP Trigeneration
ATS and Synchronization Parallelling Panel
Oil and Water Heater
After Sale Service
1. Professional engineers provide pre-sales technical consultation for users
2. Cooperate with users to install and debug the unit
3. Maintenance engineers are available to provide technical assistance at any time

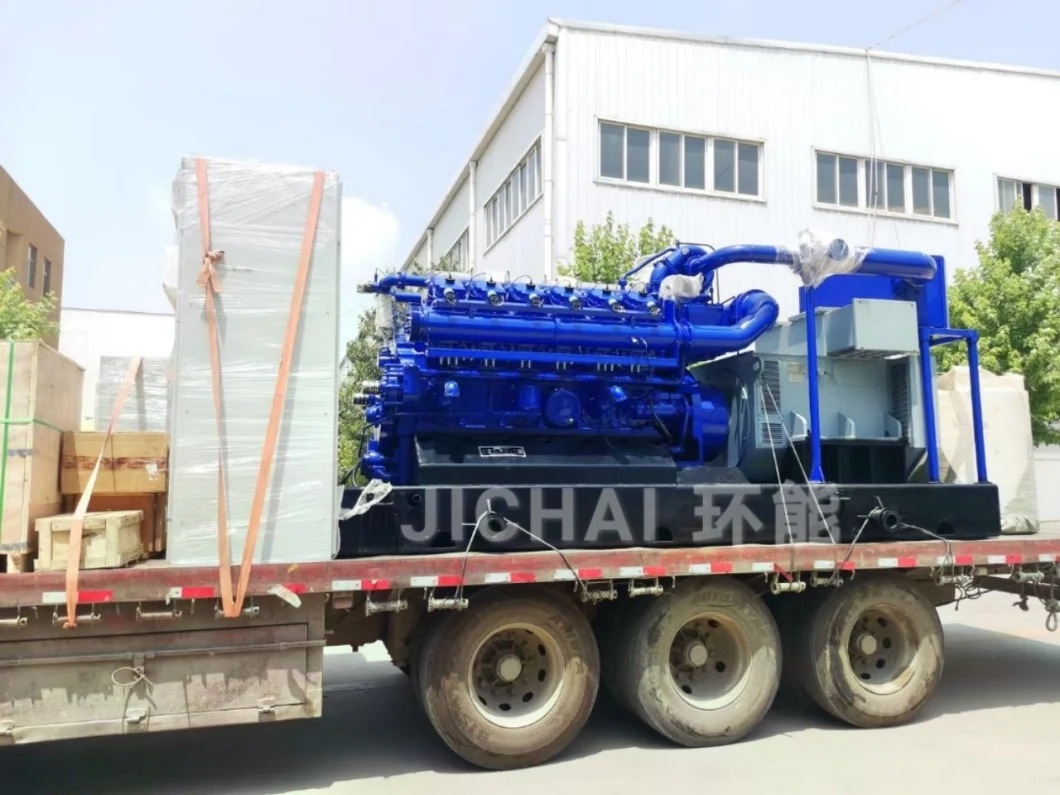

Packing&Delivery

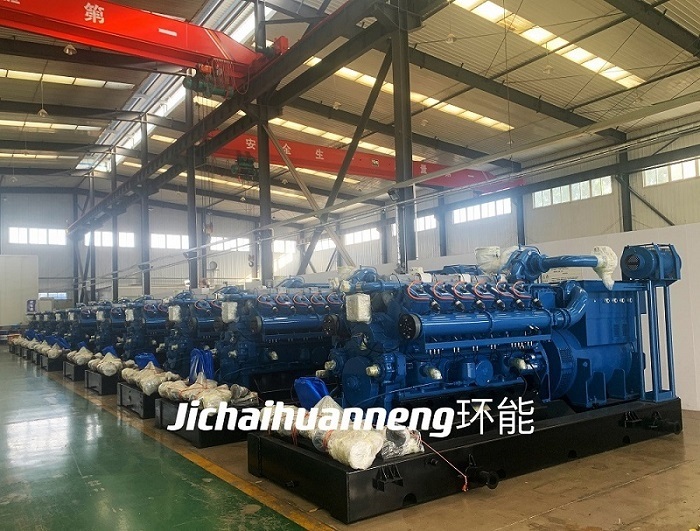

Production line
