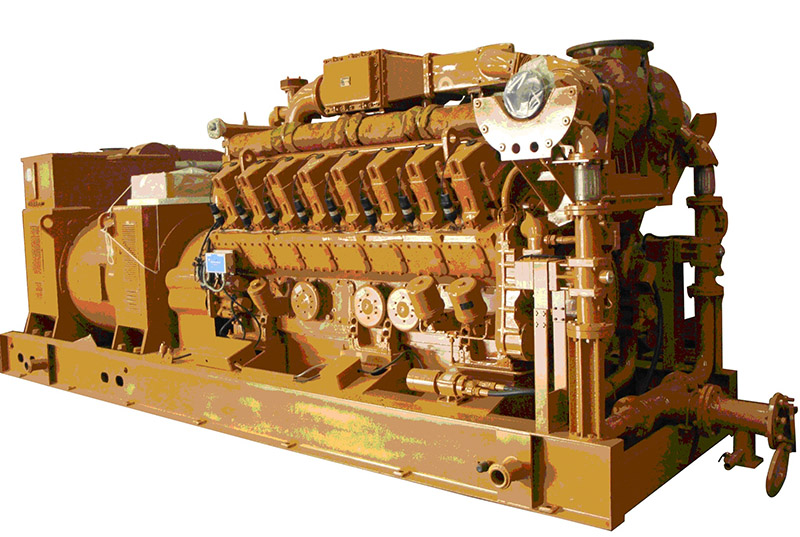

Jichai Brand Gas Generator is designed and manufactured to be high quality, lengthy utilization life, convenient operation, low upkeep cost, excessive talent with low engine speed, low gas consumption, difficult environmental adaptability, excessive steadiness and low fluctuation. The generator is ideal for industrial strength solution.

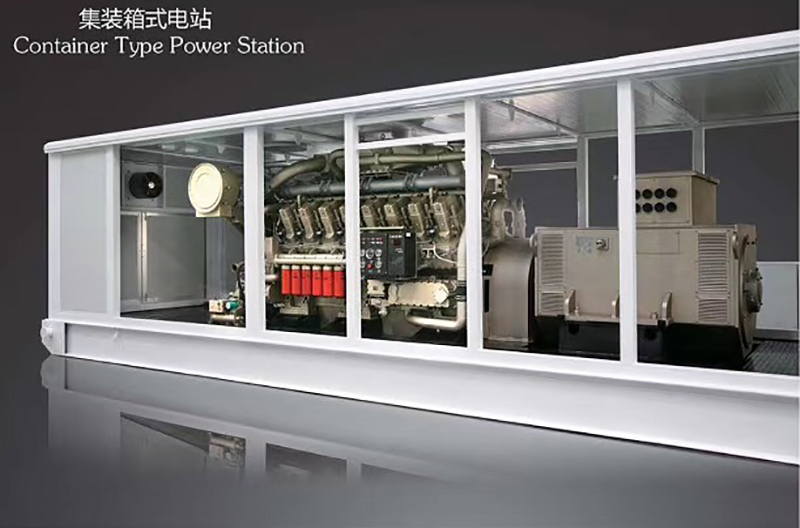

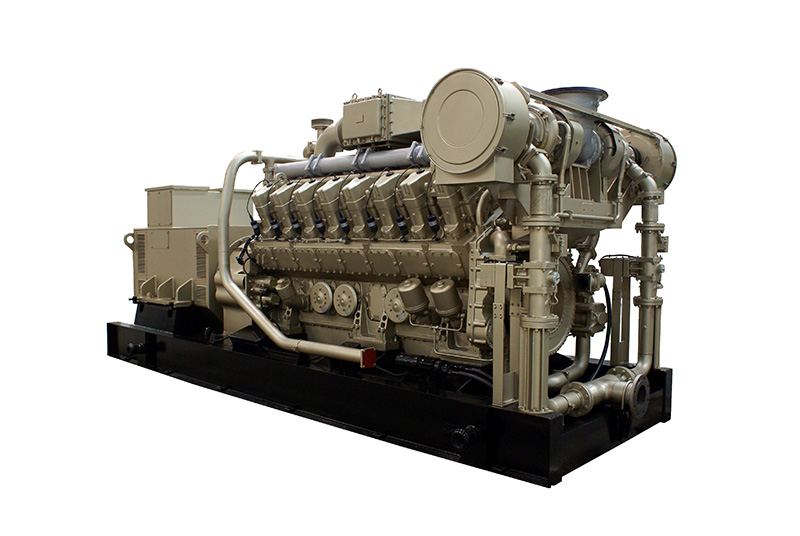

The containerised gas generator set should meet the fast set up requirement. The complete set consist of gas engine generator,CHP unit,ventilation system,cooling device and reveal system,control room for eletctiricity transfer. The containerised fuel generator unit is handy to go from one web page to any other site.
MAIN SPECIFICATIONS OF gas generator set
Model | 1200GF-T | Gas Engine Model | H16V190ZLT-2 | |
Rated power | 1200kW/1500KVA | Alternator | Siemens Series | |
Rated voltage | 400 V | Starting method | 24V DC electric start | |
Rated speed | 1000rpm | Voltage regulation | Automatic | |
Rated frequency | 50Hz | Cooling Mode | Close type water cool | |
Rated current | 2164A | Heat Consumption | 9200kJ/kWh | |
Power factor | 0.8 Lagging | Dimension (mm) | 6583x2180x2540mm | |
Control mode | Electric control | Net Weight (kg) | 24000 |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
Voltage | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
±2.5% | +20% - 15% | 1.5S | 0.5% |
Frequency | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
0-5% adjustable | +10%,-10% | < 7 S | 0.5% |
MAIN SPECIFICATIONS OF GAS ENGINE
Model | H16V190ZLT-2 |
Rated power | 1320kW (1650KVA) |
Number and layout of cylinders: | 16-cylinders, V-type, 60° included angle |
Type | Four strokes, Closed type water cooled, Turbo-charged, Electronic ignition, Electronic speed governor |
Ignition type | Spark plug ignition |
Intake gas pressure required | 100-400 kPa before gas pressure regulator |
Bore´Stroke | 190´215 mm |
Speed Governor | (Woodward) EGS-06 Electric governor |
Oil consumption | £ 0.3g/kWh |
Total lubricating oil capacity (Liters) | 460L |
Exhaust temperature (before turbine) | £ 680 °C |
Heavy overhauling period | 36,000h |
MAIN SPECIFICATIONS OF ALTERNATOR
Alternator model | Exciting model | Insulation class | Connection | Cooling | Structure type |
1FC Series (SIEMENS) | Brushless | Class F | 3-phase, 4-wire | Air cooled | AVR and reactive droop regulator assembled in alternator |
(Kindly Noted: data shown in above table tested under standard working condition: 25 Dec C, atmospheric pressure 100kPa, relative humidity 30%, altitude <1000m.)
CONTROL PANEL
Control panel is panel type, vertical structure, model is GPL1200. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.
The Generator possesses the following automatic monitoring and protective functions:
A) Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Over current
- Short circuit
- Over-speed
- Reverse power
B) Shut-off for:
- Low oil pressure
- Over-speed
- Short circuit
- Over-speed
- Reverse power
C) Trip-off for:
- Over-current
- Short circuit
- Reverse power
The generator can not only supply power directly to load but also can be paralleled running.
OPTIONAL DEVICE
Steel Soundproof Container (sound attenuated canopy)
CHP/ Cogeneration/CCHP Trigeneration
ATS and Synchronization Parallelling Panel
Oil and Water Heater
