CE certificate 700kW gas generator
Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adopt ability, high stability and low fluctuation. The generator is desirable for industrial power solution.

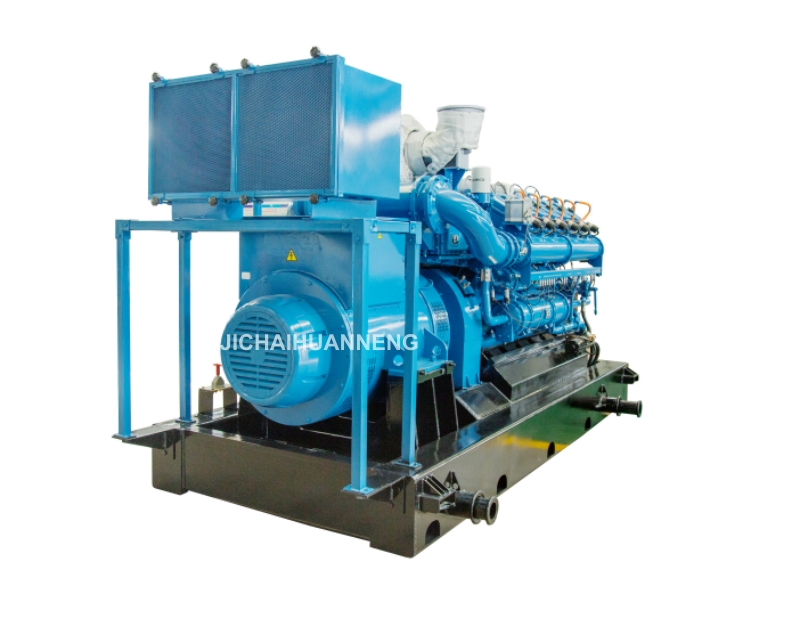

700kw Natural Gas generator is equipped with 12V190ZLT Gas engine made by Jinan Diesel Engine Company, Ltd. as original power.It is consisted of brush-less three-phase synchronous alternator, which is produced in China with Siemens technology and Control Panel made by advanced manufacturing plant.
Main Specification of 700GF-T Gas Generator
Model of genset | 700GF-T |
Model of engine | 12V190ZLT-2 |
Model of alternator | 1FC6 Series |
Coupling method | |
Rated speed(r/min) | 1000 |
Rated power(kW/KVA) | 700/850 |
Rated voltage(V) | 400 |
Rated current(A) | 1281 |
Rated frequency(Hz) | 50 |
Rated power factor | 0.8 lagging |
Voltage regulation | Automatic |
Supply connecting | 3 phase 3wire |
Governor | EGS-06 (WOODWARD) |
Control model | Remote electric control, Hand control |
Starting method | 24V DC electric starting motor |
Cooling method | Water cooling system |
Electrical efficiency | 40.4% |
Heat Consumption | ≤ 9500kJ/kWh |
Net weight(kg) | 27000 |
CE certificate 700kW gas generator
Requirements for fuel gas
In order to ensure its reliable and stable operation of the generator set, the requirements for the natural gas quality is as follows:
——Natural gas should be dehydrated without any water, crude oil & clean oil
——Natural gas pressure 100~400kPa;
——Natural gas temperature -20~40℃;
——Total sulfur content less than 200mg/m3.
Note: Gas volume is under standard condition with 100kPa atmosphere, 20℃ambient temperature,30% relative moisture.
Requirements for cooling water
Soften water is required by high temp and low temp engine circulation system. Cooling water should be lightly alkaline clean water without any corrosive compound, such as chloride,sulfate or acid etc.
CE certificate 700kW gas generator
Requirements for lubricant
Engine is equipped with complete lubrication system, with oil consumption≤0.3g/kW·h. Lubricant model: Mobil Pegasus 705 or 15W40CD.
Requirements for environment
Gas generator set can run steadily, reliably, continuously under following condition: ambient temperature between -40℃~+40℃,relative moisture<90%,sea level elevation≤2000m. The generator can output rated power under standard environmental conditions:atmosphere pressure 100kPa, ambient temperature25℃, air relative moisture 30%.
Cetification
Any more detail technical data,feel free to contact us:
1.The power range we can supply: 150kW 200kW 250kW 300kW 350kW 400kW 500kW 600kW 700kW 800kW 1000kW 1200kW 1500kW 1600kW 2000kW 3500kW 4000kW.
2.what type of Gas our genset can fuel on: CNG,LNG, Natural gas,Biogas, Syngas,Biomass, Associated Gas,Well gas etc.
3.What we can do for you?
