700kW LNG CNG Gas Piston Engine Generator

1) Key components are provided by internationally renowned parts manufacturers.

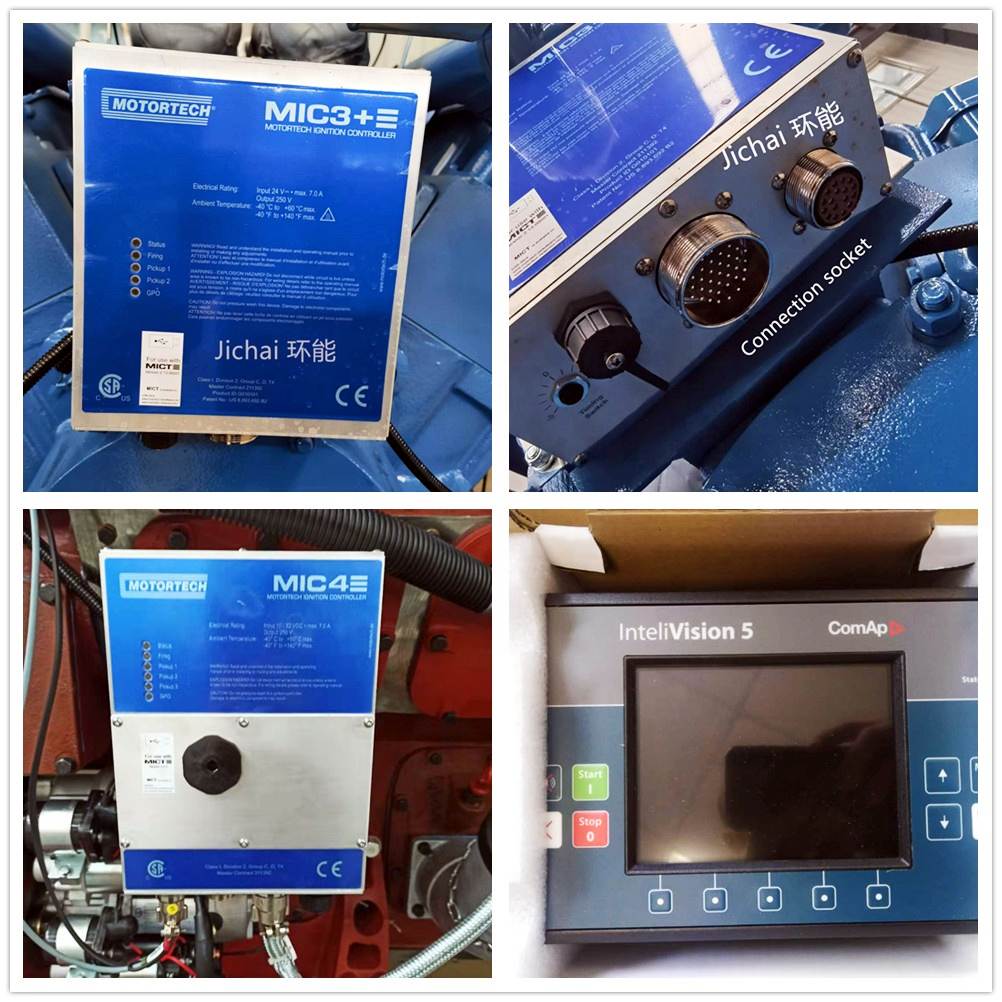

Control system--Woodward

2) Lean combustion technology

3) NOx closed-loop control

4) Knock control: The knock intensity of the whole machine is detected at all times, and delayed ignition, load reduction, and shutdown instructions are executed according to different knock situations.

Contact Now E-Mail Telephone

Product Details

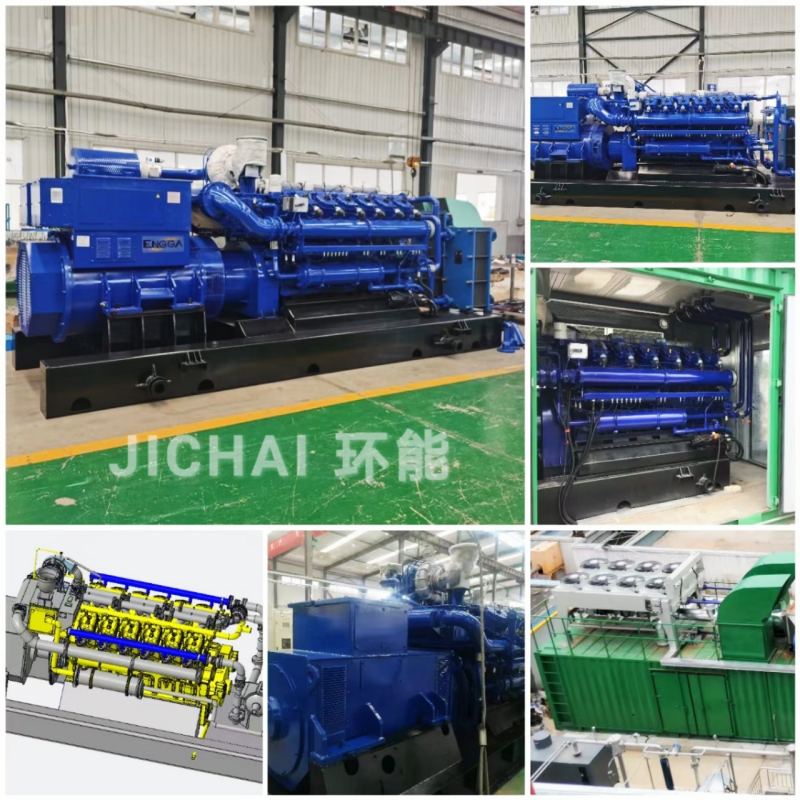

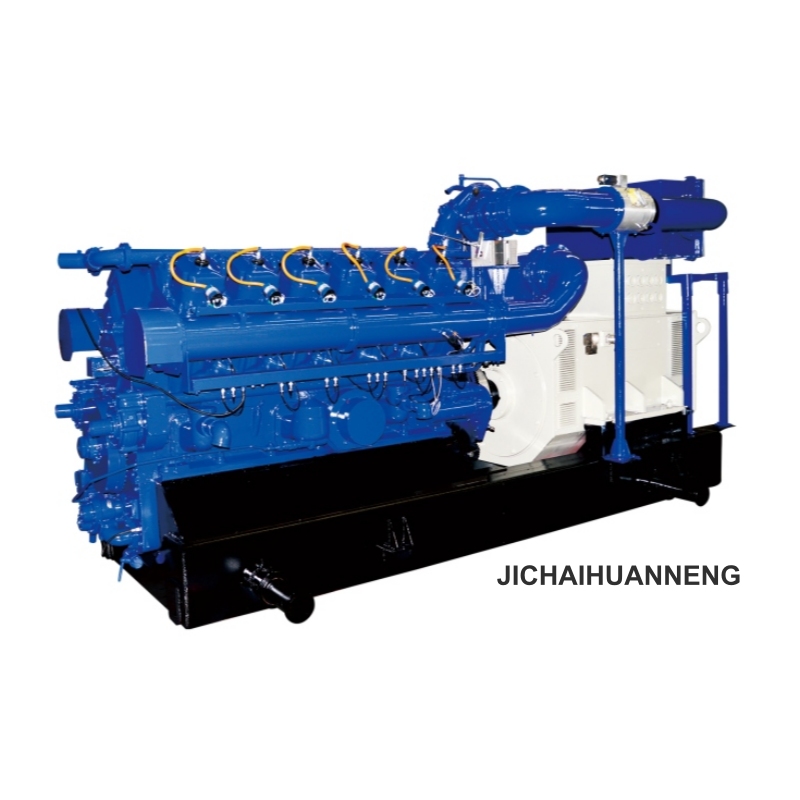

700kw Natural GAS GENERATOR is equipped with 12V190ZLT Gas engine made by Jinan Diesel Engine Company, Ltd. as original power.It is consisted of brush-less three-phase synchronous alternator, which is produced in China with Siemens technology and Control Panel made by advanced manufacturing plant.

700kW Natural Gas Generator Specialfication

Type	700GF-T
Rated Power,kW	700
Rated Voltage,V	400/6300/10500
Rated Current, A	1263/80/48
Rated Frequency,Hz	50/60
Rated Power Factor,cosφ	0.8（lagging）
Supply Connecting	3 phases 3 wires/3 phases 4 wires
Rated Speed,r/min	1000/1200
Eng. Oil consumption,g/kw h	≤0.3
Efficiency,%	38
Starting Method	DC24V Electric
Natural gas pressure (kPa)	100～400
Noise,dB（A）	≤105
Ref. Overall Dim.(LBH),mm	6000×2200×2400
Ref. Weight,kg	14500

700kW Gas Engine Technology Specification

Model	12V190ZL
Rated power	700kW/850KVA
Number and layout of cylinders:	12-cylinders, V-type, 60° included angle
Type	Four strokes, Closed type water cooled, Turbo-charged, Electronic ignition, Electronic speed governor
Ignition type	Spark plug ignition
Intake gas pressure required	7-9kPa
Bore´Stroke	190×210 mm
Total Displacement, L	71.45
Speed Governor	(Woodward) EGS-06 Electric governor
Oil consumption	£ 0.3g/kWh
Total lubricating oil capacity (Liters)	200L
Exhaust temperature (before turbine)	£ 680 °C
Heavy overhauling period	36,000h

MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR

Voltage
Stabilized regulation	Instantaneous regulation	Recovery time	Fluctuation
±2.5%	+20%	2 S	1%
Frequency
Stabilized regulation	Instantaneous regulation	Recovery time	Fluctuation
0-5% adjustable	+10%,-12%	< 10 S	1%

Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adopt ability, high stability and low fluctuation. The generator is desirable for industrial power solution.

700GF-TK..._

Business Scope_.jpg

Requirements for fuel gas

In order to ensure its reliable and stable operation of the generator set, the requirements for the natural gas quality is as follows:
——Natural gas should be dehydrated without any water, crude oil & clean oil
——Natural gas pressure 100~400kPa;
——Natural gas temperature -20~40℃;
——Total sulfur content less than 200mg/m3.
Note: Gas volume is under standard condition with 100kPa atmosphere, 20℃ambient temperature,30% relative moisture.

Requirements for cooling water
Soften water is required by high temp and low temp engine circulation system. Cooling water should be lightly alkaline clean water without any corrosive compound, such as chloride,sulfate or acid etc.

Requirements for lubricant

Engine is equipped with complete lubrication system, with oil consumption≤0.3g/kW·h. Lubricant model: Mobil Pegasus 705 or 15W40CD.

Requirements for environment

Gas generator set can run steadily, reliably, continuously under following condition: ambient temperature between -40℃~+40℃,relative moisture<90%,sea level elevation≤2000m. The generator can output rated power under standard environmental conditions:atmosphere pressure 100kPa, ambient temperature25℃, air relative moisture 30%.

Cooling system_
