500kW Natural Gas Generator Set

500kW natural gas generator adopts Jichai 12V190 Engine

Basic Equipment:

Natural gas engine;Alternator;Coupler;Air Inlet and exhaust System;Silencer;Locating Control Cabinet ;Local monitor cabinet

Features：

High efficiency,Low fuel cost，Long service life

Contact Now E-Mail Telephone

Product Details

500kW natural gas generator set overview:

This 500kW natural gas generator set adopts 12V190ZL engine, which is one sort of highly intelligent,low heat consumption, high reliability, low emission, especially designed for biomass gas with high contents of hydrogen.

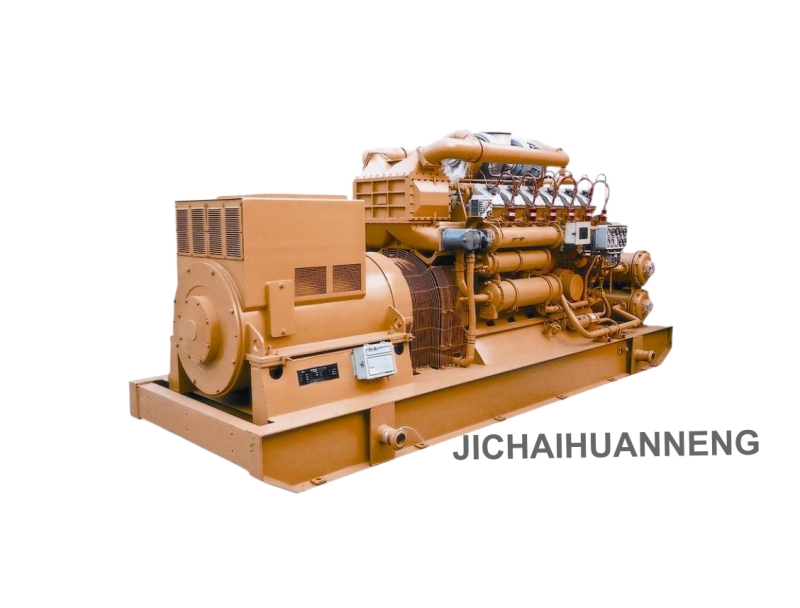

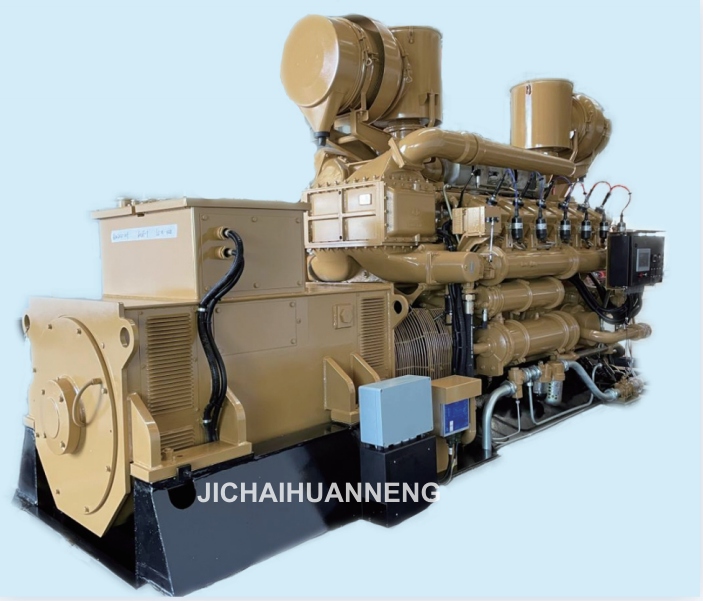

500kW natural gas generator

Main specification of gas generator

Genset model	500GF-T
Alternator model	Brushless excitation,Automatic voltage regulation.
Panel model	GPL500
Rated power	500KW
Rated voltage	400V/480V/6300V/10500/13800
Rated frequency	50/60HZ
Rated power factor	0.8
Wiring mood	3 Phase 4 Wire/3 Phase 3 Wire
Production class	IP23
Insulation class	H
Stabilized voltage regulation	±2.5%
Voltage stabilization time	≤1.5s
Fluctuation rate of voltage	≤1%
Stabilized frequency regulation	0~5%
Frequency stabilized time rate	≤7s
Fluctuation rate of frequency	≤0.5%
Overall dimension	4566mm2040mm2780mm
Net weight	11300kg

Main specification of gas engine

Engine model	12V190ZDT-2
Type	Four strokes,V-type,water cooling,spark plug ignition,electric controller,outer mixed
Number of cyliner	12
Bore	190mm
Stoke	210mm
Total displacement	71.5L
Rated speed	1000/1200r/min
Rated power	552KW
Idle speed	700r/min
Gas pressure	10-40KPa
Gas consumption	≤11386kJ/kW·h
Oil consumption	≤0.8g/kW·h
Exhaust tem.(before turbine）	≤680℃
Water oulet temperature	≤90℃
Water inlet temperature of intercooler	<45℃
Oil temperature	<90℃
Stabilized speed droop	0~5%
Cooling mood	Open type-cooling tower/closed type-vertical or horizontal radiator
Lubrication method	Pressure and splash lubrication

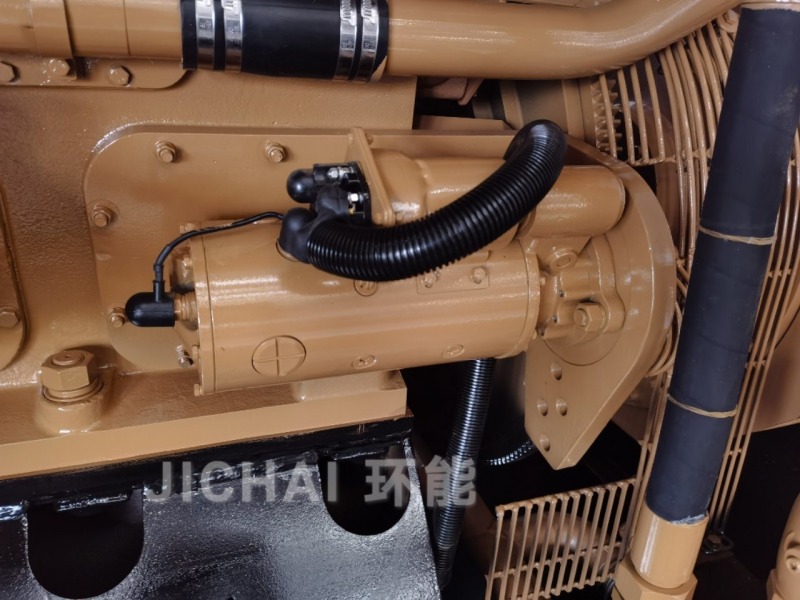

Starting mood	Electric starting
Crankshaft rotation	Counter-clockwise（face to flywheel）
