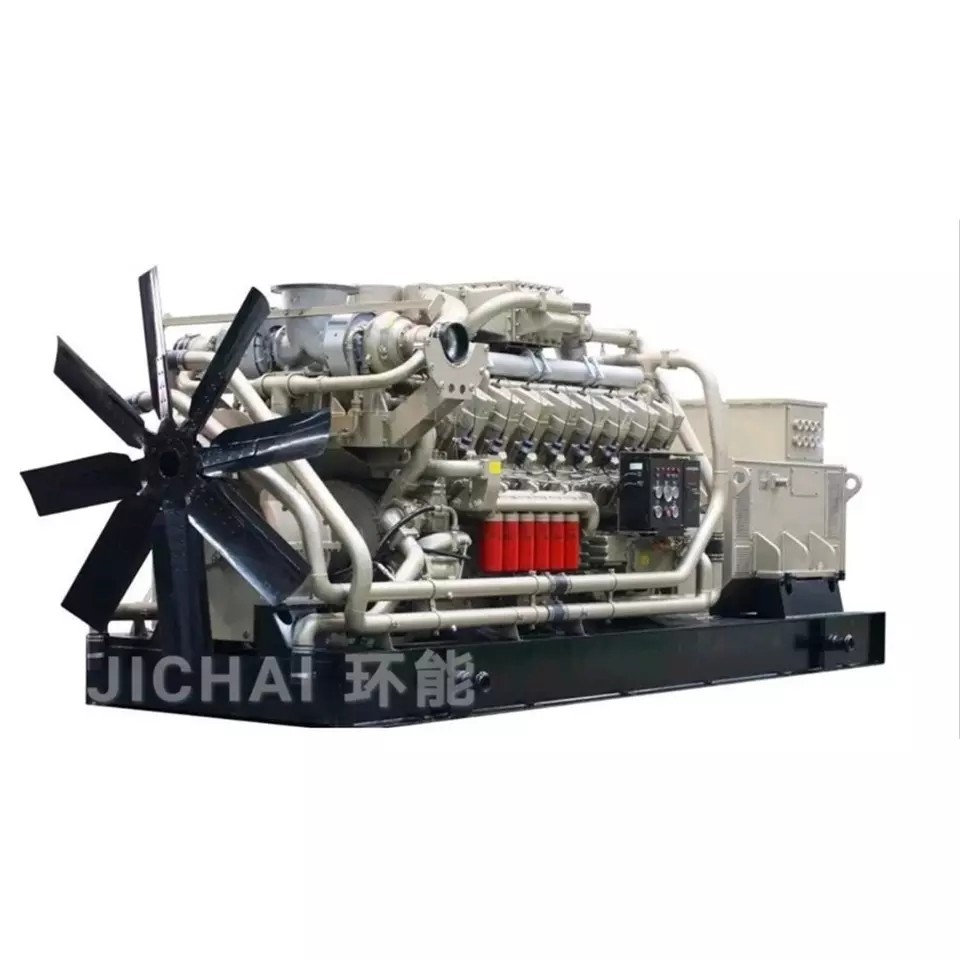

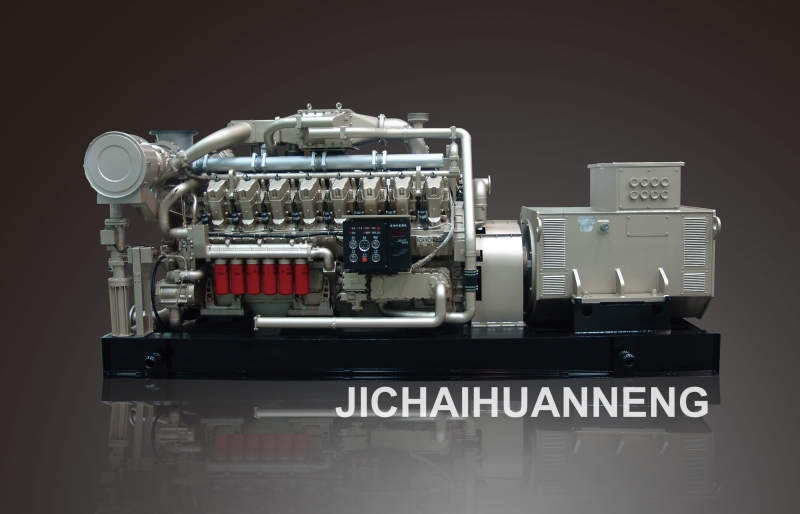

1200kW Natural Gas Generator Set
1200kW natural gas generator adopts Jichai 16V190 Engine
Advantages：
1.High Efficiency
2.Longer service life
3.Cleaner emission
4.Low consumption
The 1200KW natural generator adopts - H16V190ZLT2 engine, which is one sort of High Efficiency,High intelligence, low fuel consumption, high intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine,big bore of 190mm ensures its continuous constant power output,middle speed of 1000rpm ensures the service life,natural aspiration ensures the safety of coal bed methane delivery.
Main specification of gas generator
Genset model | 1200GF-T |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1200 |
Rated power | 1200KW |
Rated voltage | 6300V |
Rated frequency | 50HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized state frequency regulation | 0-5% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 7757mm*2585mm*2864mm |
Net weight | 23000kg |
Main specification of gas engine
Engine model | H16V190ZLZ2-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 16 |
Bore | 190mm |
Stoke | 215mm |
Total displacement | 97.53L |
Rated speed | 1000r/min |
Rated power | 1300KW |
Idle speed | 700r/min |
Gas pressure | 100-400KPa |
Gas consumption | ≤9200kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | 0-5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 60000h |
Certification

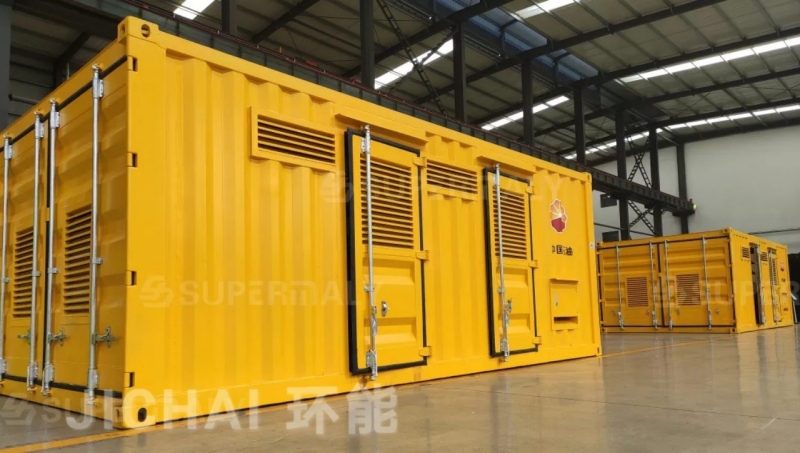

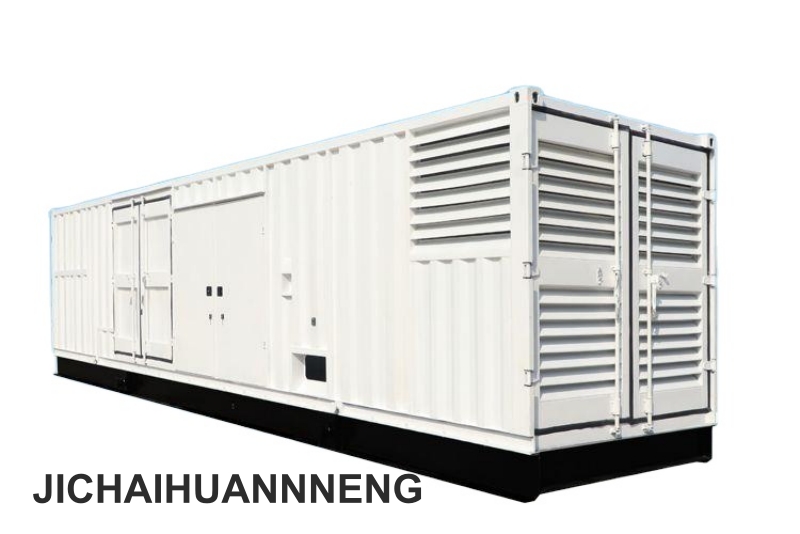

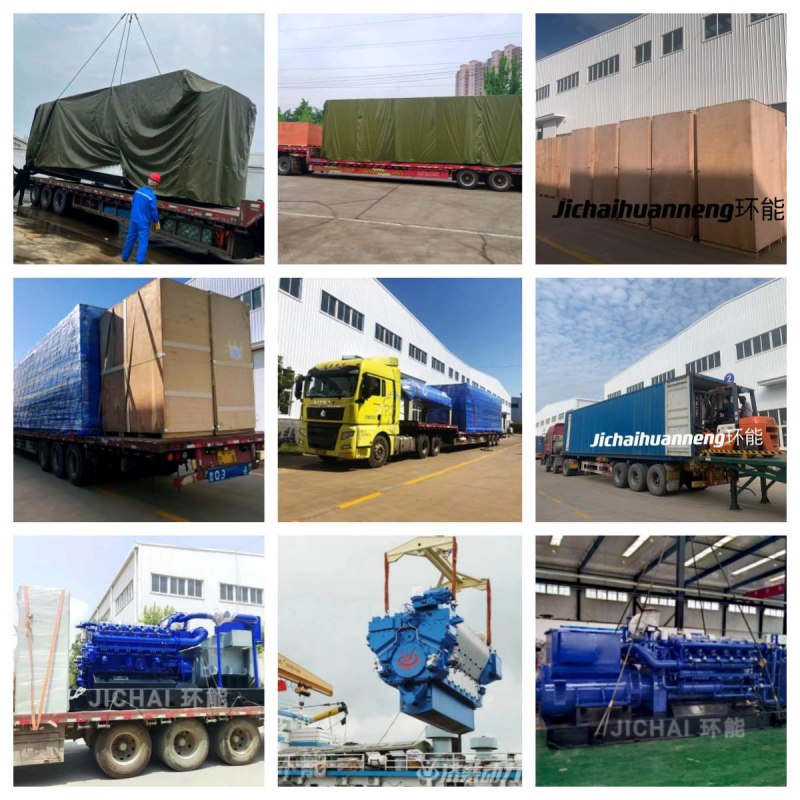

Delivery

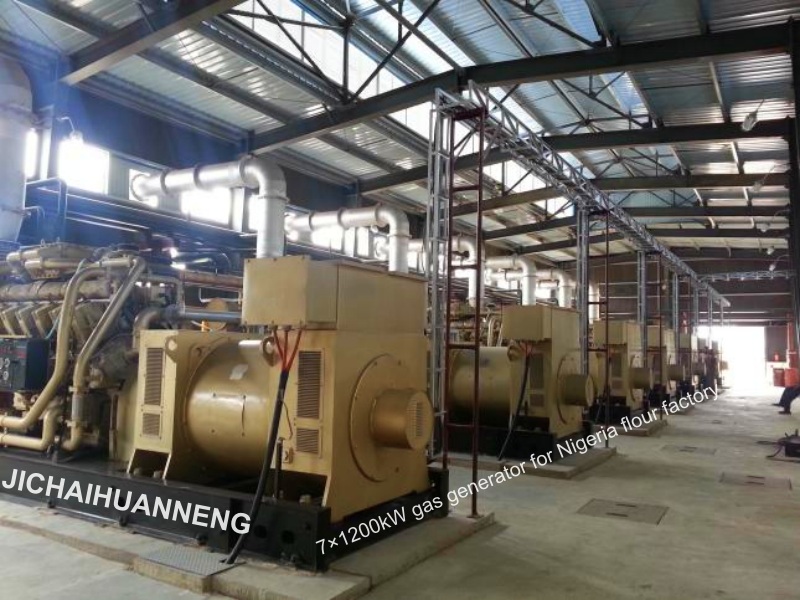

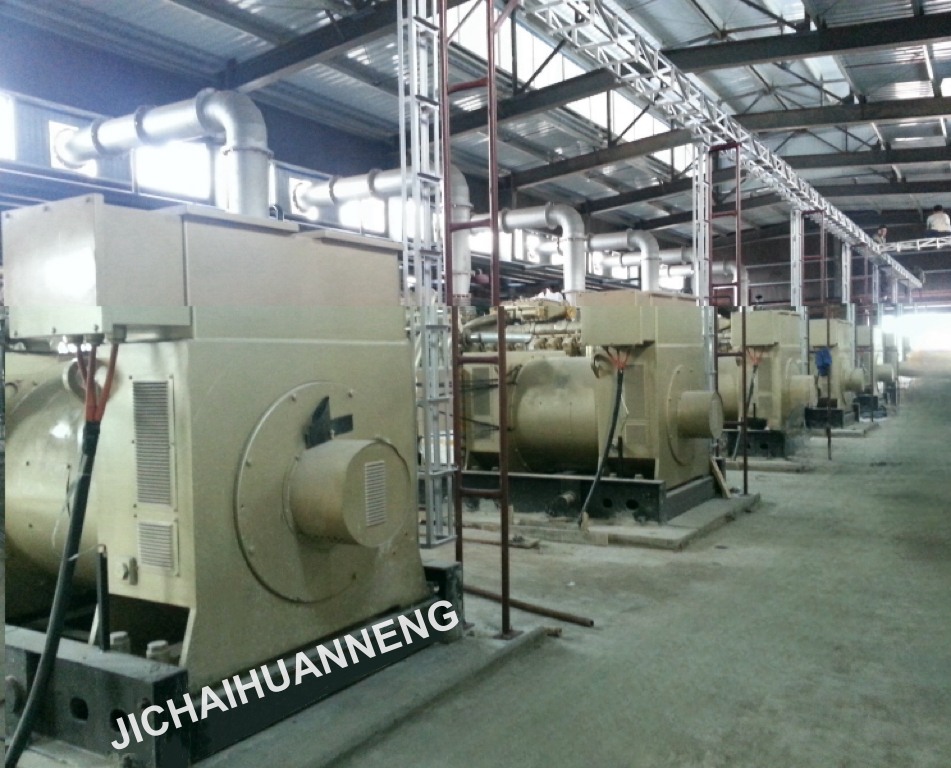

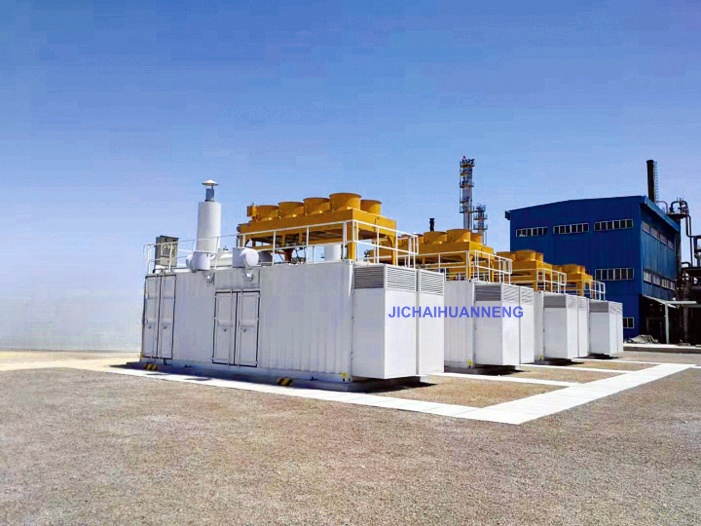

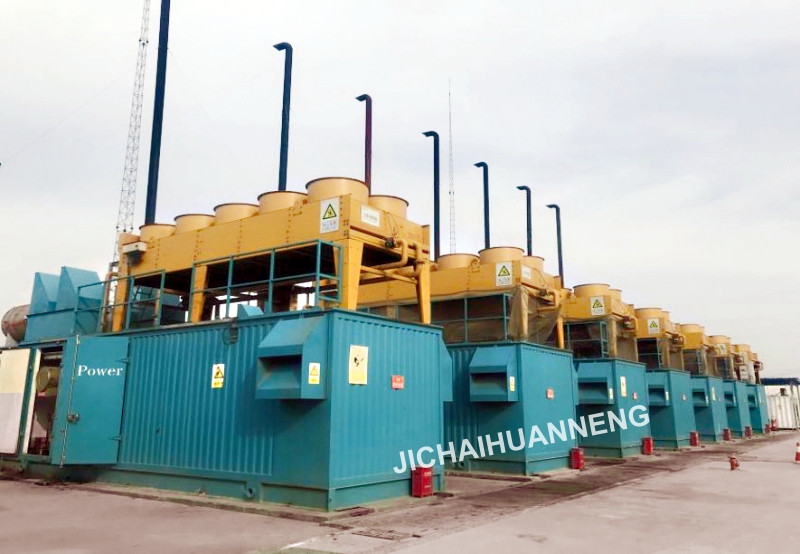

Project Case
