1100kW Natural Engine Generator
1、High Efficiency
2、Low Cost
3、Clean Emission
4、Long Service
Main specification of gas generator
Genset model | 1100GF-T |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1100 |
Rated power | 1100KW |
Rated voltage | 400V/10500V |
Rated frequency | 50HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized state frequency regulation | 0-5% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 5998mm*2180mm*2540mm |
Net weight | 19800kg |
Main specification of gas engine
Engine model | H16V190ZLT-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 16 |
Bore | 190mm |
Stoke | 215mm |
Total displacement | 97.53L |
Rated speed | 1000r/min |
Rated power | 1200KW |
Idle speed | 700r/min |
Gas pressure | 100-400KPa |
Gas consumption | ≤9200kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | 0-5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 60000h |

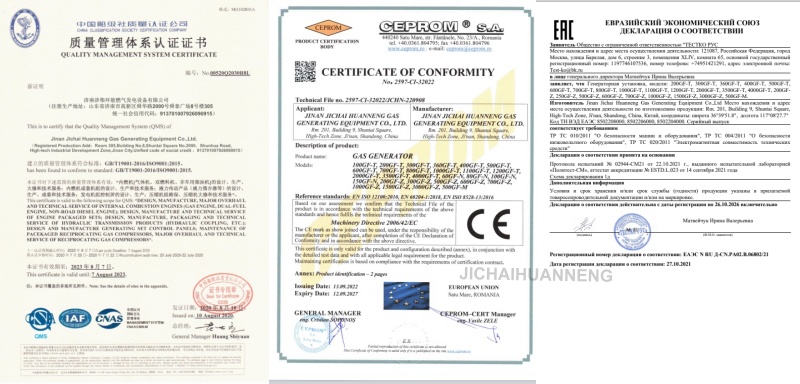

Certification
