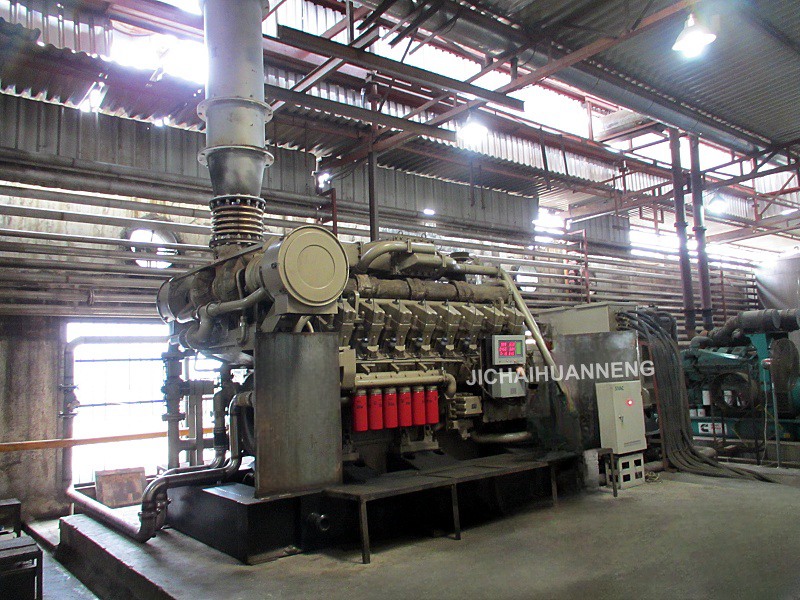

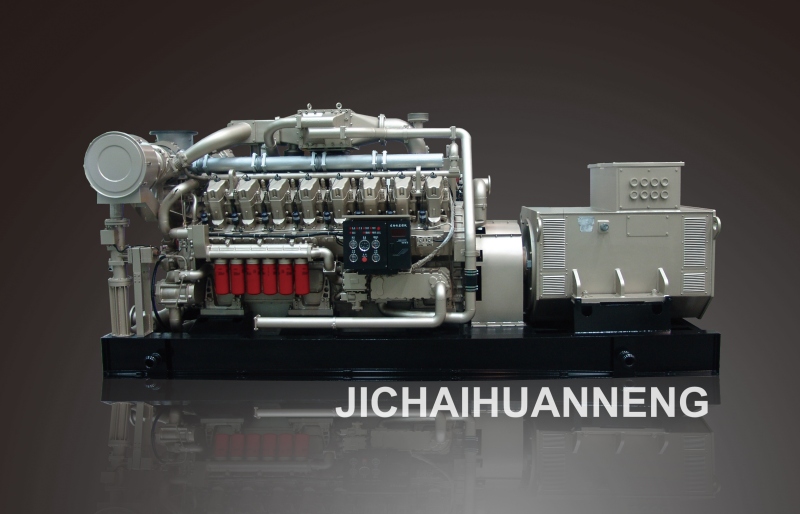

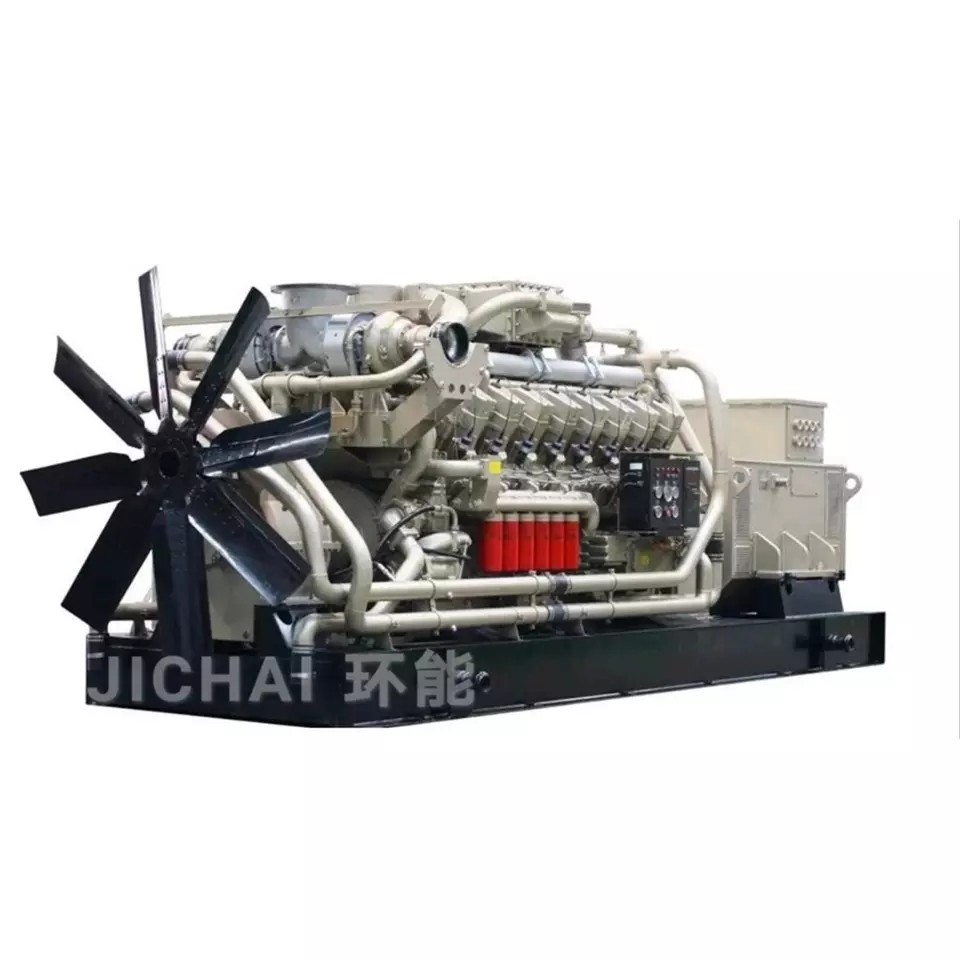

1000kW Natural Gas Generator Set
1000kW natural gas generator adopts Jichai 16V190 Engine
Advantages：
High Efficiency,High intelligence, low fuel consumption, low gas quality requirement
This 1000KW natural generator adopts - H16V190ZLT2 engine, which is one sort of High Efficiency,High intelligence, low fuel consumption, high intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine,big bore of 190mm ensures its continuous constant power output,middle speed of 1000rpm ensures the service life,natural aspiration ensures the safety of coal bed methane delivery.
Main Specification of Generator set
Model of generating set | 1000GF-T |
Model of engine | 16V190ZDT-2 |
Rated power(kw) | 1000 |
Rated speed r/min. | 1000 |
Rated voltage (V) | 415/240 |
Rated frequency (Hz) | 50/60 |
Rated power factor | 0.8 |
Supply method | 3 phases 4 wires |
Excitation method | brushless |
Starting method | 24V DC starter |
Speed modulate method | Electronic control |
Cooling method | Water cooling system |
Net weight Net weight (kg) | 11800 |
Main Specification of Engine
Model | 16V190ZDT-2 |
Rated power(kw) | 1000 |
Rated speed(r/min) | 1000 |
No. and layout of cylinders | 16-cylinder, 60° Vee |
Type | Four stroke, water cooled, turbocharged and after-cooled, pre-combustion chamber type spark plug, mix before compressor |
Type of combustion | Lean burn |
Gas pressure(bar) | 1-4 |
Gas consumption(Nm³/kwh) | 0.3 |
Specific oil consumption (g/kwh) | 1 |
Oil capacity (L) | 200 |
Bore(mm) | 190 |
Stroke(mm) | 210 |
BMEP(bar) | 9.26 |
Compression ratio | 8:1 |
Total displacement(L) | 71.5 |
High temperature water capacity (L) | 250 |
Low temperature water capacity (L) | 150 |
Emission | Meet IMO code |
Exhaust temperature (before turbine ℃) | ≤650 |
Direction of rotation | Counter-clockwise (facing to flywheel) |
Intake air flow(m³/h) | 2077 |
Exhaust gas flow(m³/h) | 2227 |
Lubrication method | Pressure and splash lubrication |
Overhauling time(H) | 30000
|
Main Specification of Alternator
Model | 1FC5456-6TA42 (SIEMENS technology) |
Rated power(kw) | 500 |
Rated voltage(V) | 415 |
Rated current(A) | 870 |
Rated frequency(Hz) | 50/60Hz |
Power factor | COS=0.8(lagging) |
Rated speed | 1000 r/min |
Efficiency | 95 % |
Phase | 3 |
Connection | 3 phases 4 wires |
Excited method | brushless |
Insulation class | F |
Class of protection | IP23 |
Cooling | A fan at the drive end draws the cooling air |
Working model | Continues working(S1) |
Coupling | Elastic |
Bearing | Rolling bearing, 2PCS |
Certification
