4200kW High Voltage Diesel Engine Generator
1.Reliable running
2.Prolonged TBO
3.Easy maintenance

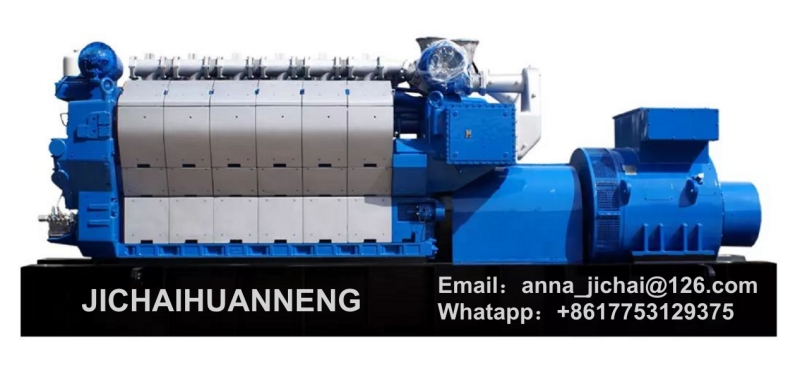

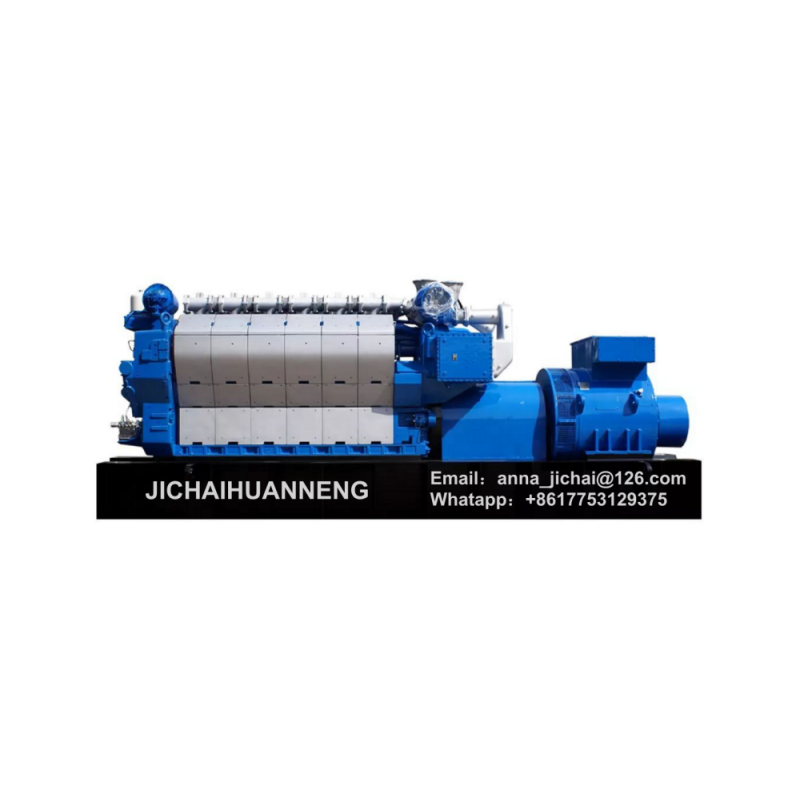

JCHN 4200kW Diesel Engine Generator(4200GF) consists of one 9L32/40 diesel engine as prime mover, one alternator with excitation system and AVR, control and monitoring system, protection system and various auxiliary equipment.
Main Technical Specification Of diesel engine generator
Model of generating sets | 4200GF |
Model of engine | 9L 32/40 |
Rated power | 4200kW |
Rated speed | 750 r/min. |
Rated voltage | 6600 V |
Rated frequency | 50Hz |
Rated power factor | 0.8 |
Supply method | 3 phases 4 lines |
Excitation method | Brushless |
Starting method | Electric starter |
Cooling method | Rotation direction |
operating method | |
Net weight （T) | 51000±5% |
Overall dimension L×B×H(mm) | 7800 x 2695 x 4385 (mm) |
Main Eelectrical Performance Data
Voltage | Stable regulating rate | ±2.5% |
Instantaneous regulating rate | -15%~+20% | |
Recovery time | ≤1.5s | |
Fluctuation | ≤1% |
Main Technical Data Of Engine
Model of engine | 9L 32/40 |
Rated power/speed | 4500kW/750rpm |
Specific oil consumption | ≤0.5g/kW.h |
fuel consumption rate | 181g/kW.h |
Number and layout of cylinders | 9cylinders |
Type | Four stroke, water cooled, turbocharged and aftercooled, direct injecton |
Bore | 320mm |
Stroke | 400mm |
Starting method | Air starter |
Direction of rotation (facing to end) | Counter-Clockwise |
Lubricating method | Pressure and splash lubrication |

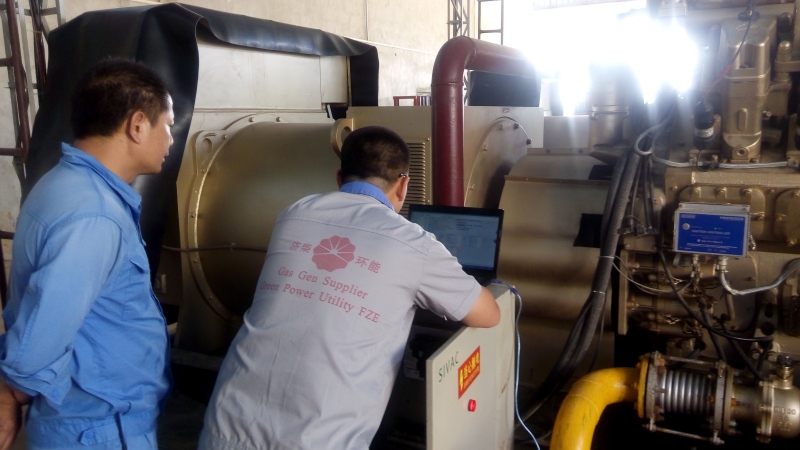

After Sale
