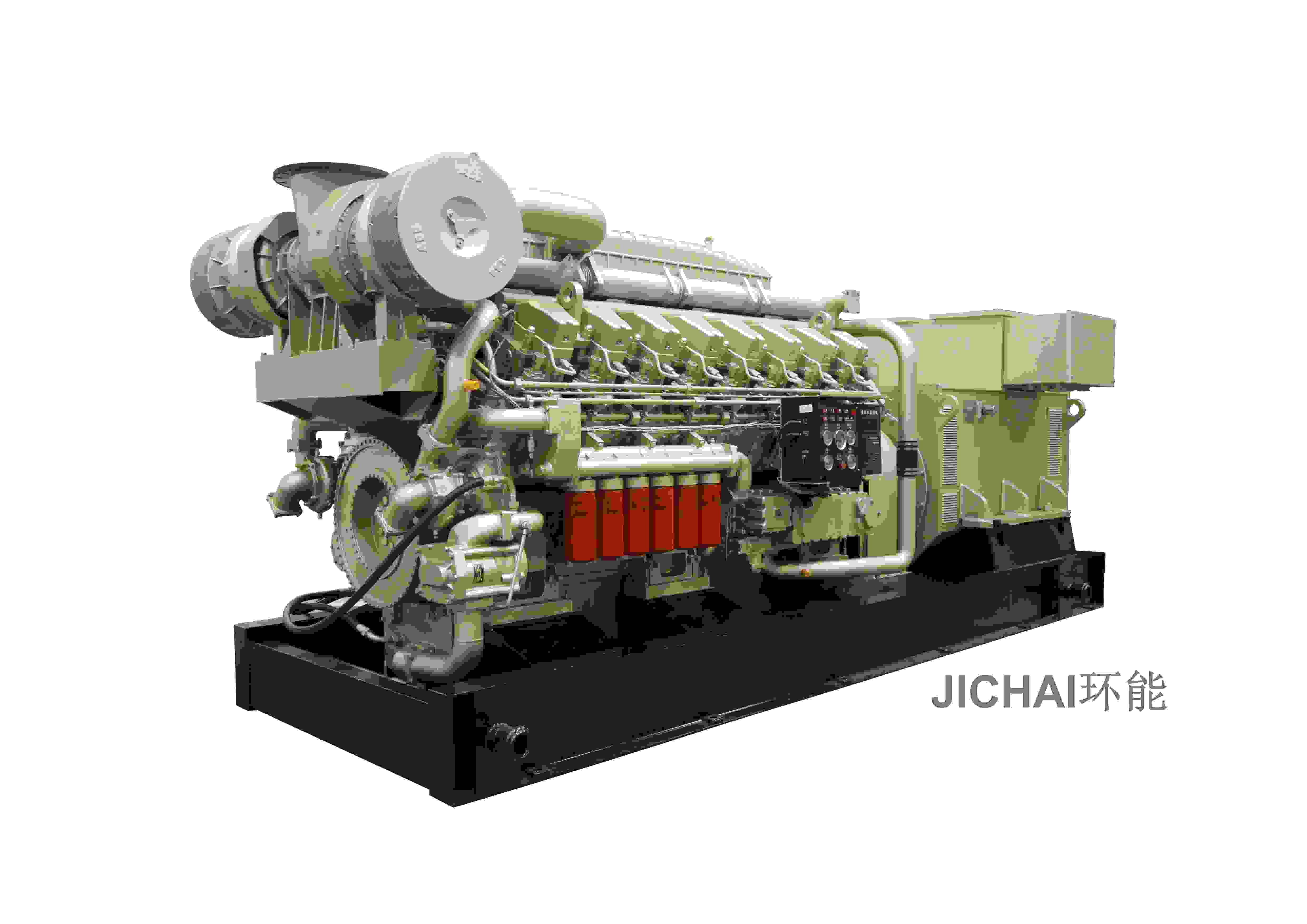

1250kVA Diesel Engine Generator
Excessive quality, lengthy utilization life, handy operation, low preservation cost, excessive brain with low engine speed, low gasoline consumption, low fuel first-class requirement, difficult environmental adaptability, excessive balance and low fluctuation.
GENERATOR SPECIFICATION | |
Genset model | 1000GF-D |
Output power | 1000KW/1250KVA |
Output voltage | 400/230V |
Output currency | 1800A |
Rated frequency | 50Hz |
Rated speed | 1500rpm |
Dimension | 12000X2400X2700mm |
Weight | 14000kg |
ENGINE SPECIFICATIONS
ENGINE SPECIFICATION | |
Brand / Origin | CUMMINS |
Engine model | KTA38-G9 |
Rated power | 1090kw |
Number of cylinders | 12.V |
Bore x stroke | 159X159mm |
Start method | electric start |
Cooling method | Closed water circulation cooling |
Governor method | Electrical |
Intake mothod | Turbocharged |
Overload capacity | 110% |
Speed | 1500rpm |
Rated fuel consumption | 207 L/h |
Oil capacity | 135 L |
Displacement | 37.8 L |
ALTERNATOR SPECIFICATION
ALTERNATOR SPECIFICATION | |
Brand / Origin | STAMFORD |
Alternator model | LVI634G |
Rated power | 1250KVA |
Rated voltage | 400V |
Insulation class | H |
Protection level | IP23 |
Wiring | 3P4W Y-connection |
Adjustment method | AVR |
Output frequency | 50Hz |
Control system
The monitoring and safety cupboard of the manage gadget is established on the unit base.
The manipulate gadget configuration is as follows:
√ Control cupboard
√ Cabinet components
√ Emergency quit button
√ DSE6120 controller
Scope of supply
√ Brand new CUMMINS diesel engine.
√ Brand new STAMFORD alternator.
√ Control panel with DSE6120 controller
√ Anti-Vibration factors between engine/alternator and base frame.
√ Radiator with engine pushed fan.
√ Battery with battery cables and rack,loose silencer, elbow pipe, provided with the enlargement joint, battery and battery connections
√ English operation/maintenance manuals/test record for engine, alternator and fuel engine generator.
√ Standard equipment kit.
