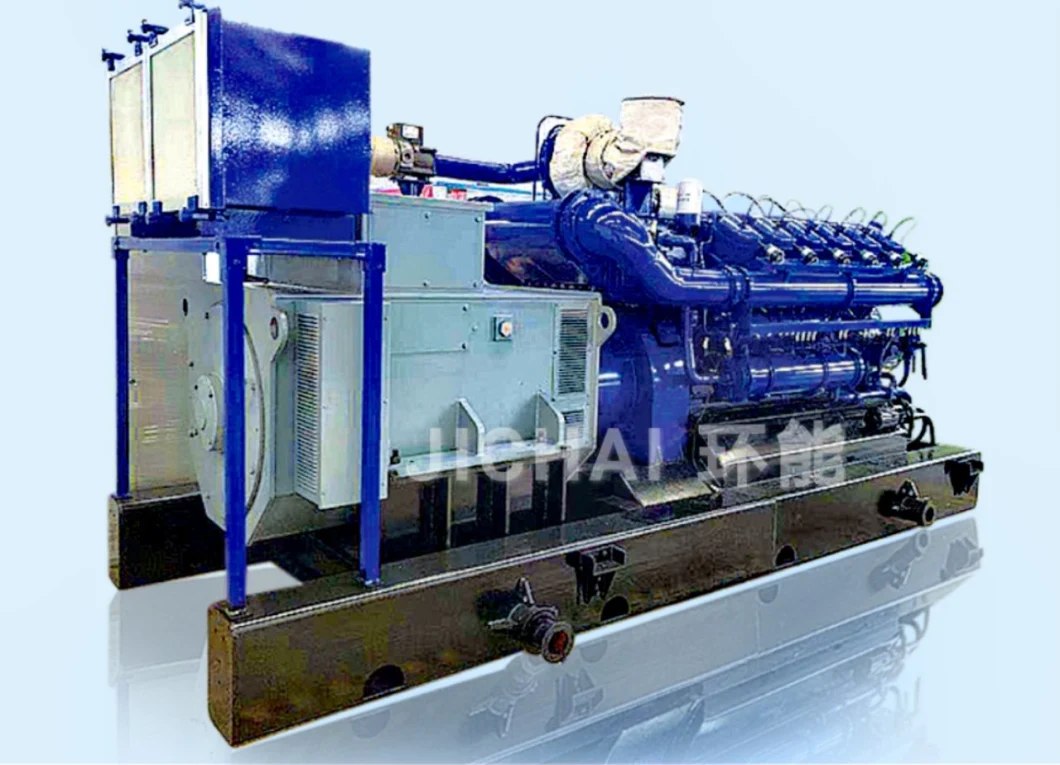

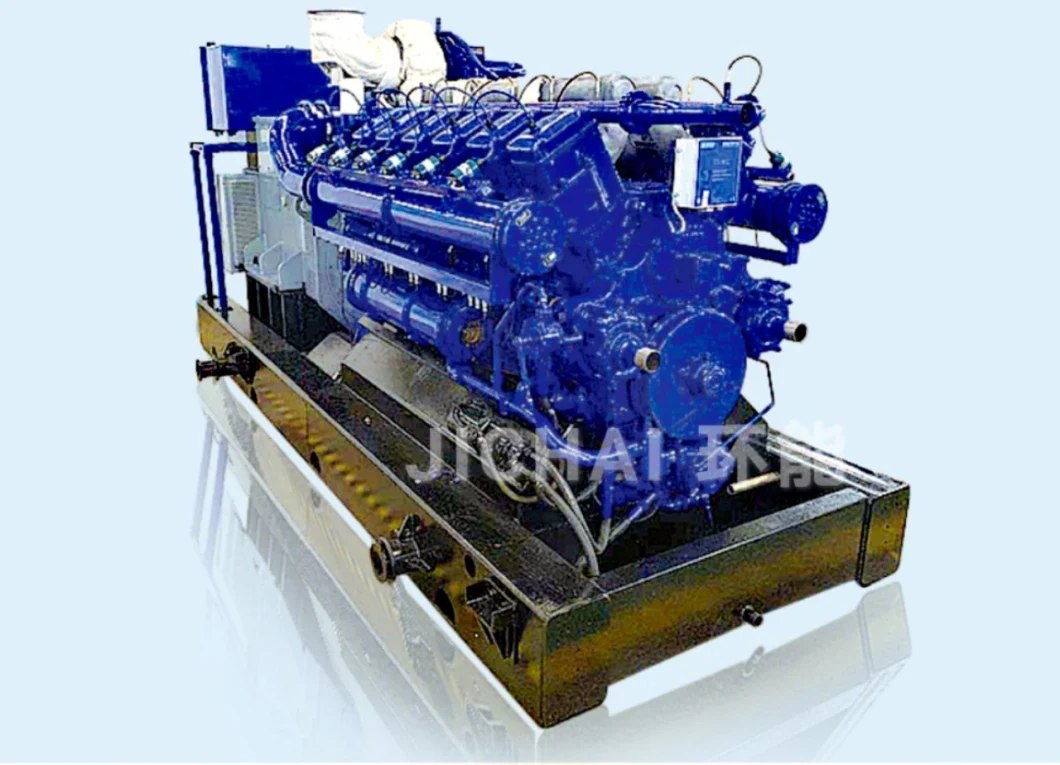

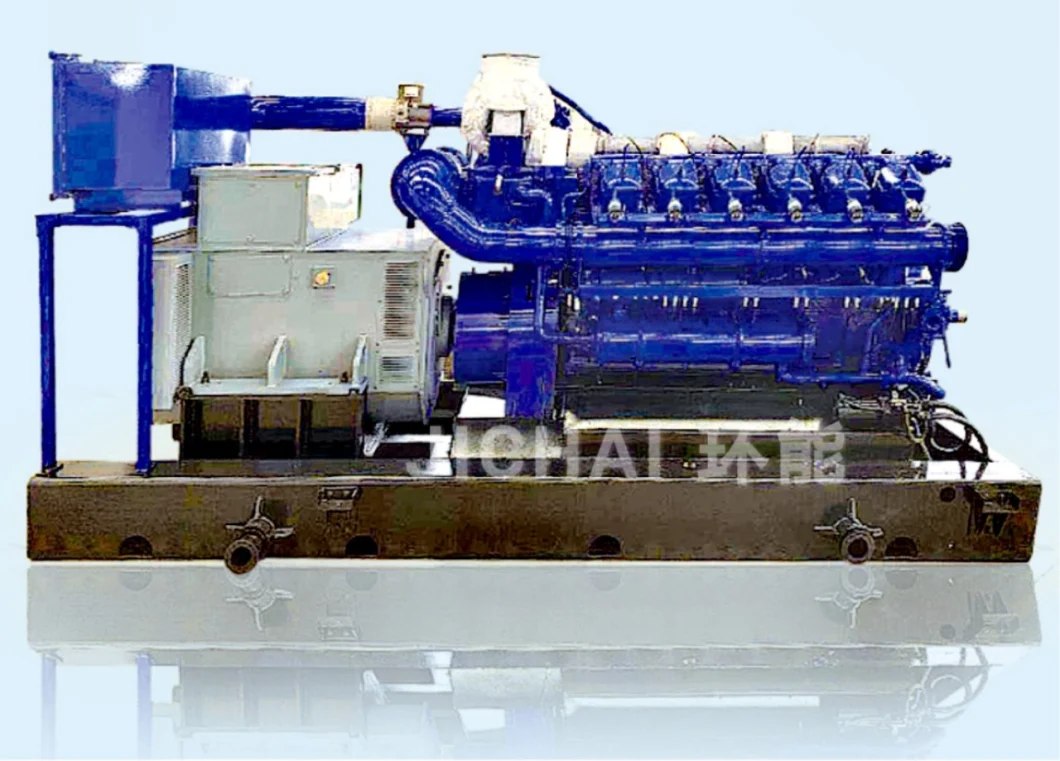

700kW CNG Pipeline Natural Gas Powered Generator
A)The output voltage can be 400V, 6300V,10500V , decreasing the preliminary funding and strolling cost.
B) Big bore of 190mm ensures its non-stop consistent strength output.
C) Middle pace of 1000rpm ensures the carrier life.
D) Easy maintenance and low noise.
The 700GF-T generator set adopts the Jichai 12V190 engine, which makes use of superior manipulate structures and equipment. As a mature mannequin that has been extensively put into the market and demonstrated for many years, this set has the traits of excessive engine thermal efficiency, robust load carrying potential and load affect resistance, robust aspect universality, and low unit operation and preservation costs.
MAIN SPECIFICATIONS OF GAS GENERATOR SET
Model | 700GF-T | Gas Engine Model | 12V190ZL | |
Rated power | 700kW/875KVA | Alternator | Siemens Series | |
Rated voltage | 400 V | Starting method | 24V DC electric start | |
Rated speed | 1000rpm | Voltage regulation | Automatic | |
Rated frequency | 50Hz | Cooling Mode | Close type water cool | |
Rated current | 1281A | Heat Consumption | £ 9800kJ/kWh | |
Power factor | 0.8 Lagging | Dimension (mm) | 5120x2040x2219mm | |
Control mode | Electric control | Net Weight (kg) | 14500 |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
Voltage | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
±2.5% | +20% | 2 S | 1% |
Frequency | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
0-5% adjustable | +10%,-12% | < 10 S | 1% |
MAIN SPECIFICATIONS OF GAS ENGINE
Model | 12V190ZL |
Rated power | 700kW/875KVA |
Number and layout of cylinders: | 12-cylinders, V-type, 60° included angle |
Type | Four strokes, Closed type water cooled, Turbo-charged, Electronic ignition, Electronic speed governor |
Ignition type | Spark plug ignition |
Gas pressure required | 100-400kPa |
Bore´Stroke | 190´210 mm |
Speed Governor | (Woodward) EGS-02 Electric governor |
Oil consumption | £ 0.6g/kWh |
Total lubricating oil capacity (Liters) | 200L |
Exhaust temperature (before turbine) | £ 680 °C |
Heavy overhauling period | 36,000h |
MAIN SPECIFICATIONS OF ALTERNATOR
Alternator model | Exciting model | Insulation class | Connection | Cooling | Structure type |
1FC5456-6TA42 (SIEMENS) | Brushless | Class F | 3-phase, 4-wire | Air cooled | AVR and reactive droop regulator assembled in alternator |
(Kindly Noted: data shown in above table tested under standard working condition: 25 Dec C, atmospheric pressure 100kPa, relative humidity 30%, altitude <1000m.)
CONTROL PANEL
Control panel is panel type, vertical structure, model is GPL700. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.
The Generator possesses the following automatic monitoring and protective functions:
A) Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Over current
- Short circuit
- Over-speed
- Reverse power
B) Shut-off for:
- Low oil pressure
- Over-speed
- Short circuit
- Over-speed
- Reverse power
C) Trip-off for:
- Over-current
- Short circuit
- Reverse power
The generator can not only supply power directly to load but also can be paralleled running.
After Sale Service
1. Professional engineers provide pre-sales technical consultation for users
2. Cooperate with users to install and debug the unit
3. Maintenance engineers are available to provide technical assistance at any time
Packing&Delivery

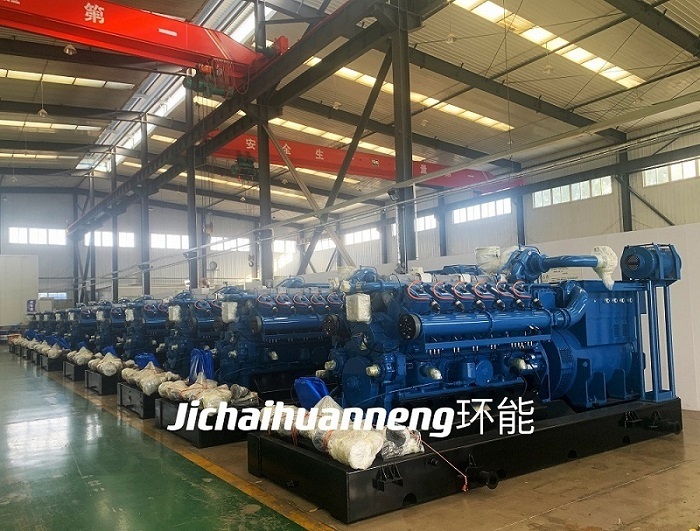

Production line
Exhibition

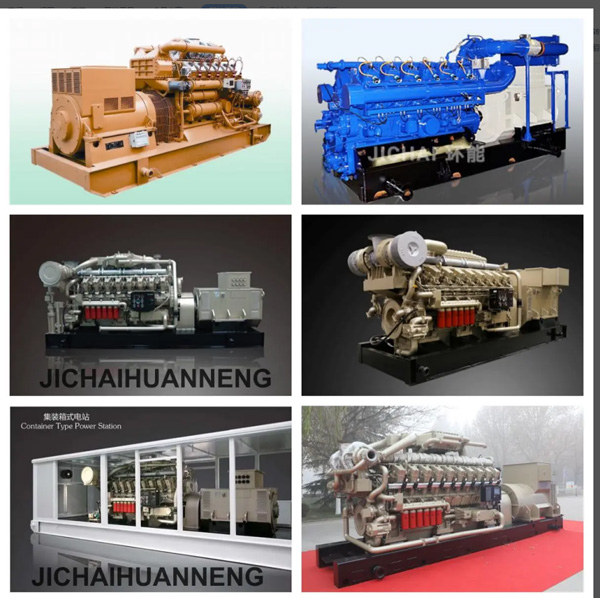

Other Products
