500kW Natural Gas Engine Generator
Jichai Brand Generator is designed and manufactured to be excessive quality, lengthy utilization life, handy operation, low renovation cost, excessive talent with low engine speed, low gas consumption, low fuel satisfactory requirement, difficult environmental adaptability, high balance and low fluctuation. The generator is applicable for industrial energy solution.
The 500kW herbal gas fired Generator is outfitted with 12V190ZL Gas engine as authentic power,which is designed and manufactured to be excessive quality, lengthy utilization life, handy operation, low renovation cost.The generator is appropriate for industrial electricity solution.
As a mature model that has been widely put into the market and verified for many years, this unit has the characteristics of high engine thermal efficiency, strong load carrying capacity and load impact resistance, strong universality of accessories, and low unit operation and maintenance costs.
MAIN SPECIFICATIONS PARAMETERS OF GAS ENGINE GENERATOR SET
Model | 500GF18-TK | Gas Engine Model | 12V190ZDT-2 | |
Rated power | 500kW/625KVA | Alternator | Siemens Series | |
Rated voltage | 400 V | Starting method | 24V DC electric start | |
Rated speed | 1000rpm | Voltage regulation | Automatic | |
Rated frequency | 50Hz | Cooling Mode | Close type water cool | |
Rated current | 902A | Heat Consumption | £ 10500kJ/kWh | |
Power factor | 0.8 Lagging | Dimension (mm) | 5120x2040x2219mm | |
Control mode | Electric control | Net Weight (kg) | 12000 |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
Voltage | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
±2.5% | +20% | 2 S | 1% |
Frequency | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
0-5% adjustable | +10%,-12% | < 10 S | 1% |
MAIN SPECIFICATIONS OF GAS ENGINE
Model | 12V190ZDT-2 |
Rated power | 500Kw/625KVA |
Number and layout of cylinders: | 12-cylinders, V-type, 60° included angle |
Type | Four strokes, Closed type water cooled, Turbo-charged, Electronic ignition, Electronic speed governor |
Ignition type | Spark plug ignition |
Intake gas pressure required | 100-400kPa |
Bore´Stroke | 190´210 mm |
Speed Governor | (Woodward) EGS-02 Electric governor |
Oil consumption | £ 0.6g/kWh |
Total lubricating oil capacity (Liters) | 200L |
Exhaust temperature (before turbine) | £ 680 °C |
Heavy overhauling period | 36,000h |
MAIN SPECIFICATIONS OF ALTERNATOR
Alternator model | Exciting model | Insulation class | Connection | Cooling | Structure type |
1FC5456-6TA42 (SIEMENS) | Brushless | Class F | 3-phase, 4-wire | Air cooled | AVR and reactive droop regulator assembled in alternator |
(Kindly Noted: data shown in above table tested under standard working condition: 25 Dec C, atmospheric pressure 100kPa, relative humidity 30%, altitude <1000m.)
After Sale Service

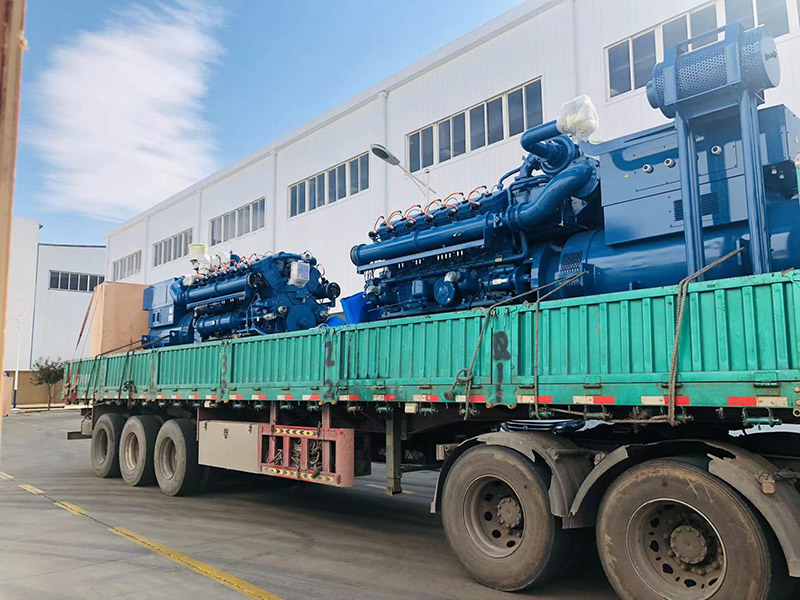

Packing&Delivery
Packing&Delivery：WOODEN CASE/PLYWOOD CASE
1) Genset would be included with plywood containers ;
2) Control panel, batteries, electric powered cables are packed with plywood containers or cartons;
3) Exhaust pipes, engine mufflers are put in the container except packing.
