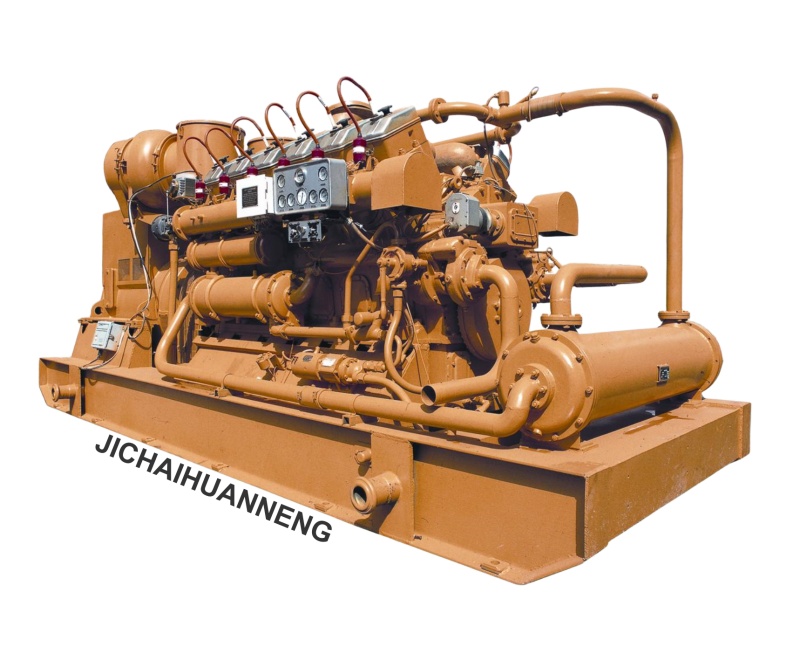

400kW LNG Engine Generator
1、High intelligence
2、Low heat consumption
3、High power generation
4、Convenient
5、Long service life
400kW LNG Engine Generator
Details
Main specification of gas generator
Genset model | 400GF-T |
Alternator model | Brushless excitation,Automatic voltage regulation. |
Panel model | GPL400 |
Rated power | 400KW |
Rated voltage | 400V/480V/6300V/10500/13800 |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Production class | IP23 |
Insulation class | H |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized frequency regulation | 0~5% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 4566mm*2040mm*2195mm |
Net weight | 11300kg |
Main specification of gas engine
Engine model | 12V190DT-2 |
Type | Four strokes,V-type,water cooling,spark plug ignition,electric controller,outer mixed |
Number of cyliner | 12 |
Bore | 190mm |
Stoke | 210mm |
Total displacement | 71.5L |
Rated speed | 1000/1200r/min |
Rated power | 450KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤11386kJ/kW·h |
Oil consumption | ≤0.8g/kW·h |
Exhaust tem.(before turbine） | ≤680℃ |
Water oulet temperature | ≤90℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | 0~5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |

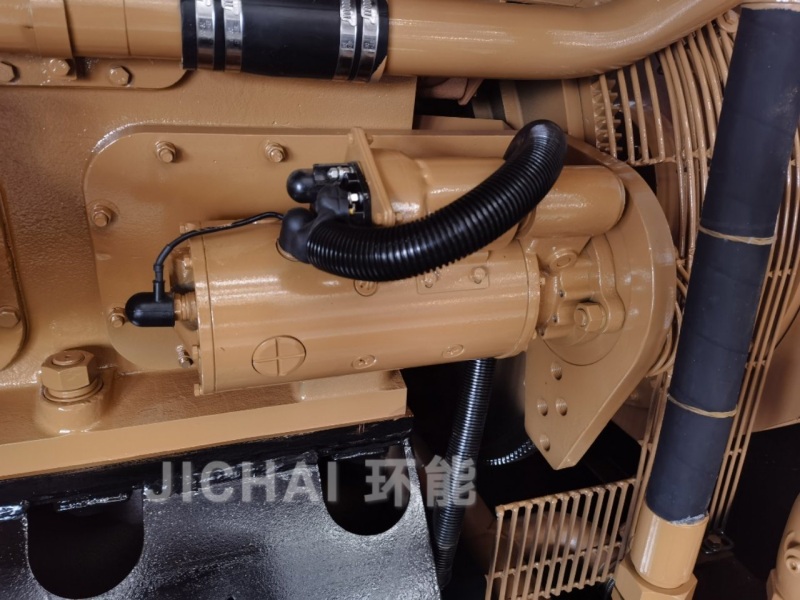

Starting mood | Electric starting |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Certification

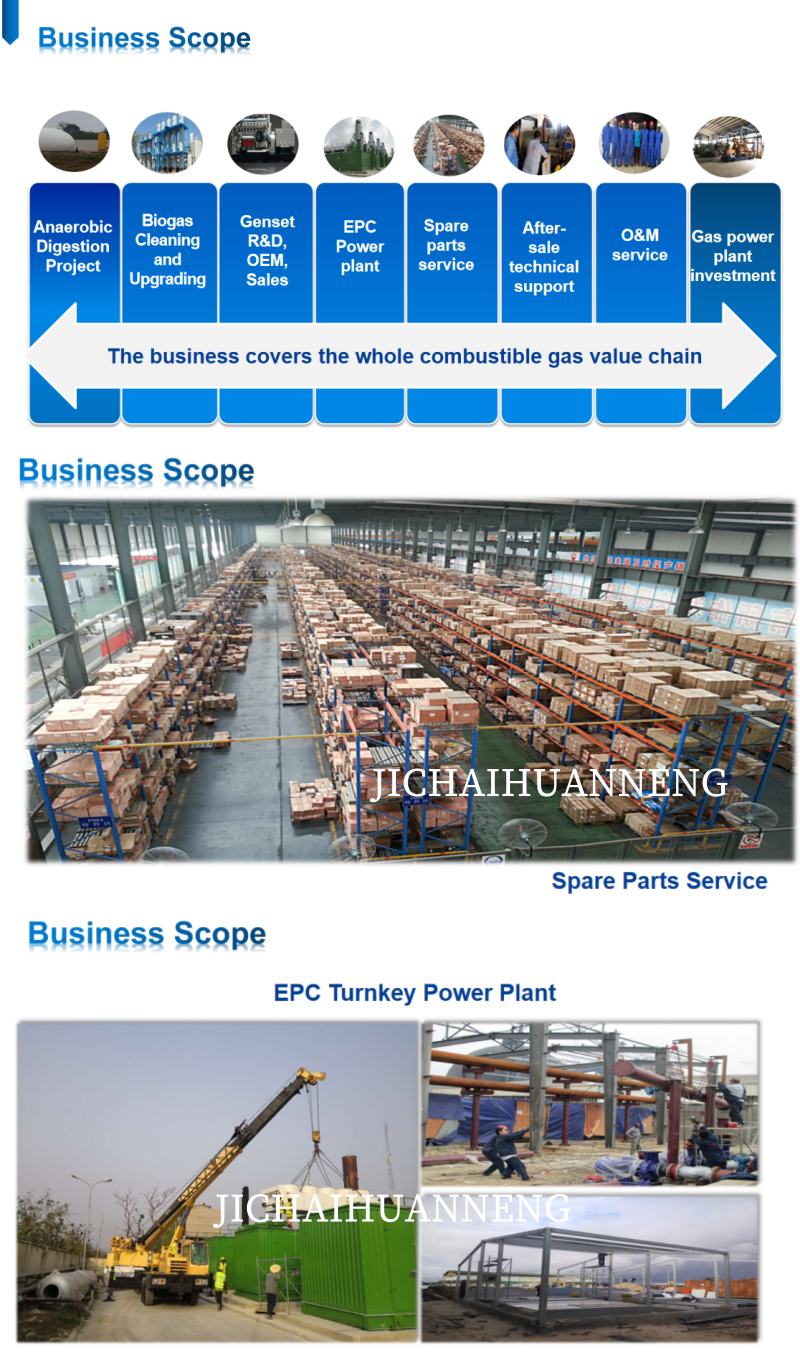

Business scope

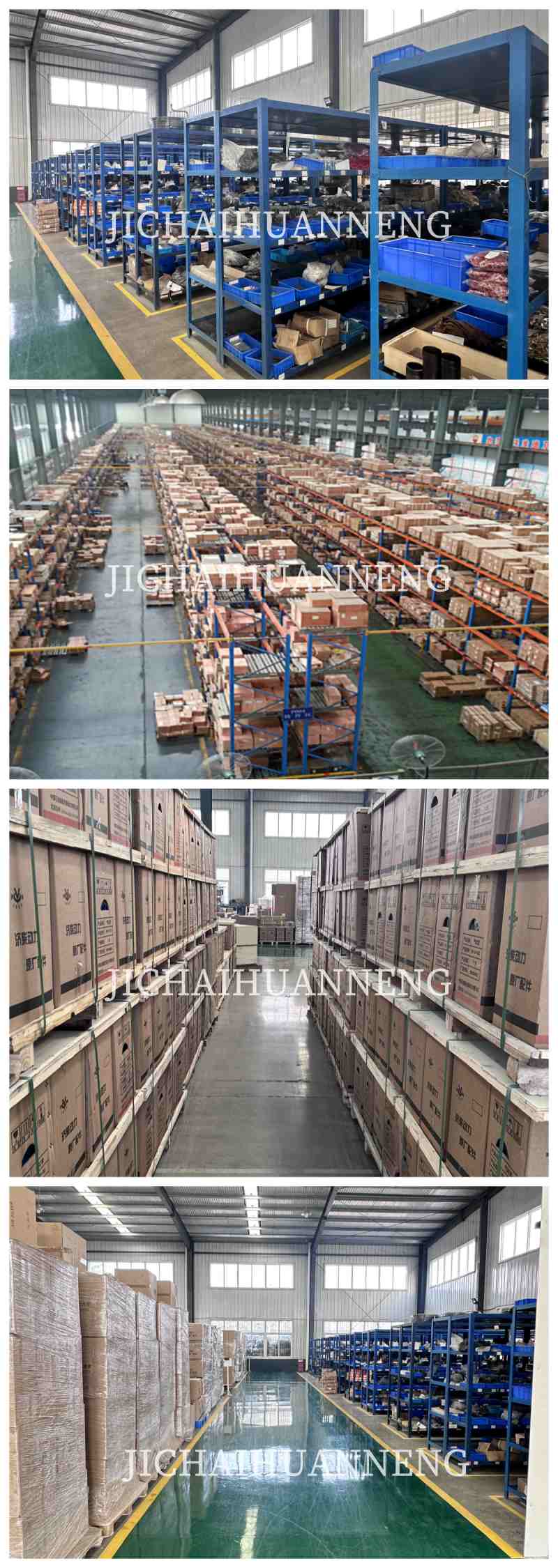

Warehouse
