2MW Container Gas Engine Generator
1）Low noise advantage:silent type realize below 75 decibels meet to international standards; super silent type realize 65 dB below reached the military standards.
2)Door and window well sealing:Seamless with stainless steel hinges and high elastic sealing tape make the generator set with a close sealed gap.
3)Weather resistance:Silent shield adopts with high-performance stainless steel door locks which open more convenient and improve the weathering performance of the machine.
4)Strength advantage:The main components of the silent shield use the standard GB cold-rolled steel and die-casting molds which greatly enhance the overall strength of the product and service life.
In order to meet the control requirements of urban environmental and industry noise, our company has been committed to the R & D design, innovation, production and manufacturing of silent type Gen-set and super-silent type Gen-set and noise attenuating room. Equipped with world class R&D center and laboratory, JCHN Company has became an international technology exchange platform of soundproof generator set, which always lead the development innovation of silent Gen-sets standards. At the International Exhibition, we have communicated with our same occupation deeply, and always stand on top of the international exchange platform. We have great confidence to contribute to technological development and make progress for China silent type generator set.

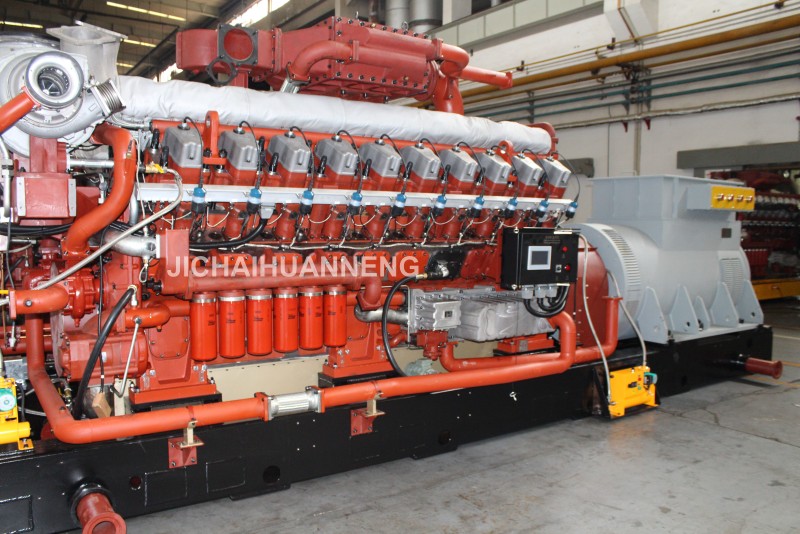

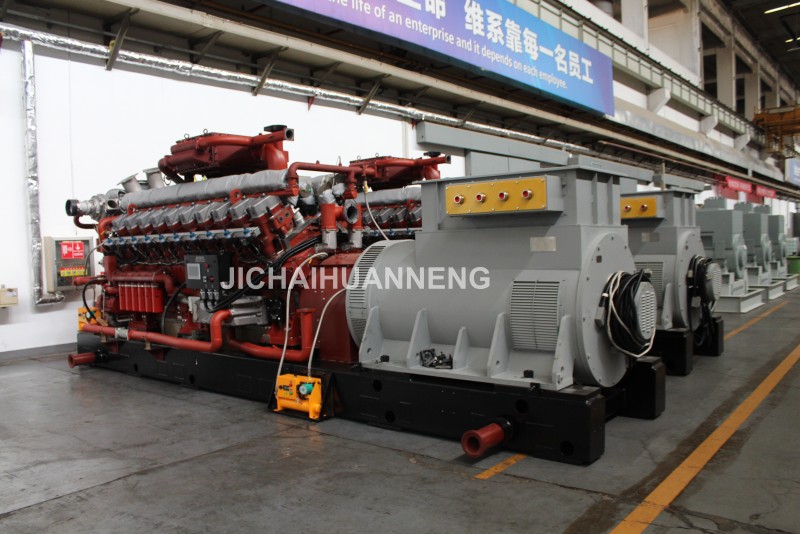

2000kW NATUTAL Engine Generator
Silent container gas engine generator set adopts the most advanced modular design as a whole, each work-piece is strictly in accordance with the design requirements. Each is processed under one-time stamping molding, so that each of the output of the work-piece, each product is the standard. Each well-designed work piece is made up of several components joined by high-strength stainless steel bolts, which greatly improves the production efficiency and improves the standard of the product tooling, which makes the product quality more excellent.
Main specification of gas generator
Genset model | 2000GF10-T |
Alternator model | Brushless excitation,Automatic voltage regulation. |
Panel model | GPL2000 |
Rated power | 2000kW |
Electrical Efficiency | ≥40% |
Rated voltage | 400V/480V/6300V/10500V/13800V |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Protection Class | IP23 |
Isolation class | H |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 7500mm*2300mm*2800mm |
Net weight | 30000kg |

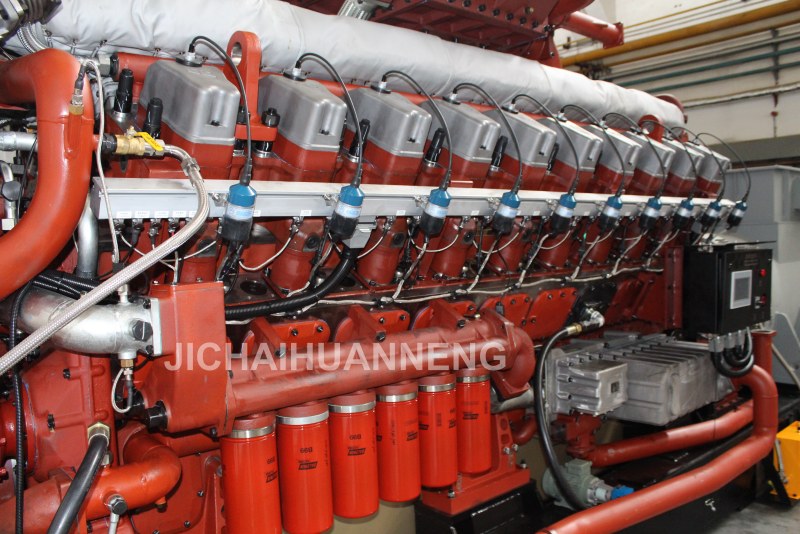

Main specification of gas engine
Engine model | L20V190ZLZ-2 |
Type | Four strokes,Vshape,turbocharged intercooling，spark plug ignition. |
Number of cyliner | 20 |
Bore | 190mm |
Stoke | 255mm |
Total displacement | 144.6L |
Rated speed | 1000r/min |
Rated power | 2200KW |
Idle speed | 700r/min |
Heat rate | 100-400KPa |
Lube consumption | ≤8600kJ/kW·h |
Oil consumption | ≤0.3g/kW·h |
Exhaust tem.(before turbine） | ≤640℃ |
Water oulet temperature | ≤95℃ |
Water inlet temperature of intercooler | <45℃ |
Lube temperature | <100℃ |
Stabilized speed droop | 0-5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start/Air start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 60000h |
NOx | ≤500mg/N㎡ |
Certification

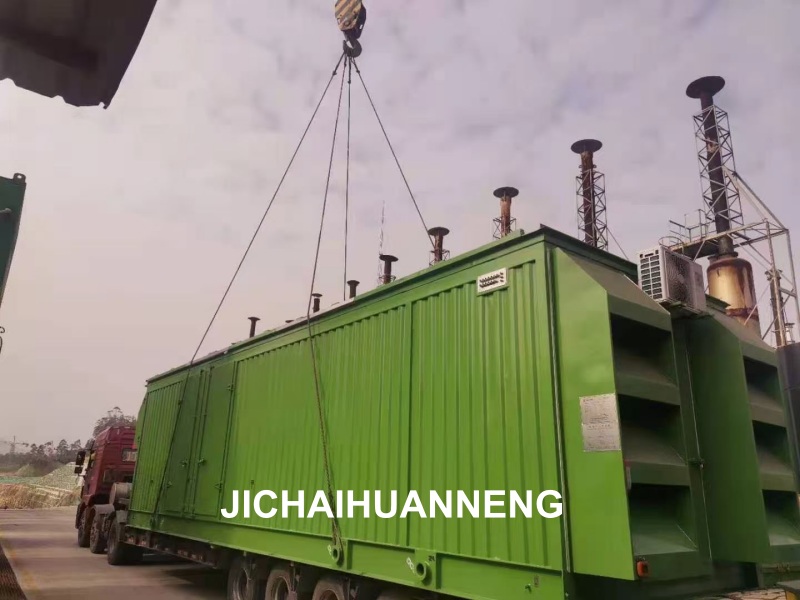

Delivery
