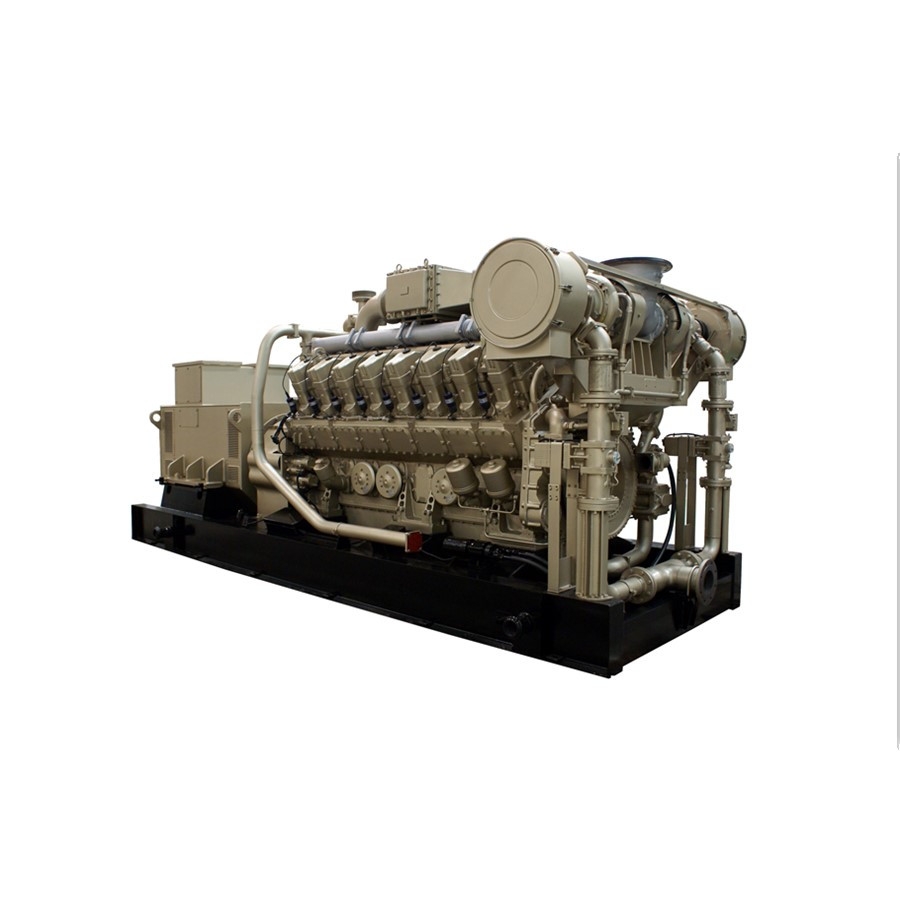

1000GF-T 12V200 Gas Engine Generator
1.Ease of Serviceability
2.Longer Service Life
3.Cleaner Emissions
Jichai Brand Generator is designed and manufactured to be state-of-the-art technology,higher energy efficiency,sustainable high performance,ease of serviceability,longer service life,cleaner emissions.
Main Specification Of Gas Generator
Model | 1000GF-T |
Engine model | L12V200ZLT-2 |
Rated power | 1000KW/1250KVA |
Rated frequency | 50/60Hz |
Power factor | 0.8(Lag) |
Rated voltage | 400/6300/10500V |
Rated speed | 1000r/min |
Oil consumption | ≤1.0g/kWh |
Starting method | Electrical starter DC24V |
Cooling method | Closed water cooling |
Control method | Electric control |
Connection method | High elastic coupling |
Steady state voltage adjustment rate | <±2.5% |
Voltage fluctuation rate | ±0.5% |
Transient voltage adjustment rate | -15%～+20% |
Voltage stability time | 1.5s |
Steady state frequency regulation | 0～5%（adjusting） |
Frequency fluctuation rate | 0.5% |
Transient frequency adjustment rate | ±10% |
Frequency stability time | 7 s |
Dimension | 5800*1760*2800mm |
Weight | 18.5t |
Main specification of gas engine
Model | L12V200ZLT-2 |
Fuel | Natural gas |
Type | 4-stroke, spark plug, turbocharge、inter cooling |
Cylinder No & Displacement | 12-cylinder,V type |
Bore*Stroke | 200mm×255mm |
Rated speed | 1000r/min |
Rated power | 1100kW |
Gas pressure | 1～4bar |
Gas consumption rate | ≤9000kJ/kWh |
Oil consumption rate | ≤1.0 g/kW·h |
Lubrication method | Force and splash lubricating |
Starting method | Electrical DC24V |
Rotation direction | Counterclockwise (facing the flywheel) |
Main Performance Index of gas engine generator
Steady state voltage regulation | Unit operation：±1% Parallel operation：±2.5% |
Transient voltage regulation | -15%～+20% UN |
Overload | 110% Rated load 1 hour( 6hours/cycle ) |
Overcurrent multiple | 1.5IN, 2 minutes |
Ability to maintain short-circuit current | The excitation system provides three times the rated current for continuous current, and the generator must be unloaded after 5 seconds |
After sale Service
1. Develop the most appropriate preliminary format based totally on the unique wishes of the customer
2. Provide engineering sketch and debugging education for users
3. Improve after-sales carrier
