1600KW Coal Mine Gas Engine Generator
1、Low pressure gas,
2、High intelligence
3、Low heat consumption
4、High reliability
5、Low emissions
6、long life
7、High power and high performance
The 1600kW Coal Mine Gas Engine Generator adopts - H20V190ZLT engine, which is one type of pretty intelligent, low warmth consumption, excessive reliability.
Genset model | 1600GF-Z |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1600 |
Rated power | 1600kW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%（-15） |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 7500mm*2300mm*2800mm |
Net weight | 29000kg |
Engine model | L20V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 20 |
Bore | 190mm |
Stoke | 255mm |
Total displacement | 144.6L |
Rated speed | 1000r/min |
Rated power | 1750KW |
Idle speed | 700r/min |
Gas pressure | 7-9KPa |
Gas consumption | ≤8600kJ/kW·h |
Oil consumption | ≤0.3g/kW·h |
Exhaust tem.(before turbine） | ≤640℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5 |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | DC24V Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |

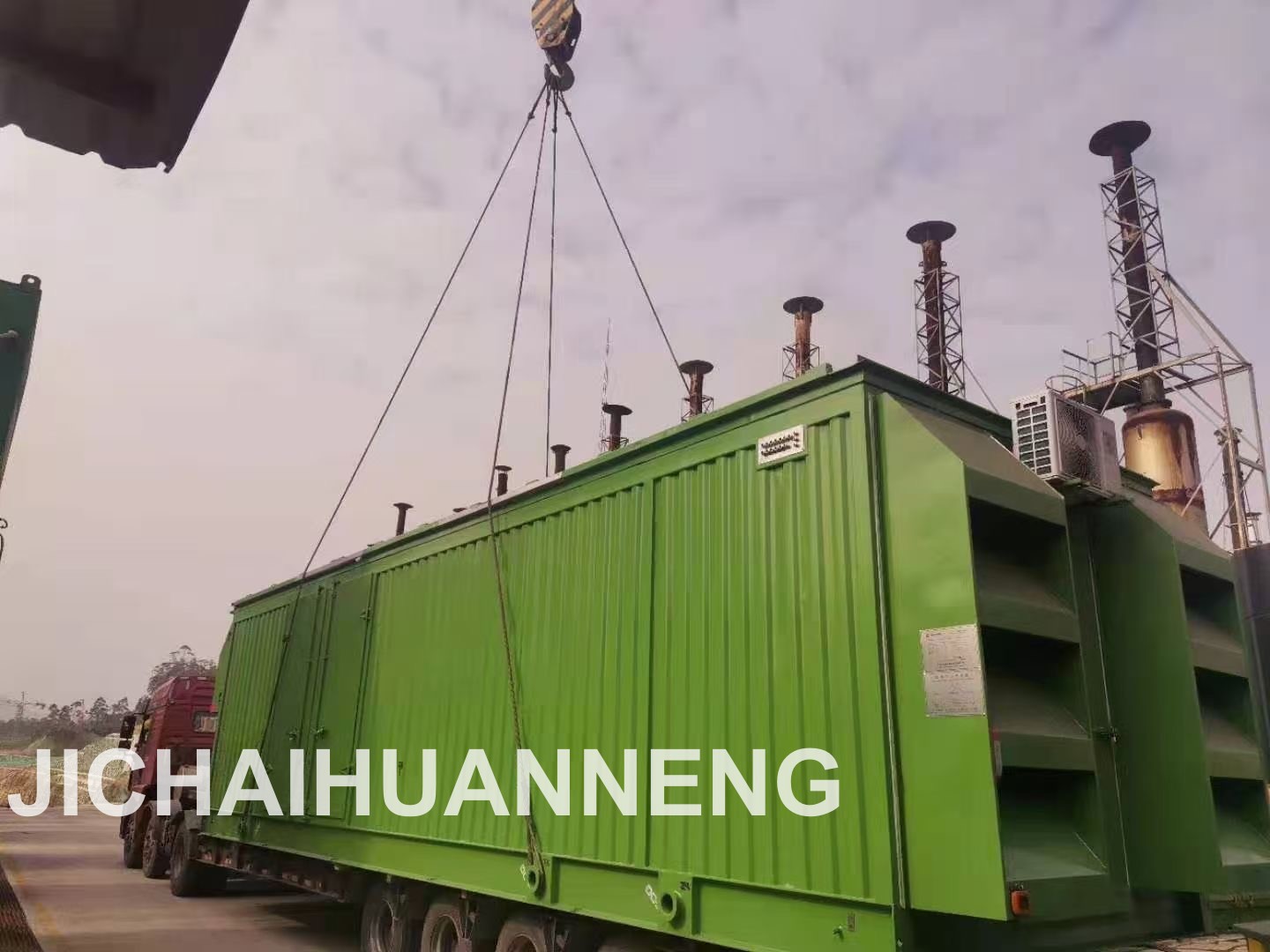

Packing&Delivery
