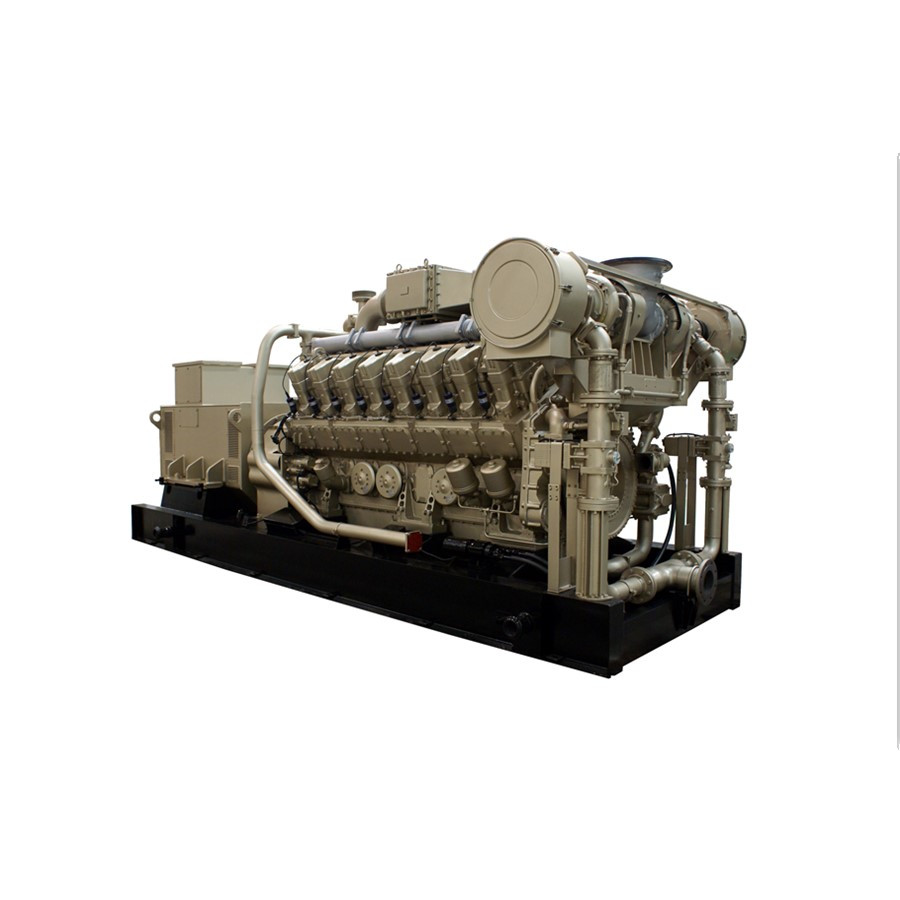

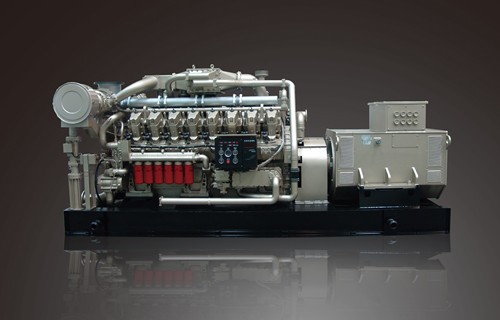

1100kW Coal Mine Gas Engine Generator
Highly intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine,big bore of 190mm ensures its continuous constant power output,middle speed of 1000rpm ensures the service life,natural aspiration ensures the safety of coal bed methane delivery.
1100kW Coal Mine Gas Engine Generator adopts H16V190 engine,which is highly intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine,big bore of 190mm ensures its continuous constant power output,middle speed of 1000rpm ensures the service life,natural aspiration ensures the safety of coal bed methane delivery.
Genset model | 1100GF-W |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1100 |
Rated power | 1100KW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%(-15) |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 6198mm*2540mm*2180mm |
Net weight | 21000kg |
Engine model | H16V190ZLW-2 |
Type | Four strokes,Vshape,turbocharged intercooling,spark plug ignition. |
Number of cyliner | 16 |
Bore | 190mm |
Stoke | 215mm |
Total displacement | 97.53L |
Rated speed | 1000r/min |
Rated power | 1100KW |
Idle speed | 700r/min |
Gas pressure | 7-9KPa |
Gas consumption | ≤9500kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine) | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5 |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise(face to flywheel) |
Products Service
1.Efficient meticulous technical services
2.Adequate spare parts
3.Round-the-clock after sale service
Delivery

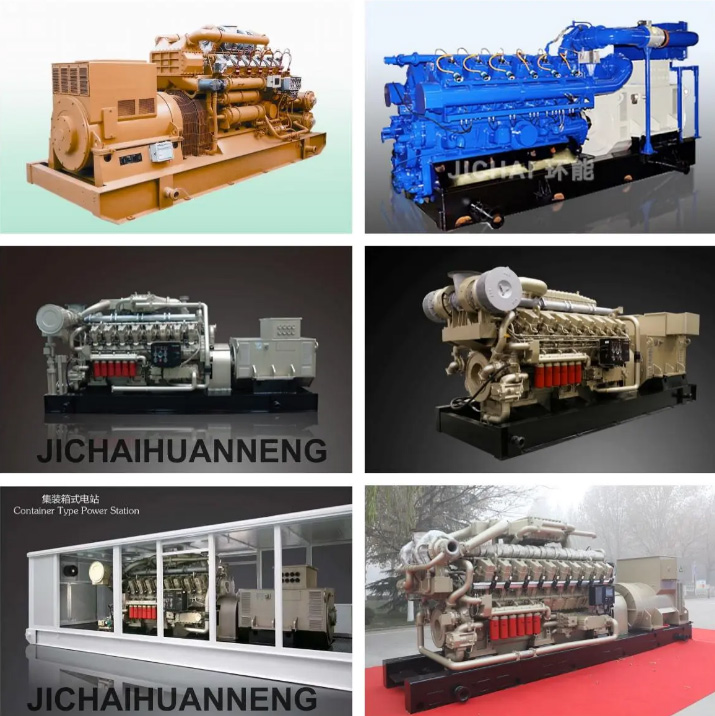

Hot-sale Products
