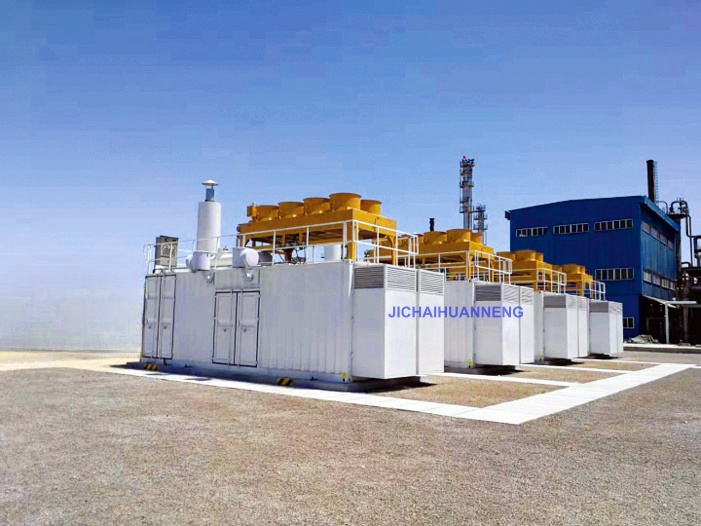

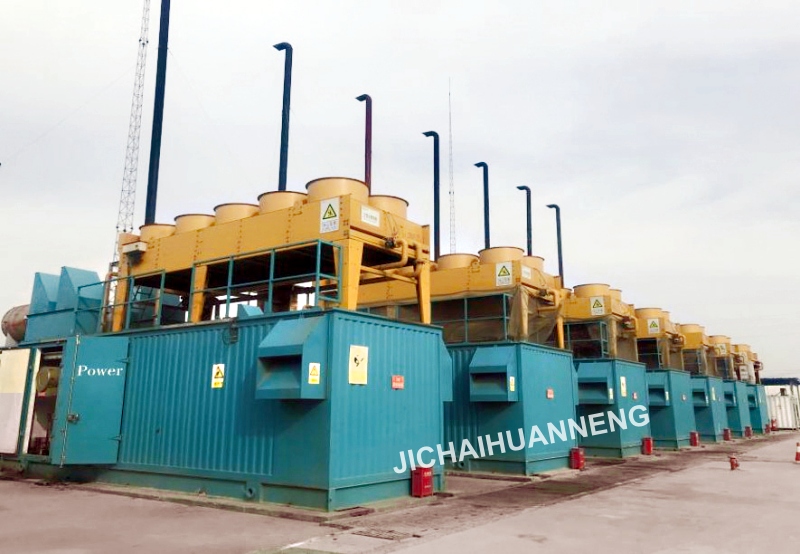

1MW Natural Gas Power Plant
Advanced configuration keep accurate ans stable working condition under high speed working speed
High generalization, easy maintenance, low maintenance cost.
Economical, low operating cost
Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
Suitable for differnt concentration methane and propane, variety of quality gas.
Precise air-fuel ratio rarefied combustion control and Generator speed/load control
Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.
1MW Natural Gas Power Plant
Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.
Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.

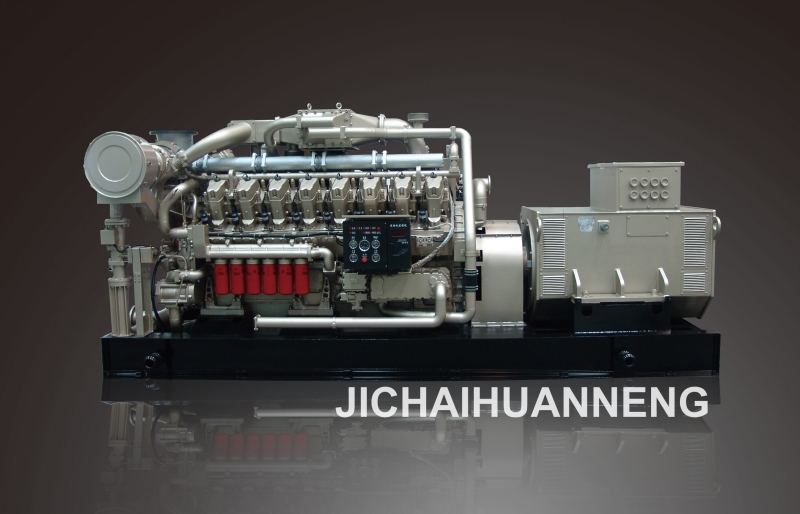

1.Main Specification of Generator set
Model of generating set | 1000GF-T |
Model of engine | 16V190ZDT-2 |
Rated power(kw) | 1000 |
Rated speed r/min. | 1000 |
Rated voltage (V) | 415/240 |
Rated frequency (Hz) | 50/60 |
Rated power factor | 0.8 |
Supply method | 3 phases 4 wires |
Excitation method | brushless |
Starting method | 24V DC starter |
Speed modulate method | Electronic control |
Cooling method | Water cooling system |
Net weight Net weight (kg) | 11800 |
2.Main Specification of Alternator
Model | 1FC5456-6TA42 (SIEMENS technology) |
Rated power(kw) | 500 |
Rated voltage(V) | 415 |
Rated current(A) | 870 |
Rated frequency(Hz) | 50/60Hz |
Power factor | COS=0.8(lagging) |
Rated speed | 1000 r/min |
Efficiency | 95 % |
Phase | 3 |
Connection | 3 phases 4 wires |
Excited method | brushless |
Insulation class | F |
Class of protection | IP23 |
Cooling | A fan at the drive end draws the cooling air |
Working model | Continues working(S1) |
Coupling | Elastic |
Bearing | Rolling bearing, 2PCS |
3.Main Specification of Engine
Model | 16V190ZDT-2 |
Rated power(kw) | 1000 |
Rated speed(r/min) | 1000 |
No. and layout of cylinders | 16-cylinder, 60° Vee |
Type | Four stroke, water cooled, turbocharged and after-cooled, pre-combustion chamber type spark plug, mix before compressor |
Type of combustion | Lean burn |
Gas pressure(bar) | 1-4 |
Gas consumption(Nm³/kwh) | 0.3 |
Specific oil consumption (g/kwh) | 1 |
Oil capacity (L) | 200 |
Bore(mm) | 190 |
Stroke(mm) | 210 |
BMEP(bar) | 9.26 |
Compression ratio | 8:1 |
Total displacement(L) | 71.5 |
High temperature water capacity (L) | 250 |
Low temperature water capacity (L) | 150 |
Emission | Meet IMO code |
Exhaust temperature (before turbine ℃) | ≤650 |
Direction of rotation | Counter-clockwise (facing to flywheel) |
Intake air flow(m³/h) | 2077 |
Exhaust gas flow(m³/h) | 2227 |
Lubrication method | Pressure and splash lubrication |
Overhauling time(H) | 30000 |
High Configuration:
Ignition system: ALTRONIC(USA)
Starting system: DC24V electric motor.
Mixer: IMPCO(USA)
Sparking plug:STITT
Engine Control System: Woodward(USA), HEINZMANN(Germany)
Electric Control System: IG-NT(Czech Republic) ComAp(Czech), Deepsea(UK)
Alternator: Siemens, LEROY-SOMER, Marathon
Service：
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:

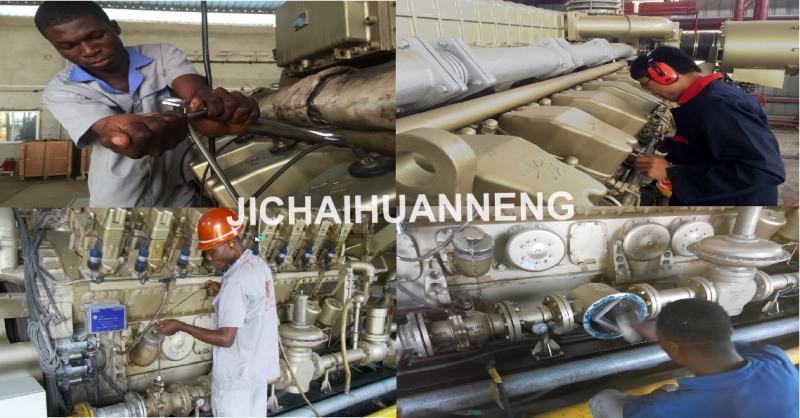

A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.
4.Spare parts service:
A.All spares parts on our gensets supplied by JDEC.
JDEC (Jinan Diesel Engine Co., Ltd) is the only internal combustion engine manufacturing enterprise under CNPC (China National Petroleum Corporation).
B. Free spare parts together with genset when shipping.
Workshop
Making full use of the technical advantages to hold international advanced manufacturing technologies and equipments, which greatly guarantee the quality and performance of products.
![company01_b[1].jpg](https://sc01.alicdn.com/kf/HTB1HjjjKpXXXXbyXXXXq6xXFXXX0/200318996/HTB1HjjjKpXXXXbyXXXXq6xXFXXX0.jpg)
![company03_b[1].jpg](https://sc01.alicdn.com/kf/HTB1pIyPKpXXXXXPaXXXq6xXFXXXG/200318996/HTB1pIyPKpXXXXXPaXXXq6xXFXXXG.jpg)
All our generator sets are manufactured, assembled, tested, under strict quality control procedure. The generator set is desirable for industrial power solution. Here are some certificates we have got.
