1000kw CNG Powered Electricity Generator Set
Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.Our products have exported to more than 50 countries and regions.
Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.Our products have exported to more than 50 countries and regions.
1.Main Specification of Generator set
Model of generating set | 1000GF-T |
Model of engine | 16V190ZDT-2 |
Rated power(kw) | 1000 |
Rated speed r/min. | 1000 |
Rated voltage (V) | 415/240 |
Rated frequency (Hz) | 50/60 |
Rated power factor | 0.8 |
Supply method | 3 phases 4 wires |
Excitation method | brushless |
Starting method | 24V DC starter |
Speed modulate method | Electronic control |
Cooling method | Water cooling system |
Net weight Net weight (kg) | 11800 |
2.Main Specification of Alternator
Model | 1FC5456-6TA42 (SIEMENS technology) |
Rated power(kw) | 500 |
Rated voltage(V) | 415 |
Rated current(A) | 870 |
Rated frequency(Hz) | 50/60Hz |
Power factor | COS=0.8(lagging) |
Rated speed | 1000 r/min |
Efficiency | 95 % |
Phase | 3 |
Connection | 3 phases 4 wires |
Excited method | brushless |
Insulation class | F |
Class of protection | IP23 |
Cooling | A fan at the drive end draws the cooling air |
Working model | Continues working(S1) |
Coupling | Elastic |
Bearing | Rolling bearing, 2PCS |
3.Main Specification of Engine
Model | 16V190ZDT-2 |
Rated power(kw) | 1000 |
Rated speed(r/min) | 1000 |
No. and layout of cylinders | 16-cylinder, 60° Vee |
Type | Four stroke, water cooled, turbocharged and after-cooled, pre-combustion chamber type spark plug, mix before compressor |
Type of combustion | Lean burn |
Gas pressure(bar) | 1-4 |
Gas consumption(Nm³/kwh) | 0.3 |
Specific oil consumption (g/kwh) | 1 |
Oil capacity (L) | 200 |
Bore(mm) | 190 |
Stroke(mm) | 210 |
BMEP(bar) | 9.26 |
Compression ratio | 8:1 |
Total displacement(L) | 71.5 |
High temperature water capacity (L) | 250 |
Low temperature water capacity (L) | 150 |
Emission | Meet IMO code |
Exhaust temperature (before turbine ℃) | ≤650 |
Direction of rotation | Counter-clockwise (facing to flywheel) |
Intake air flow(m³/h) | 2077 |
Exhaust gas flow(m³/h) | 2227 |
Lubrication method | Pressure and splash lubrication |
Overhauling time(H) | 30000 |

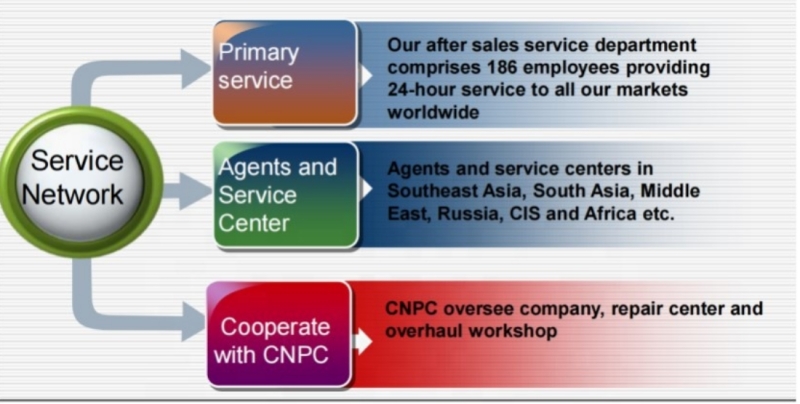

After-sale service
