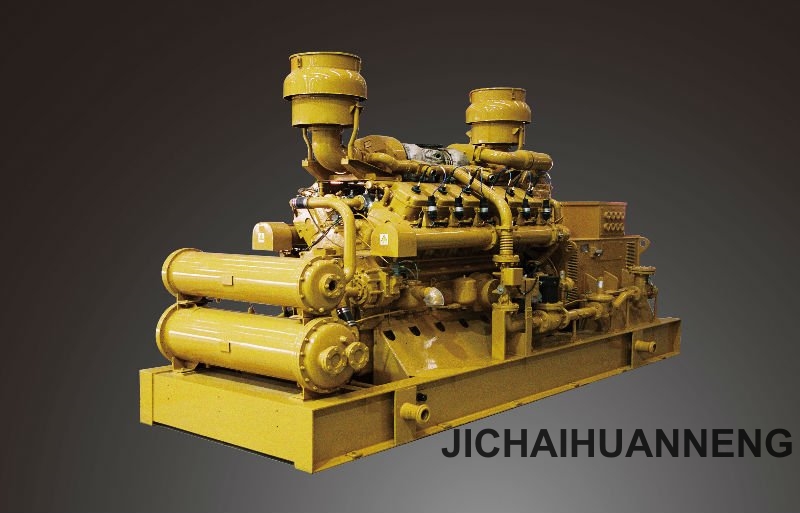

350kW Biomass Engine Generator
1.Generation of renewable strength from wastes
2.Reduction of carbon emissions
3.Economical on website electrical energy manufacturing and decreased transmission losës
4.Cost effective, tested technology
A) The output voltage can be 400V, 6300V, 10500V, reducing the preliminary funding and walking cost.
B) Big bore of 190mm ensures its continuous normal electricity output.
C) Middle speed of 1000rpm ensures the company life.
D) Easy renovation and low noise.
MAIN SPECIFICATIONS OF GAS GENERATOR SET
Model | 350GFM | Gas Engine Model | 12V190ZL | |
Rated power | 350kw | Alternator | synchronous brushless generator | |
Rated voltage | 400 V | Insulation class | F | |
Rated speed | 500rpm | Voltage regulation | Automatic | |
Rated frequency | 50Hz | Class of protection | IP23 | |
Rated current | 631A | Cooling method | Water cooling with radiator and fan | |
Power factor | 0.8 Lagging | Dimension (mm) | 5750×2650×2500mm | |
Control mode | Electric control | Net Weight (kg) | 11800 Kg |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
Voltage | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
±2.5% | +20% | 2 S | 1% |
Frequency | |||
Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
0-5% adjustable | ≤±10% | < 7 S | 1% |
MAIN SPECIFICATIONS OF GAS ENGINE
Model | 12V190ZL |
Rated power | 438 kW |
Rated speed | 1000 r/min |
Arrange of cylinder/bore of stroke | 190mm |
Stroke of piston | 210mm |
Intake gas pressure required | 7-9kPa |
Heat consumption | ≤11500 KJ/kW·h |
Speed Governor | Electric governor |
Oil consumption | £ 0.6g/kWh |
Ignition model | Spark plug ignition |
Exhaust temperature (before turbine) | ≤ 600ºC |
Start method | 24V DC |
SAFETY AND PROTECTION DEVICE OF THE GENSETS
Output voltage too low/too high alarm and stop | Single phase connection trouble alarm and stop |
Frequency too high/too low alarm and stop | Cooling water temp high alarm |
Reverse power alarm and break brake | Lubrication oil temp too high alarm |
Overload alarm and break brake | Lubrication oil pressure too low alarm and stop |
Over speed alarm and stop | Battery voltage too low alarm |
Blast prevention of air inlet and crankcase | Gas leaking protection |
CONTROL PANEL
Control panel is panel type, vertical structure, model is GPL350. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.
The Generator possesses the following automatic monitoring and protective functions:
A) Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Over current
- Short circuit
- Over-speed
- Reverse power
B) Shut-off for:
- Low oil pressure
- Over-speed
- Short circuit
- Over-speed
- Reverse power
C) Trip-off for:
- Over-current
- Short circuit
- Reverse power
The generator can not only supply power directly to load but also can be paralleled running.
OPTIONAL DEVICE
Steel Soundproof Container (sound attenuated canopy)
CHP/ Cogeneration/CCHP Trigeneration
ATS and Synchronization Parallelling Panel
Oil and Water Heater
Sale Service
1. Pre Sales: Solution Delivery
2. On sale: provision of technical services
3. Provision of after-sales full lifecycle technical services
Delivery
1) Gas engine generator would be covered with plywood boxes ;
2) Control panel, batteries, electric cables are packed with plywood boxes or cartons;
3) Exhaust pipes, engine mufflers are put in the container without packing.
