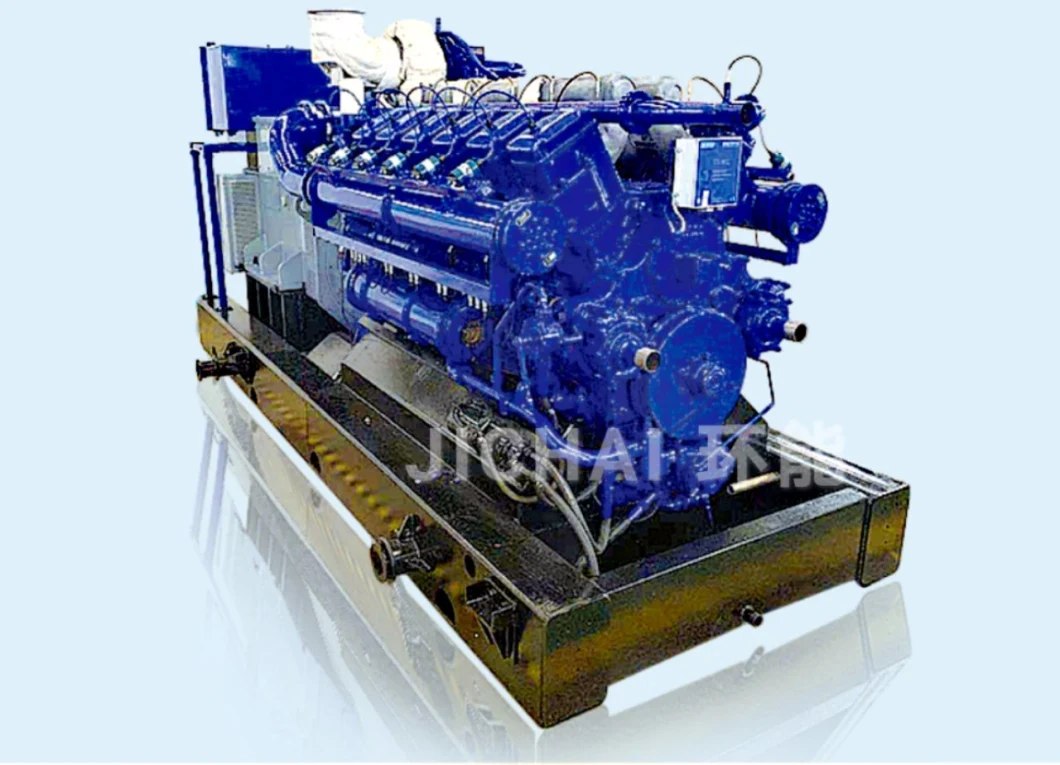

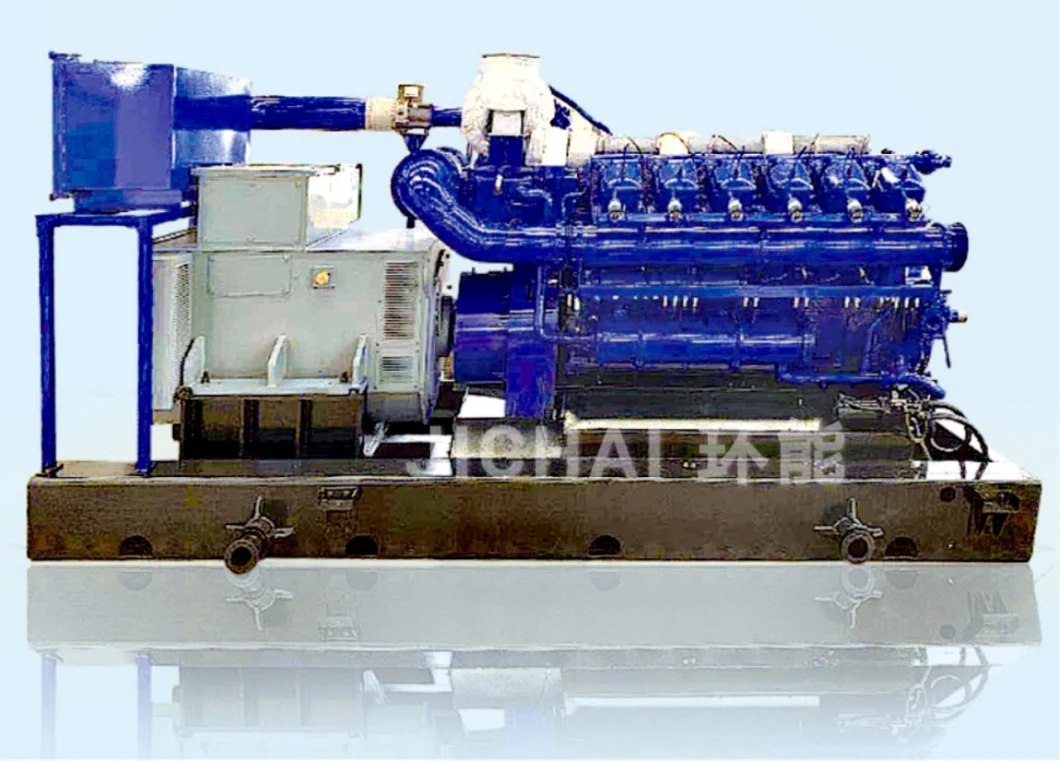

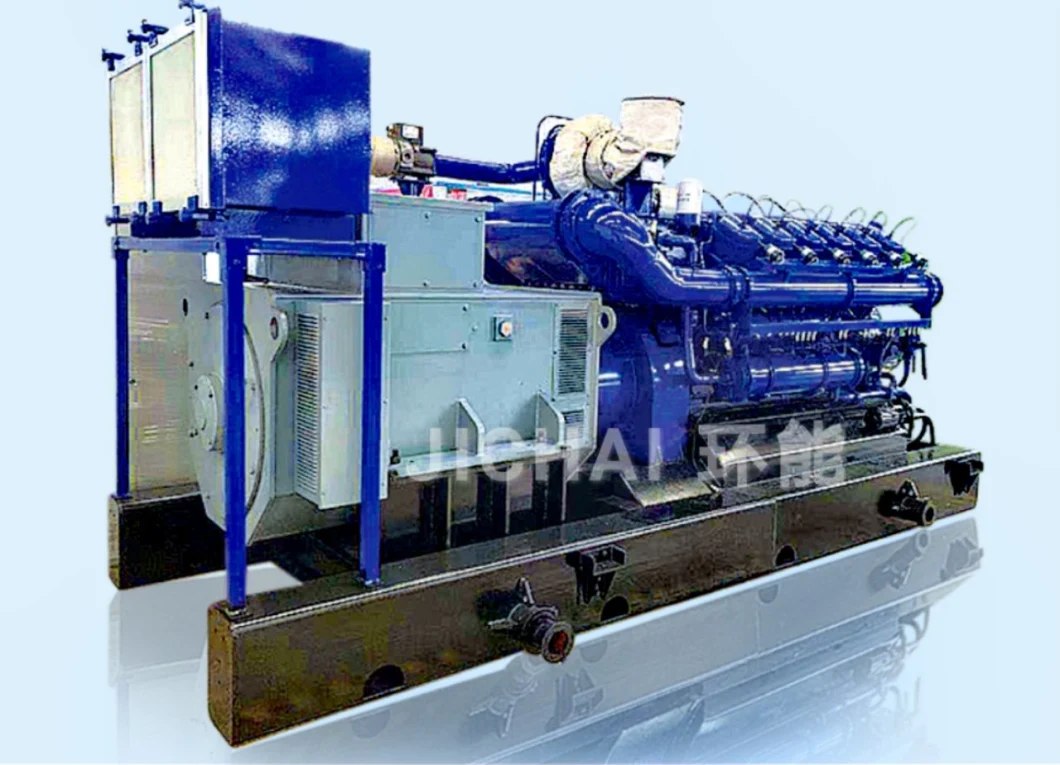

875kVA Biogas Engine Generator
The 875kVA 700kW Biogas Generator is geared up with 12V190ZL Gas engine as authentic power,which is designed and manufactured to be excessive quality, lengthy utilization life, convenient operation, low protection cost, excessive talent with low engine speed, low gas consumption, challenging environmental adaptability, excessive steadiness and low fluctuation. The generator is proper for industrial strength solution.
Biogas combustion power generation is a biogas utilization technology that has emerged with the continuous development of large-scale biogas digesters and comprehensive utilization of biogas. It uses the biogas generated by anaerobic fermentation treatment on the engine and is equipped with a comprehensive power generation device to generate electricity and heat energy. Biogas power generation has the characteristics of efficiency creation, energy conservation, safety, and environmental protection, and is a widely distributed and cost-effective distributed energy source.
Genset model | 700GF-Z |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL700 |
Rated power | 700KW |
Rated voltage | 400/6300/10500V |
Rated frequency | 50HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%（-15） |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized frequency regulation | 0~5% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 4770mm*2040mm*2249mm |
Net weight | 14500kg |
Engine model | G12V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 12 |
Bore | 190mm |
Stoke | 210mm |
Total displacement | 71.5L |
Rated speed | 1000r/min |
Rated power | 550KW |
Idle speed | 770r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤9500kJ/kW·h |
Oil consumption | ≤0.5g/kW·h |
Exhaust tem.(before turbine） | ≤580℃ |
Water oulet temperature | ≤90℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | 0~5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric starting |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
After Sale Service
1. Provide container design and power distribution design
2. Provide guidance for installation and debugging
3. Provide technical training and consultation for users' operation and maintenance personnel
4. Guide maintenance
5. Establish customer profiles for end users and track services
6. The company provides spare parts, and maintenance engineers provide technical assistance at any time
Packing&Delivery
Professional customized wooden boxes, export wooden boxes, moisture-proof and waterproof, can effectively solve long-distance sea transportation, maximizing the protection of products from external environmental influences during long-term sea transportation, and avoiding product rust.

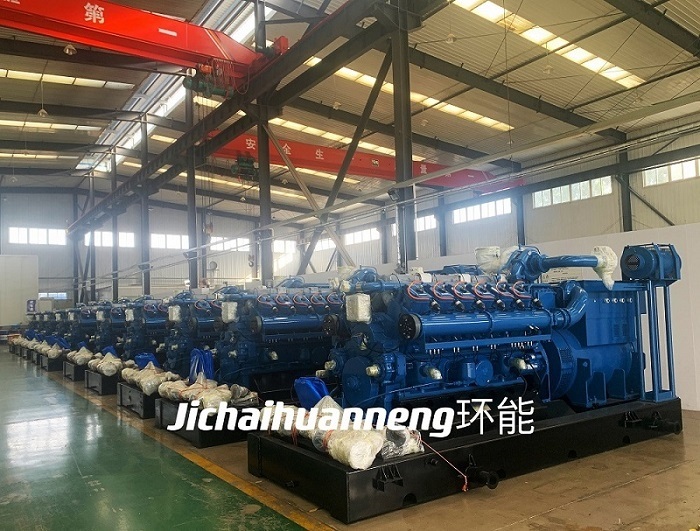

Production line
