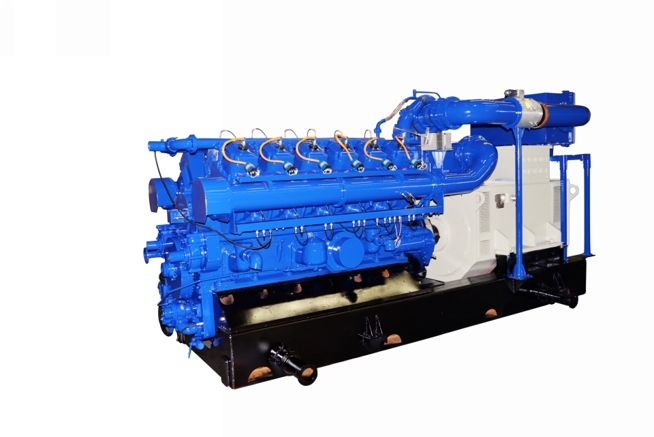

700GF-Z Biogas genenrator

700kW biogas generator is an progressive product in our product line. After years of committed research, the product integrates the prosperous profitable journey in 12V190 gas engine research. The automation functionality of the unit has been extensively enhanced.

Contact Now E-Mail Telephone
Product Details

The reliable computerized manipulate science of air-fuel ratio makes the unit have greater applicability of gas, power normal overall performance and economy, efficaciously limit the emission index, specially the software program of most effective manipulate system, make the unit start pretty in reality and manipulate reliably. Fully protected, handy to maintenance, the product occupies the predominant diploma in the country.

700GF-Z biogas generator is an progressive product in our product line. After years of devoted research, the product integrates the wealthy profitable trip in 12V190 gas engine research. The automation functionality of the unit has been appreciably enhanced.

700GF-Z Biogas genenrator

Genset model

700GF-Z

Alternator model

1FC series,siemens technology.Brushless excitation,Automatic voltage regulation.

Panel model

GPL700

Rated power

700KW

Rated voltage

400/6300/10500V

Rated frequency

50HZ

Rated power factor

0.8

Wiring mood

3 Phase 4 Wire

Stabilized voltage regulation

±2.5%

Transient state voltage regulation

+20%-15

Voltage stabilization time

≤1.5s

Fluctuation rate of voltage

≤1%

Stabilized frequency regulation

0~5%

Transient state frequency regulation

≤±10%

Frequency stabilized time rate

≤7s

Fluctuation rate of frequency

≤0.5%

Overall dimension

4770mm*2040mm*2249mm

Net weight

14500kg



Engine model

G12V190ZLZ-2

Type

Four strokes,Vshapeturbocharged intercoolingspark plug ignition.

Number of cyliner

12

Bore

190mm

Stoke

210mm

Total displacement

71.5L

Rated speed

1000r/min

Rated power

550KW

Idle speed

770r/min

Gas pressure

10-40KPa

Gas consumption

≤9500kJ/kW·h

Oil consumption

≤0.6g/kW·h

Exhaust tem.(before turbine

≤580℃

Water oulet temperature

≤90℃

Water inlet temperature of intercooler

<45℃

Oil temperature

<90℃

Stabilized speed droop

0~5%

Cooling mood

Open type-cooling tower/closed type-vertical or horizontal radiator

Lubrication method

Pressure and splash lubrication

Starting mood

Electric starting

Crankshaft rotation

Counter-clockwiseface to flywheel

 After Sale Service

1. Professional engineers grant pre-sales technical session for users

2. Cooperate with customers

3. Maintenance engineers provide technical help at any time

sale sevice

Packing&Delivery

WOODEN CASE/PLYWOOD CASE

Packing&DeliveryProduction line

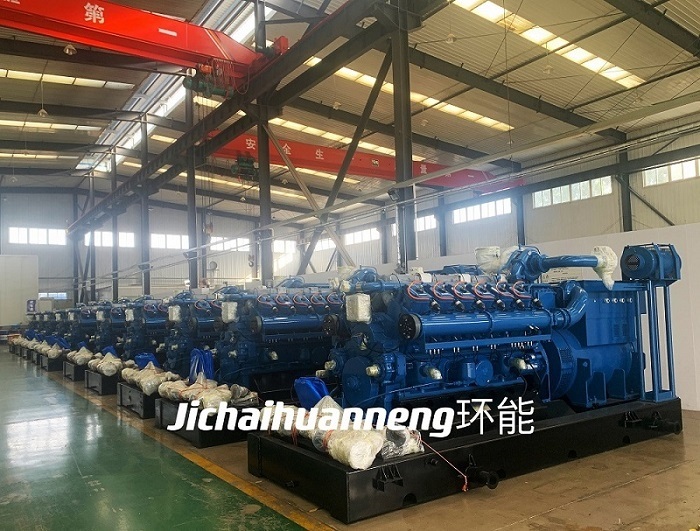

Production line
