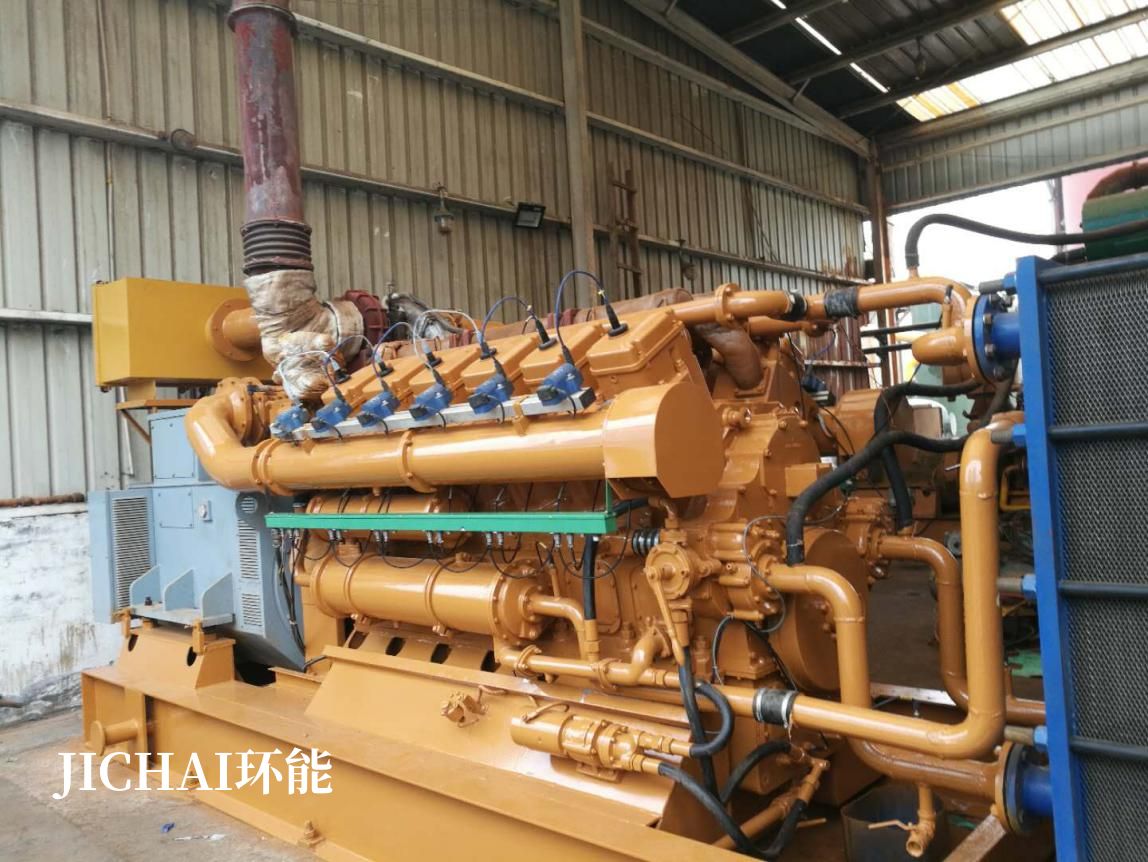

600kW Biogas Engine Generator
1、High intelligence
2、Low heat consumption
3、high reliability
4、High power generation efficiency
Biogas technological know-how is a new power complete utilization technological know-how that integrates environmental safety and electricity conservation. It makes use of a massive quantity of natural waste from industry, agriculture, or city existence (such as distiller's grains, cattle manure, city garbage, and sewage), and produces biogas thru anaerobic fermentation treatment. It drives the biogas generator set to generate electricity, and can absolutely make use of the waste warmth of the generator set for biogas production.
Genset model | 600GF-Z |
Alternator model | 1FCseries,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL600 |
Rated power | 600KW |
Rated voltage | 400V/480V/6300V/10500/13800 |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Production class | IP23 |
Insulation class | H |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%（-15） |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized frequency regulation | 0~5% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 5120mm*2040mm*2776.5mm |
Net weight | 13800kg |
Engine model | G12V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 12 |
Bore | 190mm |
Stoke | 210mm |
Total displacement | 71.5L |
Rated speed | 1000r/min |
Rated power | 550KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤11000kJ/kW·h |
Oil consumption | ≤0.8g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | 0~5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric starting |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
After Sale Service
1. Professional engineers provide pre-sales technical consultation for users
2. Cooperate with users to install and test the generator unit
3. Maintenance engineers are available to provide technical assistance at any time
Packing&Delivery
1) According to user needs, the generator set is packaged in the supporting machine room
2) Control panels, batteries, and cables need to be packaged in plywood cardboard boxes;
3) The exhaust pipes and engine mufflers are placed in unpackaged containers.
All products have undergone strict inspection before shipment, striving to achieve 100% customer satisfaction.

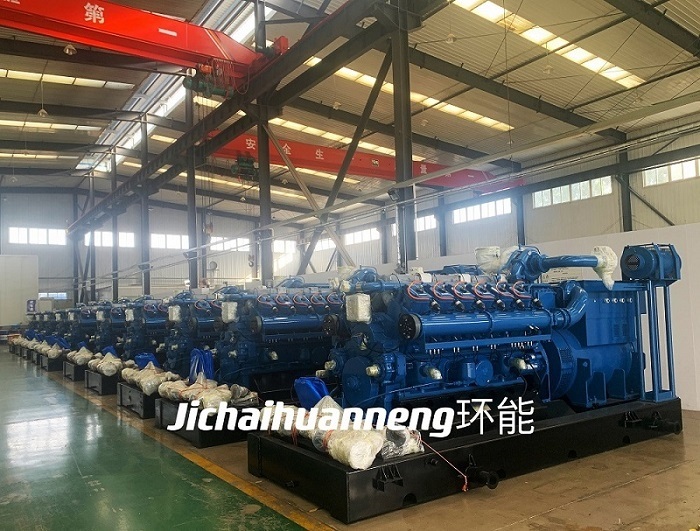

Production line
