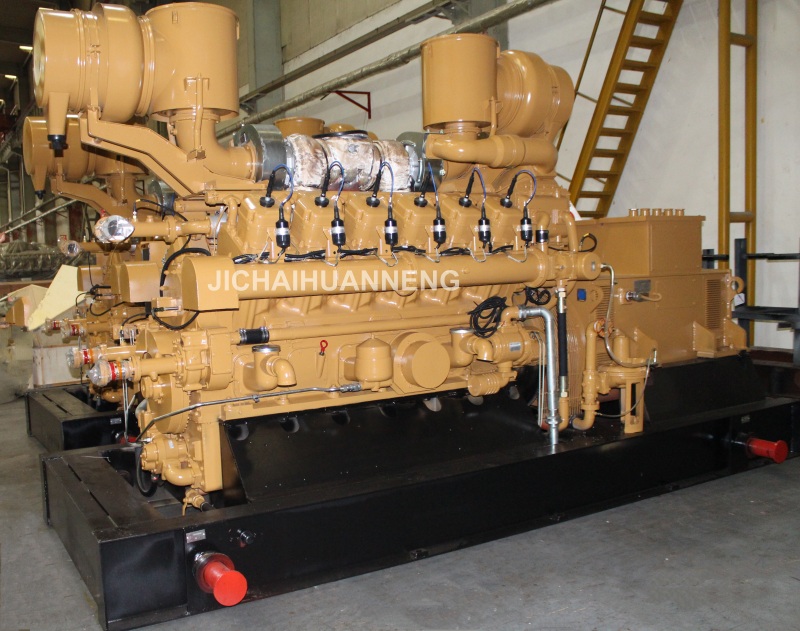

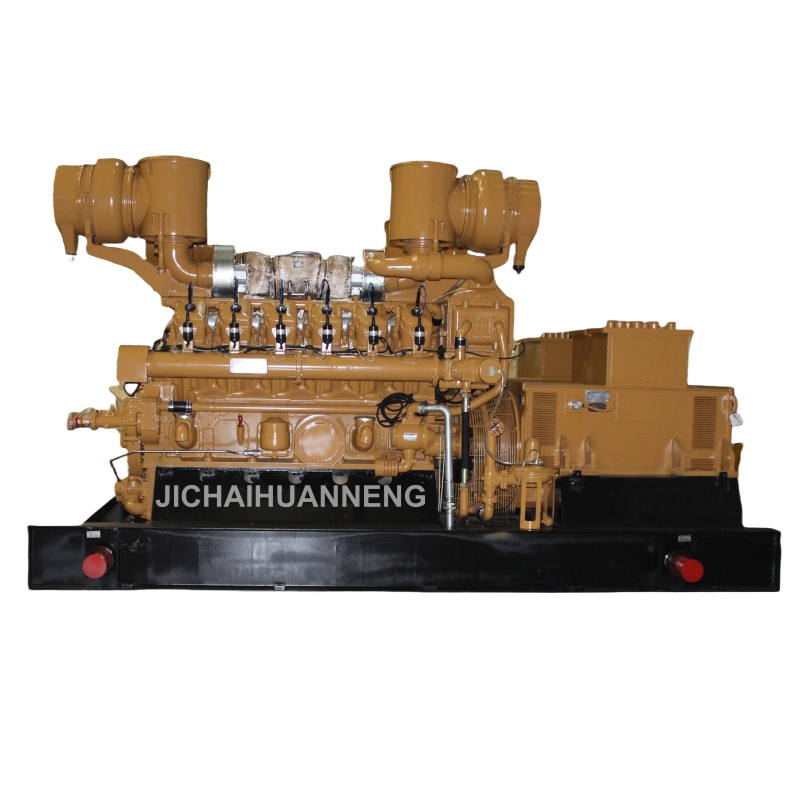

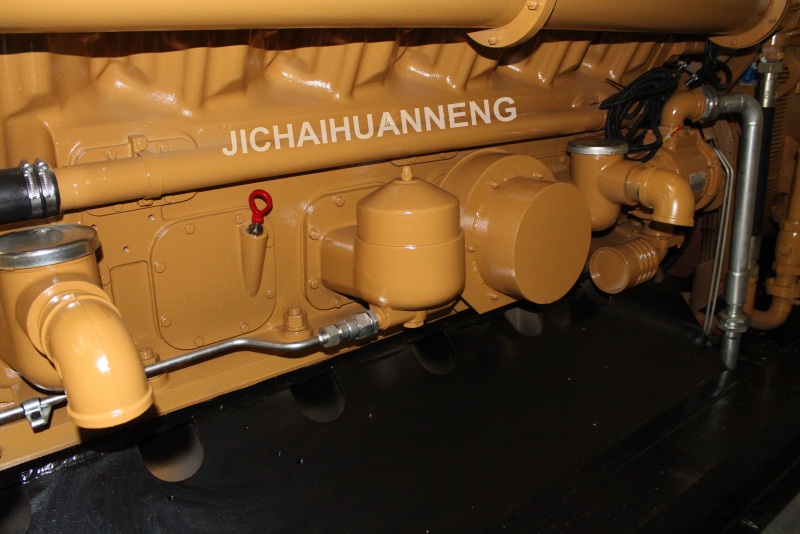

550kW Biogas Generator Set
Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adoptability, high stability and low fluctuation. The generator is desirable for industrial power solution.
600GF-T gas generator set adopts Siemens technology alternator, control panel of SIVAC based on GB2820-1997.JB/T 9583.1-1999 and IEC439, executing ISO9001 Quality system.
This generator adopts international advanced control system and technology.The dynamic property, economical efficiency and reliability are occupying advanced level.
Specification of main system
Engine type:
Four stroke, water cooled, turbocharger and inter-cooler, A/F controller, Spark Ignition, electronic control, outer mixing, Combine /Mix before Turbocharger, etc.
Air-gas mix system:
This system makes air-gas mixed as per required ratio via mixer and enter into cylinder. The pump-film vacuum type mixer could keep air-gas ratio stable during generator set operating under changed operation condition.
Cooling system:
Equipping integrated fan water tank. Fan water tank is installed on the common chassis.
Lubrication oil system:
The lubricating method is pressure and splash lubrication. This system includes main oil pump, pre-oil feed pump, oil filter, centrifuge filter, control, regulating valve and oil pipe. Pre-oil feed pump is provided to ensure drive part lubricating before start.
Air intake and exhaust system
Air intake and exhaust system includes: desert air filter, pipes. To improve intake air density and output power.
Starting system
600kW 600V gas generators equipped with compressed air starting system.
Ignition system

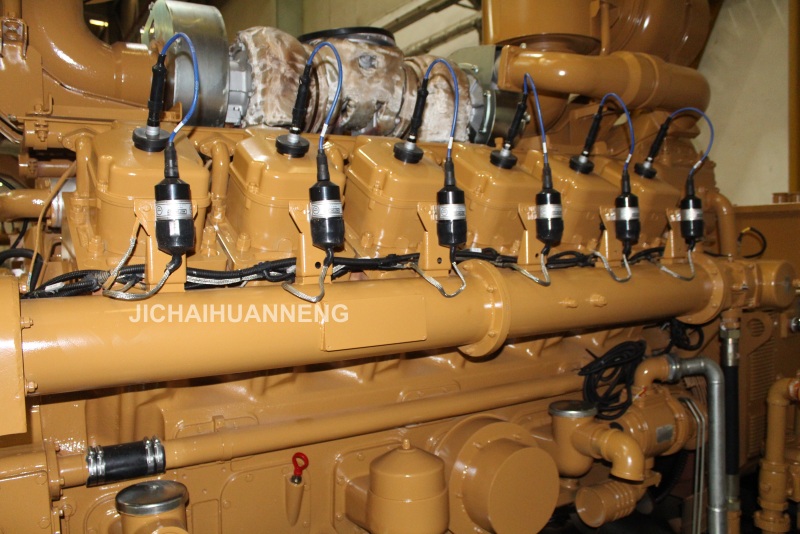

Ignition system includes digital ignition, high pressure wire and spark plug, and all of them belong to famous world make products.
Engine protection system
Including over-speed protection,low oil pressure protection,crankcase anti-explosion protection, air intake pipe anti-explosion protection, etc.
Brushless AC synchronization alternator
Adopting Siemens series alternator, includes stator, rotor, support, AVR auto voltage regulator and droop adjustment device, etc.
Control system
Main Specification Of Gas Generator Set
Model | 600GF-T |
engine model | 12V190ZDT1-2 |
alternator model | IFC6 Series |
rated power | 600KW |
rated capacity | 857KVA |
rated voltage | 600V |
rated speed | 1000rpm |
rated frequency | 50HZ |
rated power factor | 0.7 |
starting | Compressed air starting system |
operation | Remote electric control |
voltage regulation | Automatically |
speed regulation | electric control |
cooling type | closed cooling |
Size （mm） | 6195×2200×2778 |
Weight （kg） | 13000 |
The main electric performance parameter
Steady adjustment rate | Transient adjustment rate | Stabilization time | volatility | |
voltage | ±2.5% | +20%～-15% | 1.5S | 1% |
frequency | 0-5% | ±10% | 7S | 1% |
Engine&Alternator technical specification
Engine | Alternator | ||
model | 12V190ZDT1-2 | model | 1FC6 series |
type | Spark Ignition, intercooler, outer mixing | type | Double bracing motor, brushless,Siemens technology |
Cylinders & arrangement | 12 cylinder， V type and 60°Vee | Rated capacity | 600kW/857kVA |
Cylinder diameter x stroke | 190×210mm | Rated voltage | 600V |
Rated speed | 1000r/min | Rated current | 824.79A |
Rated power | 600kW | Rated frequency | 50Hz |
Heat rate | ≤9800kJ/kW·h | Power factor | 0.7（lagging） |
Oil consumption rate | ≤0.6g/kW.h | Insulation grade | Grade F |
lubrication oil | 15W40CD， recommend KCN7810 | Protection model | IP23 |
Lubricating | pressure and splash lubrication | connecting | 3 phase 4 line |
Speed control | electric governing
| Excited method | Brushless |
Cooling type | forced cooling | Voltage regulation | AVR automatically |
Stabilization speed regulation rate | ≤5％ | Cooling type | Air cooling |
exhaust temperature | ≤650℃(before turbocharger) | ||
