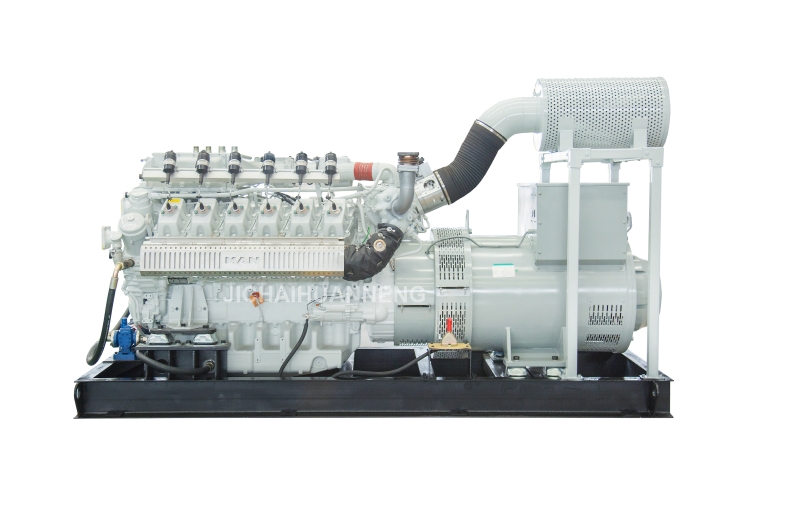

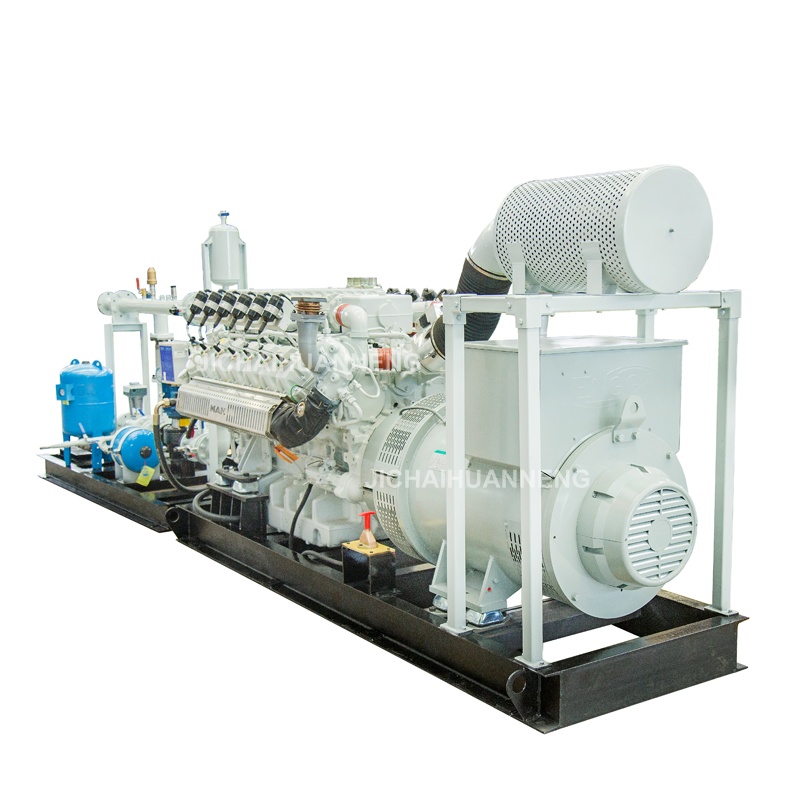

500kW Biogas Generator With MAN Engine

Contact Now E-Mail Telephone

Product Details

MAN Engines offers low-pollution gas engines for purely electrical power generation and cogeneration. The power range extends from 37 kW to 750 kW with natural gas and from 68 kW to 750 kW with special gas (biogas, landfill gas, sewage gas). The MAN engines developed especially for the application with natural and special gas excel through their ultimate reliability and highest energy efficiency. Thanks to their optimum combustion process, they achieve best overall efficiencies in excess of 90 percent.

500KW

Mode of Operation

Variants of Operation Mode
Gas Type	Biogas
Speed	1500 rpm (50HZ)
NOx - Level (with 5% O2 correction)	0.5 g/Nm3

Technical Specification of Genset

Specification of Genset
Model		500GF-N
Rated Power		500kW
Rated Voltage		400V
Rated Frequency		50HZ
Rated Speed		1500 rpm
Power factor		0.8
Specification of Engine
Rated power	550 kW

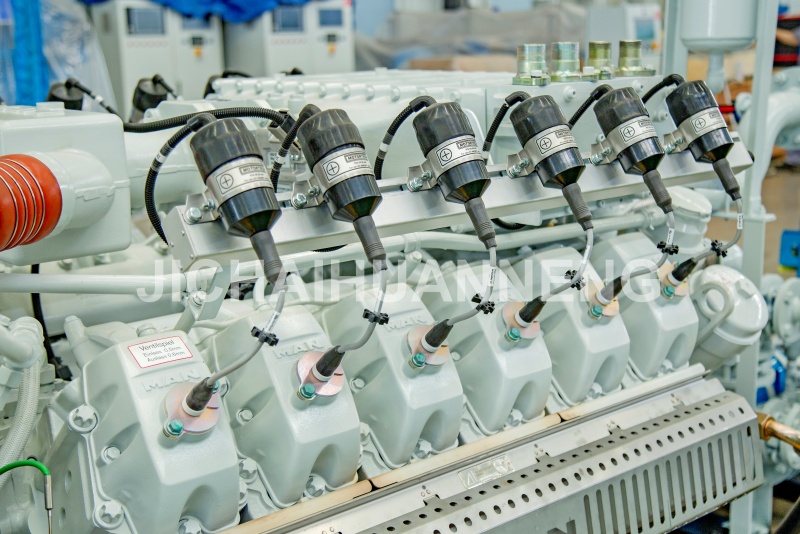

Type	4-stroke gas engine charged with mixture cooling
Rated speed	1500 rpm
Rated frequency	50 HZ
Number of cylinders and layout	12, V 90°
Bore	132 mm
Stroke	157 mm
Compression	12:1
Max. engine torque at rated speed	3502 Nm
Mean effective pressure	17.1 bar
Mean piston speed	7.85 m/s
Specification of Alternator
Rated Power	500kW
Rated Voltage	400V
Rated Current	902A
Frequency	50HZ
Power Factor	0.8
Insulation Class	H
Oil Circuit
Mean oil consumption	80 g/h
Max. permissible lubricating oil consumption	180 g/h
Lubricating oil filling quantity min./max.	70/90 L
*Emissions metric (with 5 % O2 correction, dry)**
Load			%	100	75	50
NOx			g/Nm³	0.50	0.50	0.50
CO			g/Nm³	0.7	0.68	0.67
THC			g/Nm³	0.55	0.61	0.79
TOC (emission without O2 correction acc. to VDI 3481-4)			g/Nm³	0.4	0.45	0.59
HCHO			mg/Nm³	73	85	91
