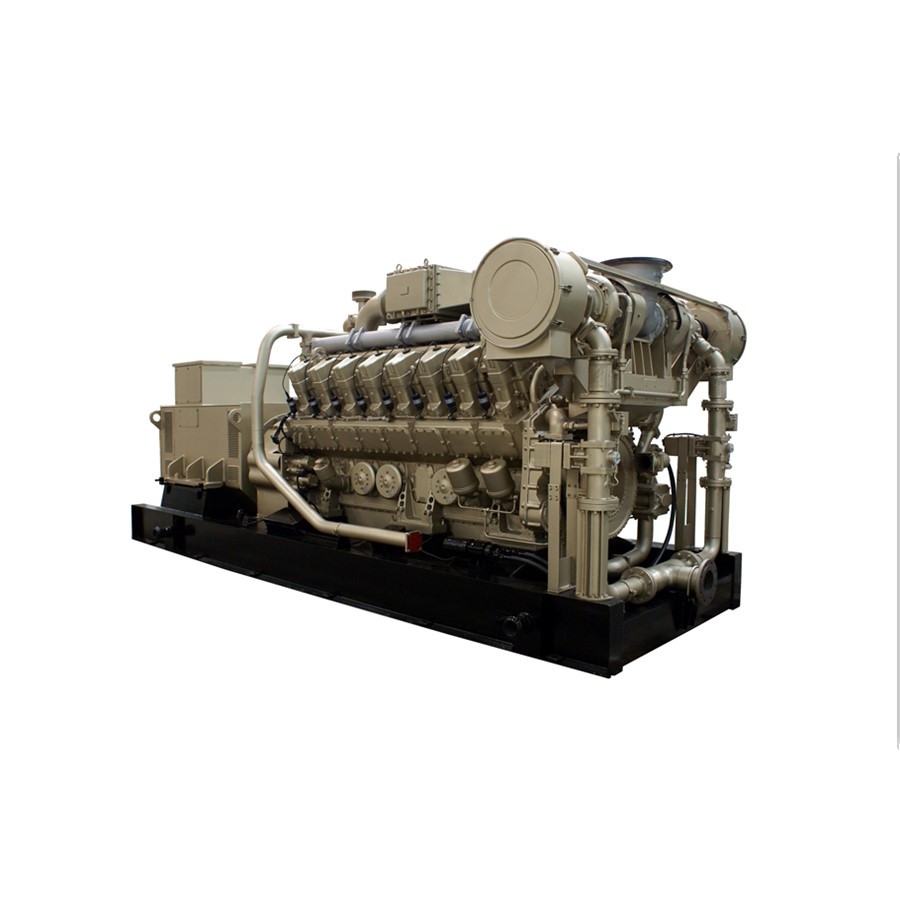

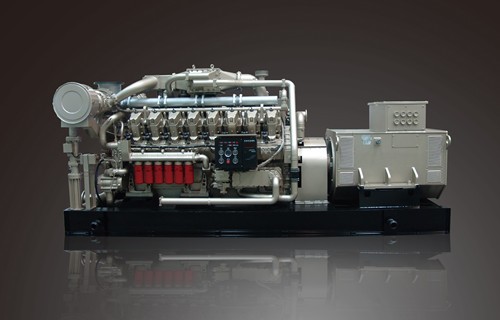

1600kW Biogas Engine Generator
High intelligence, low heat consumption, high reliability, low emissions, long life, high power and high performance.Through the reasonable matching of the intake system and the adoption of the world's most advanced control mode, the engine can adapt to the methane concentration widely, and its power, economy, safety and reliability have reached the international advanced level.
The biogas generator adopts - L20V190ZLT gas engine, which is one type of pretty intelligent, low warmth consumption, excessive reliability, low emission, lengthy lifetime 20V fuel engine,big bore of 190mm ensures its non-stop regular electricity output,middle pace of 1000rpm ensures the provider life.
Genset model | 1600GF-Z |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1600 |
Rated power | 1600KW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%（-15） |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 7500mm*2300mm*2800mm |
Net weight | 29000kg |
Engine model | L20V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 20 |
Bore | 190mm |
Stoke | 255mm |
Total displacement | 144.6L |
Rated speed | 1000r/min |
Rated power | 1750KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤8600kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine） | ≤640℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5 |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | DC24V Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Product Service
1. Develop the most appropriate preliminary format based totally on the unique wishes of the customer
2. Provide engineering sketch and debugging education for users
3. Improve after-sales carrier
