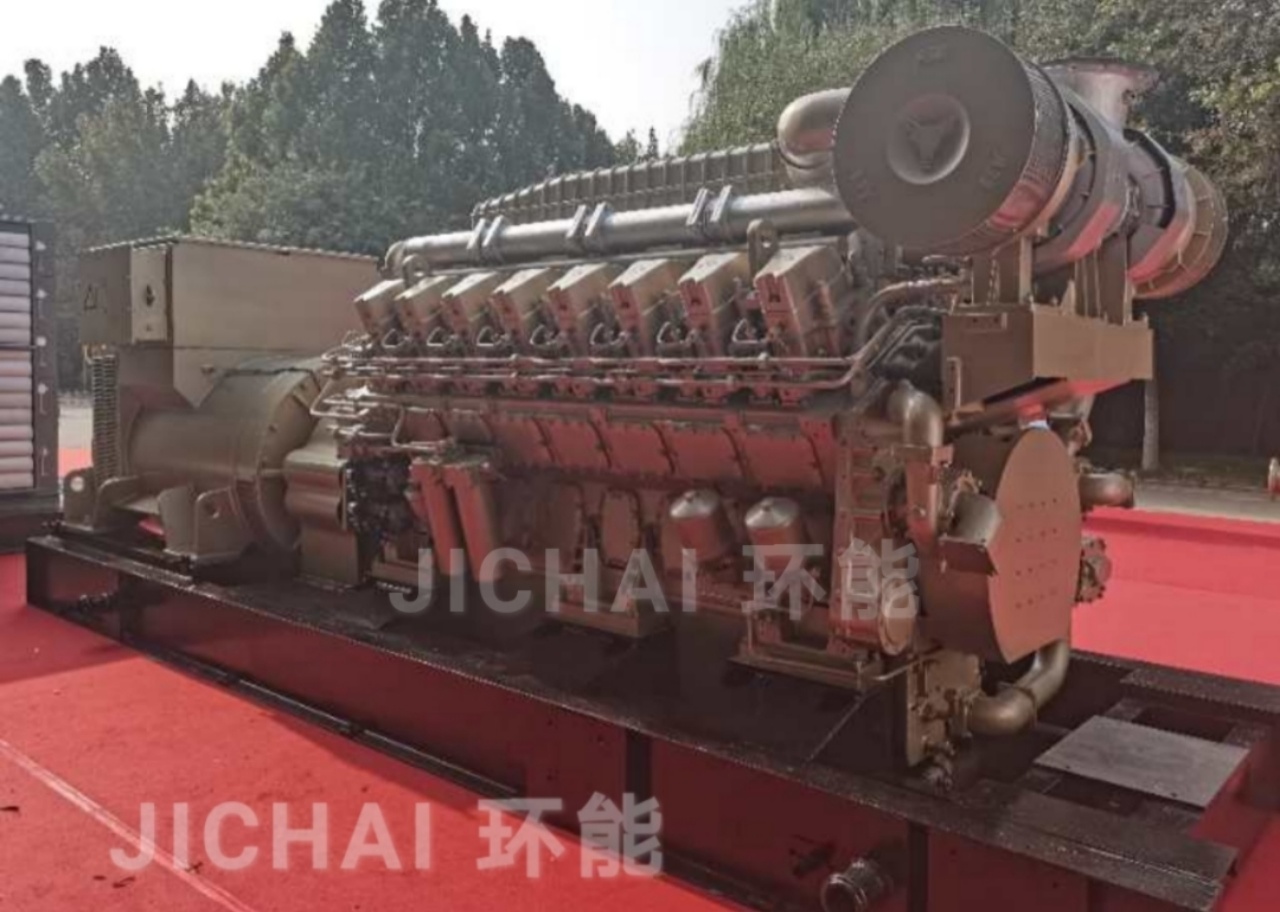

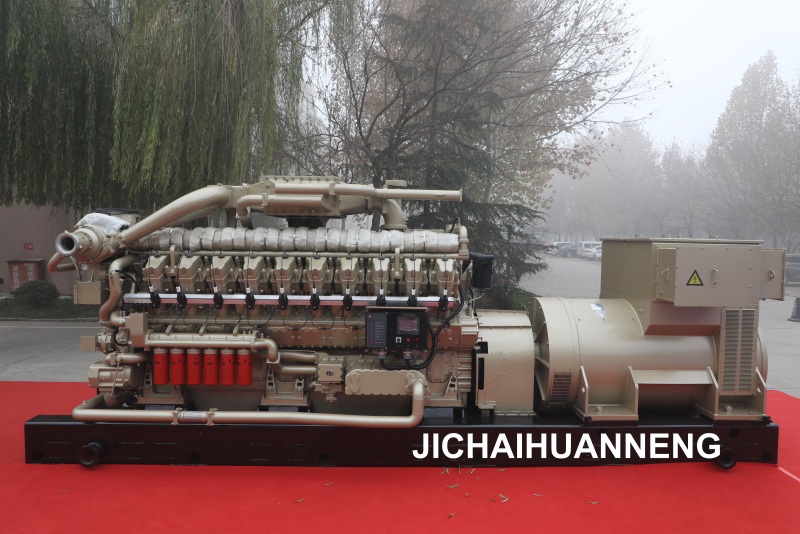

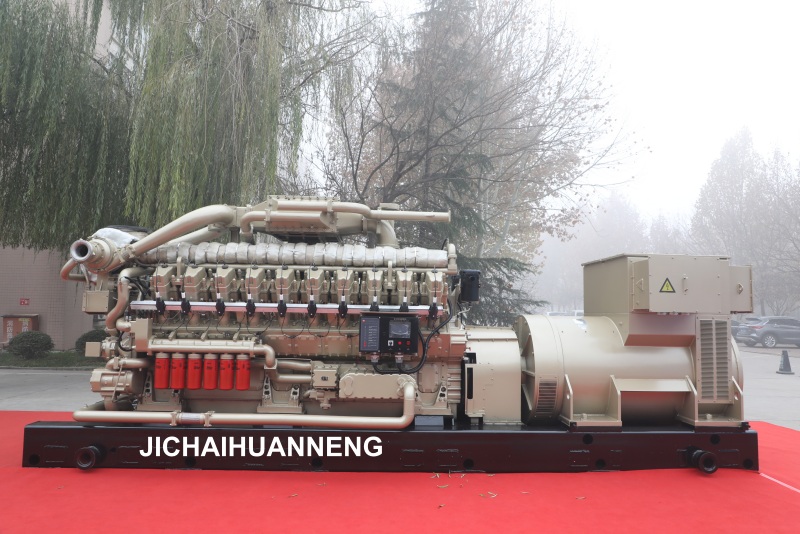

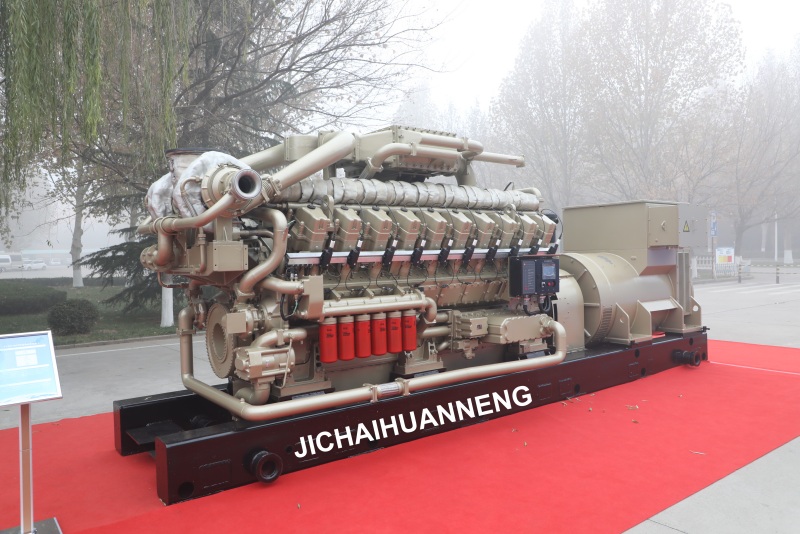

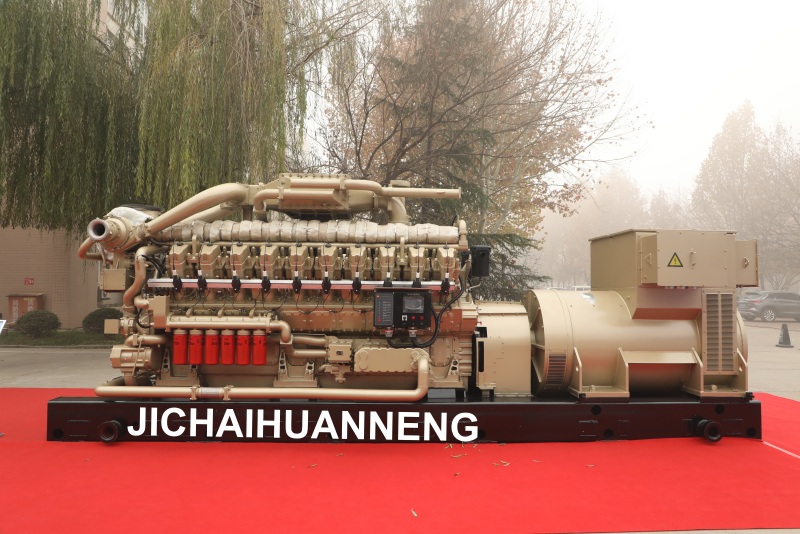

1500kW Biogas Engine Generator
High Efficiency
Environmentally Friendly
Cost-Effective
Easy operation
Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.
Main specification of gas generator
Genset model | 1500GF-T |
Alternator model | Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1500 |
Rated power | 1500kW |
Electrical Efficiency | ≥39% |
Rated voltage | 400V/480V/6300V/10500V/13800V |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Protection Class | IP23 |
Isolation class | H |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 8100mm*2300mm*2800mm |
Net weight | 26700kg |
Main specification of gas engine
Engine model | L16V190ZLZ-2 |
Type | Four strokes,Vshape,turbocharged intercooling，spark plug ignition. |
Number of cyliner | 16 |
Bore | 190mm |
Stoke | 255mm |
Total displacement | 115.7L |
Rated speed | 1000r/min |
Rated power | 1600KW |
Idle speed | 700r/min |
Heat rate | 100-400KPa |
Lube consumption | ≤8770kJ/kW·h |
Oil consumption | ≤0.3g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Lube temperature | <90℃ |
Stabilized speed droop | ≤5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 60000h |

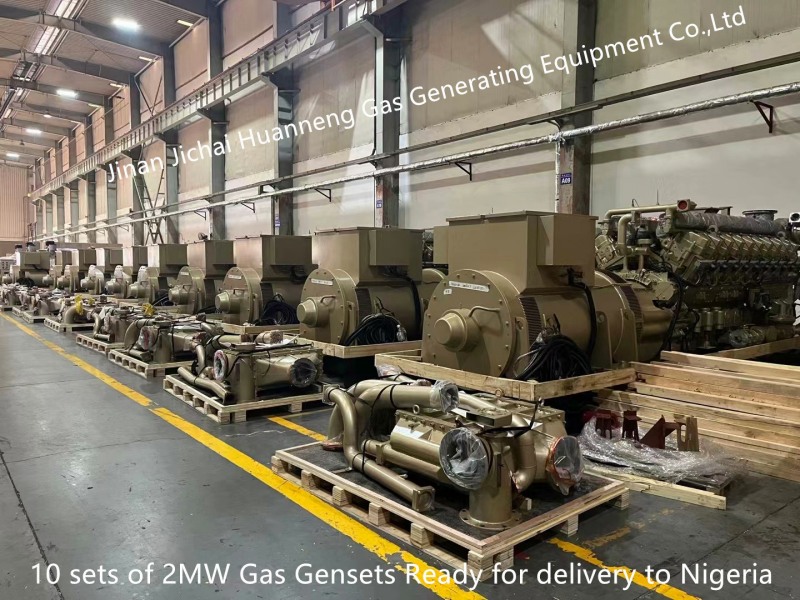

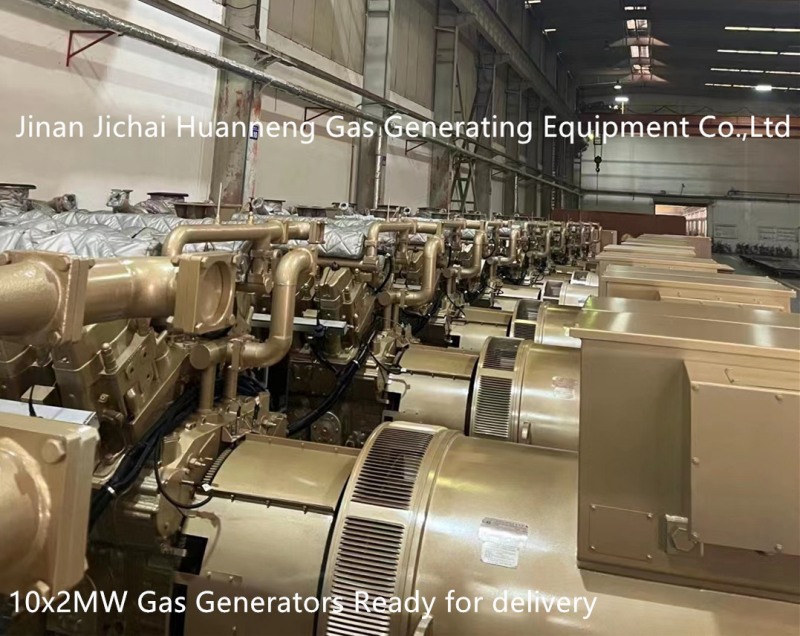

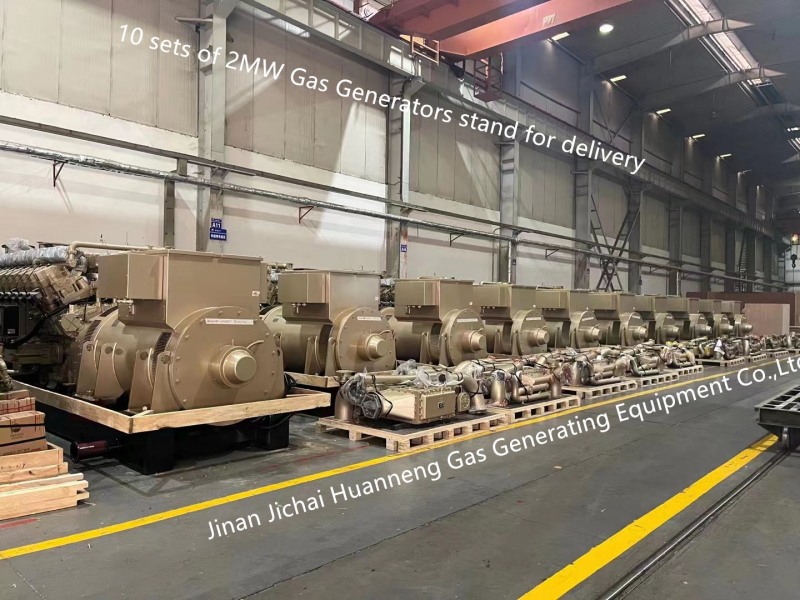

Warehouse
