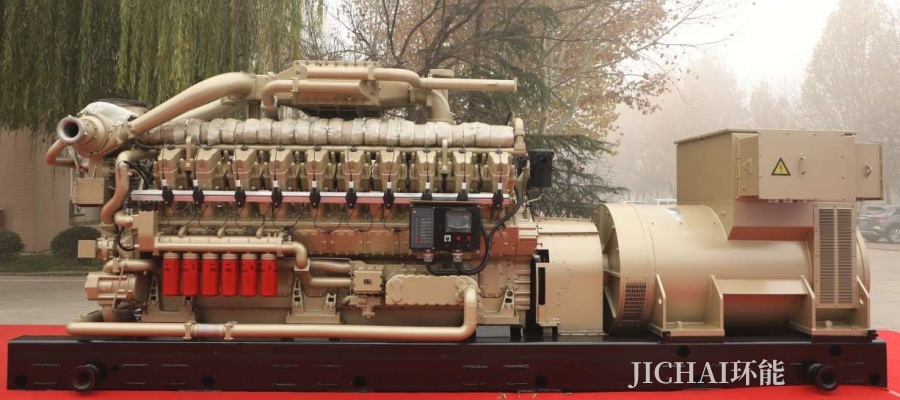

1500GF-Z Biogas generator
· Advanced configuration keep accurate ans stable working condition under high speed working speed
· High generalization, easy maintenance, low maintenance cost.
· Economical, low operating cost
· Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
1500kW biogas generator sets are designed on the groundwork of over one hundred records of western producing set manufacturing, in strictly accordance with ISO rules to produce.It adopts superior high-performance engines, generators, imported steady stress & microcomputer manage gadget to make our merchandise and use excessive water resistant processed technological know-how to occupy the home and overseas markets.
Rated power | 1500kW |
Rated voltage | 400/6300/10500 |
Rated speed | 1000rpm |
Rated frequency | 50Hz |
Type | Four stroke,water cooled,turbocharged and intercooled,spark plug ignition |
Cylinder arrangement | V style 60°included angle |
Number of cylinders | 20 |
Bore*Stroke（mm） | 190*255 |
Rated power factor | 0.8 lagging |
Voltage regulation | Automatic |
Supply connecting | 3 phase 3 wire |
Control model | EGS-06 electric governor（WOODWARD） |
Starting method | 24V DC electric starting motor |
Cooling method | Flat bed radiator or cooling tower |
Engine model | L20V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 20 |
Bore | 190mm |
Stoke | 255mm |
Total displacement | 144.6L |
Rated speed | 1000r/min |
Rated power | 1500KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤8770kJ/kW·h |
Oil consumption | ≤0.3g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5 |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | DC24V Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
After Sale Service
1. Professional engineers supply pre-sales technical session for users
2. Cooperate with customers to deploy and debug the generator set
3. Maintenance engineers are on hand to furnish technical help at any time
Packing Delivery
We normally undertake transport through way of bulk cargo, container, packing Standard export packing, or customized packing as your request. We will put together the most comparatively inexpensive transportation mode in accordance to the quantity of products. All merchandise have lengthy previous with the aid of strict inspection and are in pinnacle scenario before than shipment. We try for a hundred percentage purchaser pleasure on every sale we close.
