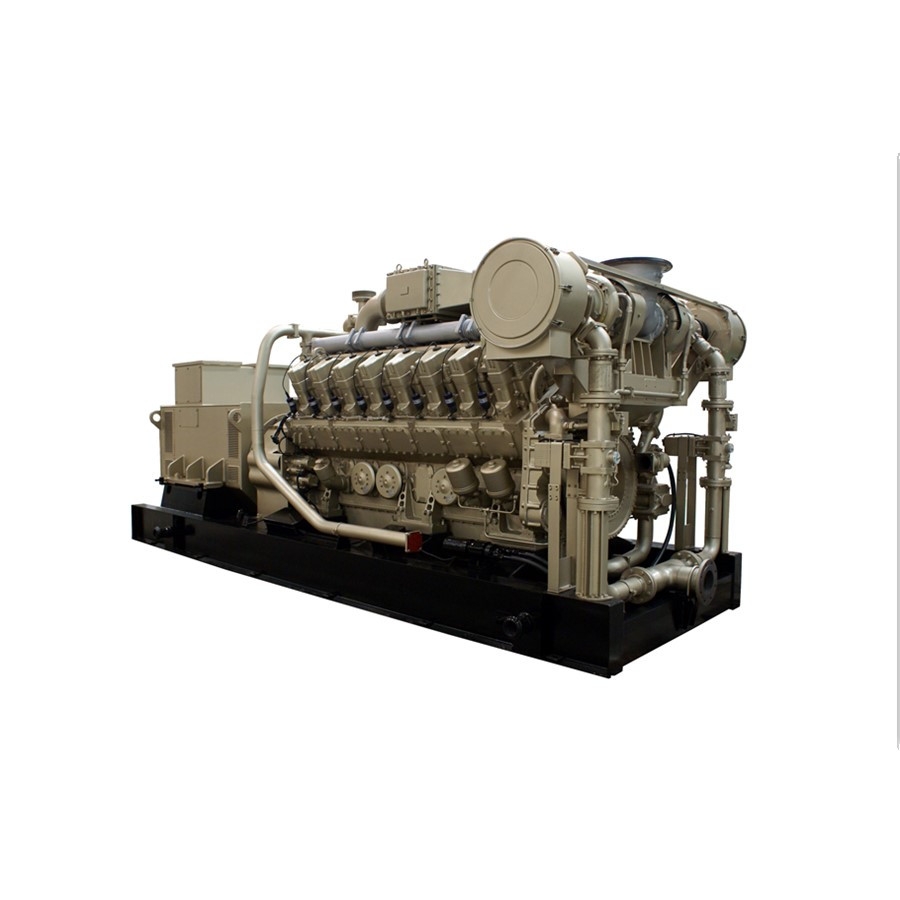

1375kVA Biogas Engine Generator
Intelligent, low warmness consumption, immoderate reliability, low emission, prolonged lifetime 16V gas engine,big bore of 190mm ensures its continuous everyday electrical energy output,middle tempo of 1000rpm ensures the service life.
Genset model | 1100GF-Z |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1100 |
Rated power | 1100KW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%（-15） |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 6000mm*2300mm*2800mm |
Net weight | 17000kg |
Engine model | G16V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 16 |
Bore | 190mm |
Stoke | 215mm |
Total displacement | 97.53L |
Rated speed | 1000r/min |
Rated power | 1200KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤8850kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5 |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | DC24V Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
A
Packing&Delivery
1) Gas engine generator would be protected with plywood containers ;
2) Control panel, batteries, electric powered cables are packed with plywood containers or cartons;
3) Exhaust pipes, engine mufflers are put in the container barring packing.
Production line
1、Advanced generator production and assembly equipment
2、High precision machining of 5C parts
3、International cooperation in professional components
4、Precision final assembly
5、Advanced experimental methods
